page 20 — sTxd6i RIde-ON TROWeL• OpeRaTION maNuaL — Rev. #0 (03/23/12)
baSic enGine
1
3
4
5
6
8
10
12
13
14
15
11
9
2
7
16
16
19
20
21
17
18

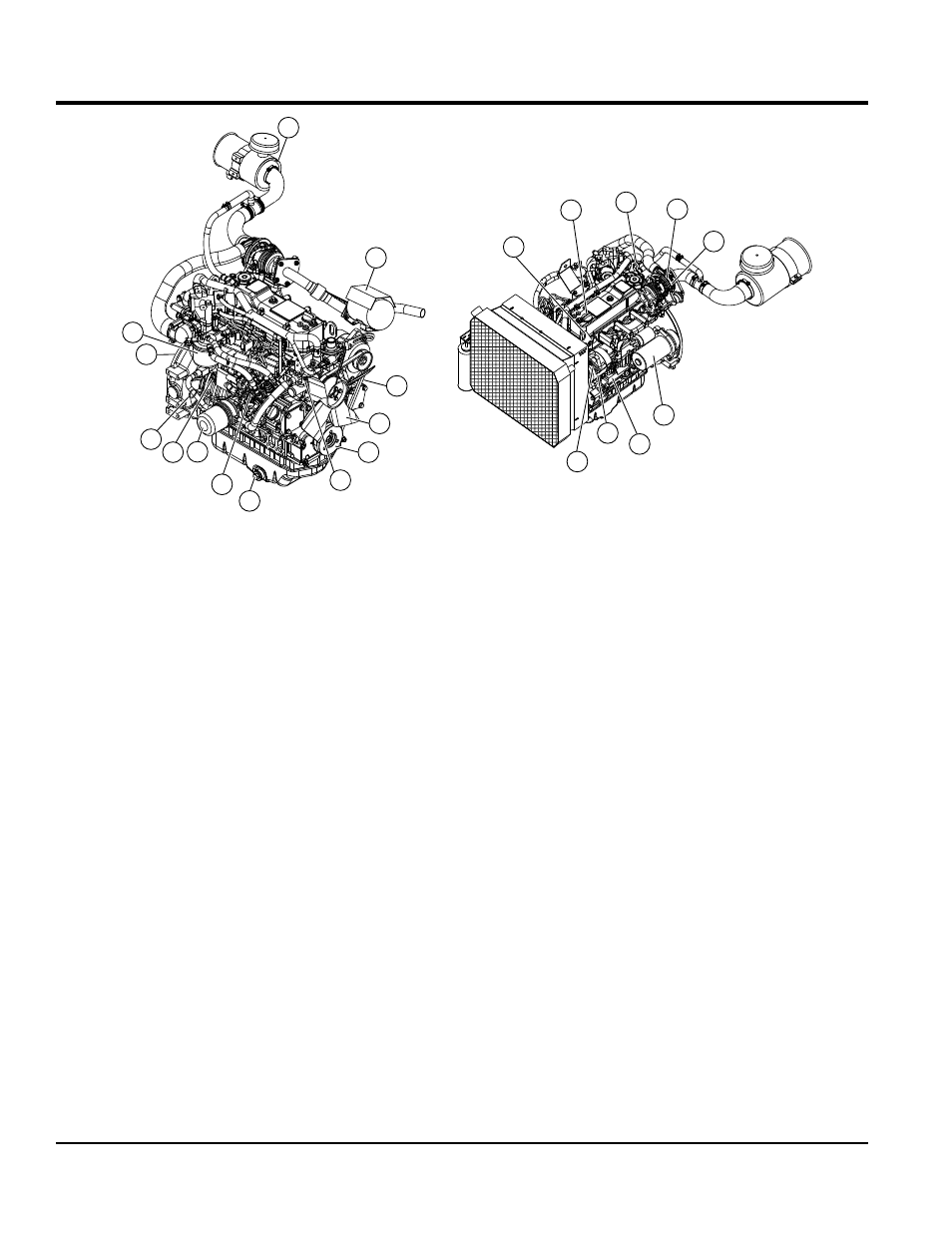

Figure 6. Basic Engine
1. air filter — Helps provide clean source of air flow to
turbocharger and engine.
2. muffler — Exhaust gases routed through here.
3. fan belt — Driven by the engine crank during
operation, drives the water pump/fan as well as the
alternator.
4. cooling fan — Driven by the V-belt, the cooling fan
cools the engine by cooling water/antifreeze mixture
that circulates through the engine block and cylinder
head.
5. crankshaft v-pulley — Check fan V-belt between
V-Pulley and alternator to determine proper belt
tension.
6. Water pump — Circulates coolant flow through engine.
7. Oil filler port — Remove to add fresh crankcase oil.
8. Oil drain plug — Remove plug to drain crankcase oil.
9. Injection pump — Provides equal fuel flow to injectors.
10. Oil filter — Spin-on type, filters oil for contaminants.
11. Oil pressure switch — Monitors oil level.
12. Oil dip stick — Remove to check amount and
condition of oil in crankcase.
13. ecO governor — Controls engine rpm.
14. flywheel — Main power is taken off from flywheel end.
15. fuel filter — Removes dirt and water from the fuel.
16. Lifting eye — Two lifting eyes are provided if the
removal/installation of the engine becomes necessary.
17. air Intake port — Provides air from the air cleaner to
the turbocharger unit.
18. Turbocharger — Provides pressurized intake air to the
cylinder by means of a turbine energized by exhaust
gas that rotates the blower.
19. starter — Starts engine when ignition key is rotated
to the "START" position.
20. alternator — Provides current to the electrical
system and charges the battery. Driven by means of
a crankshaft/V-belt pulley system.
21. fan Belt Tension adjustment — This bolt provides
means to adjust the V-belt tension at the alternator
bracket.
