sTxd6i RIde-ON TROWeL • OpeRaTION maNuaL —Rev. #0 (03/23/12) — page 19

cOMpOnentS

17.

pitch mode switch — Sets the mode of operation of

the blade pitch system to either auto or manual.

18.

fuel pump— Provides fuel flow to injection pump.

19.

Blade pitch control (Twin pitch) — Adjusts the pitch

on both rotors simultaneously but non-synchronously.

20.

Blade pitch control switch (left side) — Adjusts the

left side blade pitch independently of the right side.

21.

hydraulic Reservoir — Part of frame. Holds hydraulic

oil necessary for pump operation.

22.

spray Nozzles — Spray nozzle for retardant. Two spray

nozzles are supplied with this unit.

23.

Overflow Bottle — (Behind grill guard.) Supplies water

or coolant to the radiator when radiator water or coolant

level is low. Fill to indicated level as shown on bottle.

24.

fuel gauge/filler cap — Indicates the amount of fuel

in the fuel tank. Remove this cap to add fuel.

25.

Toolbox compartment — Storage for tools.

26.

fuse Box — Contains fuses for control electronics.

27.

Relays — Relays for lights and safety bypass switch.

28.

Light switch — When activated, turns on six halogen

lights. Lights offer better visibility when working indoors

29.

steering control (left side) — Allows the unit to move

in a forward or reverse direction only.

30.

steering control (right side) — Allows the unit to

move in either a forward, reverse left or right direction.

31.

grill guards (left and right) — Protects operator from

moving components. Remove for maintenance access.

32.

documentation canister — Storage for documentation

and other information regarding the trowel.

33.

Battery — Provides +12V DC to the electrical system.

34.

hydraulic Oil filler cap — Remove this cap to add

hydraulic oil. Open ONLY when system is cooled down

and all expanded oil has returned to the reservoir.

35.

hydraulic Oil sight glass — Indicates the level of the

hydraulic oil in the reservoir.

36.

hydraulic suction filter — Filters hydraulic fluid prior

to entering the system.

(10 Micron absolute synthetic media.)

37.

Retardant spray Tank — Holds 5 gallons of retardant,

water, or other liquid.

38.

hydraulic Oil expansion Tank — Accommodates

expanding hydraulic oil as it gets hot. The oil gravity

flows back to the reservoir as it cools down, therefore

NeveR open the Hydraulic Oil Filler Cap when the

system is warm and the oil has expanded.

39.

safety Bypass switch — The trowel will not move

unless an operator is sitting on the seat. The weight

of an operator activates the switch allowing the rotors

to turn.

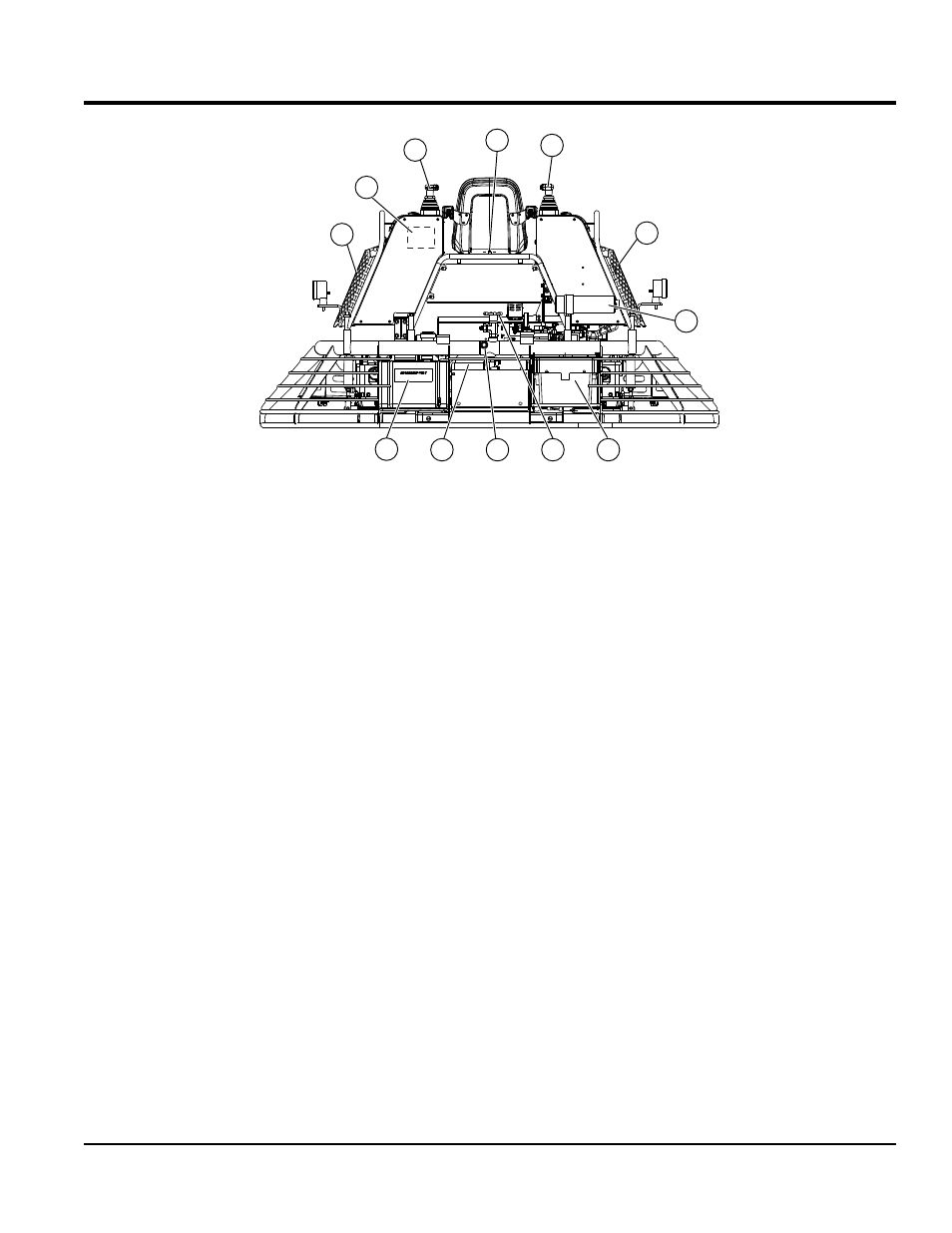

Figure 5. Components (Rear)

31

38

29

30

39

31

32

36

33

34

37

35
