Page 3

Picture 2

Cut Mount Here

Picture 1

Picture 3

MVM MODIFICATION INSTRUCTIONS

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••

MVM Instructions |

Page 2

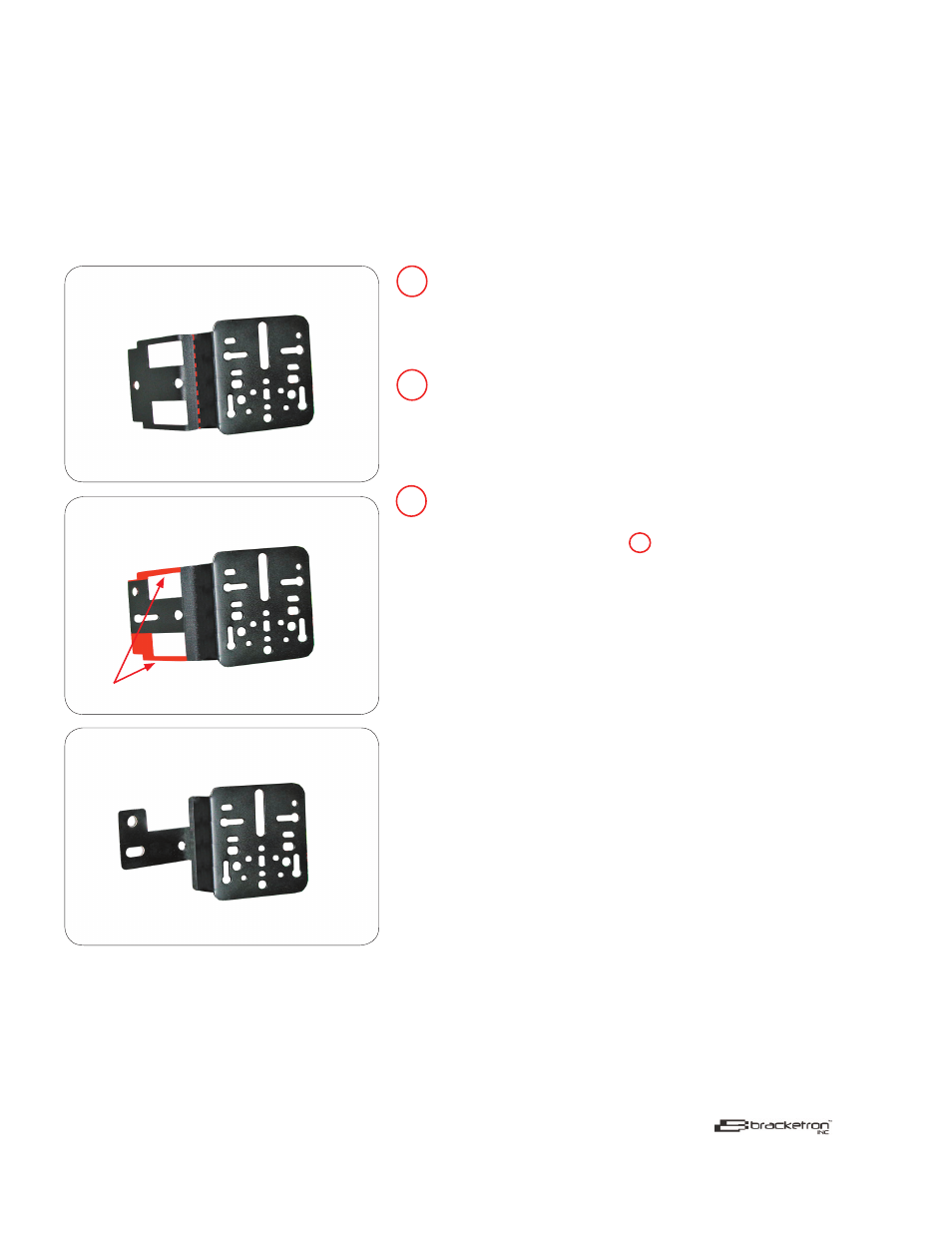

Begin forming the Multi Vehicle Mount by bending the Multi Vehicle

Mount along the dotted red line. See picture #1. This will give you a ﬂ at

surface to work with. Smooth out with a ﬁ le if necessary. Note: You do

not want any sharp edges.

Continue by cutting away the red parts of the Multi Vehicle Mount with a

tin snips. At this point, your mount should look like the image in picture

#2. Bend the bracket at a near 90 degree angle so that it is ﬂ at along the

backside. Note: It is easiest to bend the bracket with your hands, then use

a small hammer to ﬂ atten to perfection.

After this step, your bracket should look like picture #3 below. When it

is bent at a near 90 degree angle, smooth out the edges so there are

no sharp points. Use a crackle coated paint if you have damaged any

exposed areas. Now go back to on the previous page to continue

your installation.

The Bracketron MVM-15-05 mount is a modiﬁ able mounting bracket. The illustrations on the left show how this mount should

look during and after the modiﬁ cation steps in order to ﬁ t the listed vehicles on the front page of this manual.

Many vehicle

applications may not require any modiﬁ cations to the mount. If this is the case it will be noted below and there will be no steps

to follow on this page.

PLEASE NOTE

The information in this document is subject to change without notice. Bracketron Inc. assumes no responsibility for any errors that may appear in this document nor

do we assume any liability in connection with its use. This supersedes and voids all previous literature. Please contact the sales department for additional information.

Bracketron Inc will not be responsible or liable for damage to vehicles in the installation and or removal of this Bracketron Inc mount. Bracketron Inc will not be liable

for personal injuries or damage to property resulting from a motor vehicle accident and or improper installation of this Bracketron Inc mount.

Note:

Please see page 3 in this manual for PHS-

203 Ultra Slim Swivel Instructions.

Bracketron Inc

5249 West 73rd Street, Suite G, Edina, MN 55439

tel:

952-746-7775

fax:

1-800-660-1784

toll free:

1-866-237-4443

email:

[email protected]

web:

www.bracketron.com

Note:

The hole pattern on the face of the MVM maybe

different then what is shown in the pictures.
