IMPORTANT INFORMATION

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••

MVM Instructions |

Page 1

IMPORTANT INFORMATION
Please read instructions completely before installing this Bracketron MVM Mount. All instructions are written from the drivers

seat vantage point looking forward at the vehicles dash. We advise caution whenever you are removing or handling plastic

parts of a vehicles dash.

WARNING:

Unnecessary force or pressure can cause pieces to crack or break.

PARTS INCLUDED: MVM-15-05 Mount, 3- #8x3/4” Self Tapping Screws PHS-203 Ultra Slim Swivel, and Hardware

TOOLS NEEDED FOR MVM MODIFICATION (if required)

4 inch Mounted Bench Vise

12 oz. Ball Pein Hammer

Standard Tin Snips

Small File

TOOLS NEEDED FOR DASH PANEL DISASSEMBLY

Dash Trim Tool (Part #SIT-104)

# 2 Phillips Screwdriver

Fiskars 8511 Craft Hand Drill (recommended)

5/64” Drill Bit

9/32” Open End Wrench (for swivel)

Marking Pen

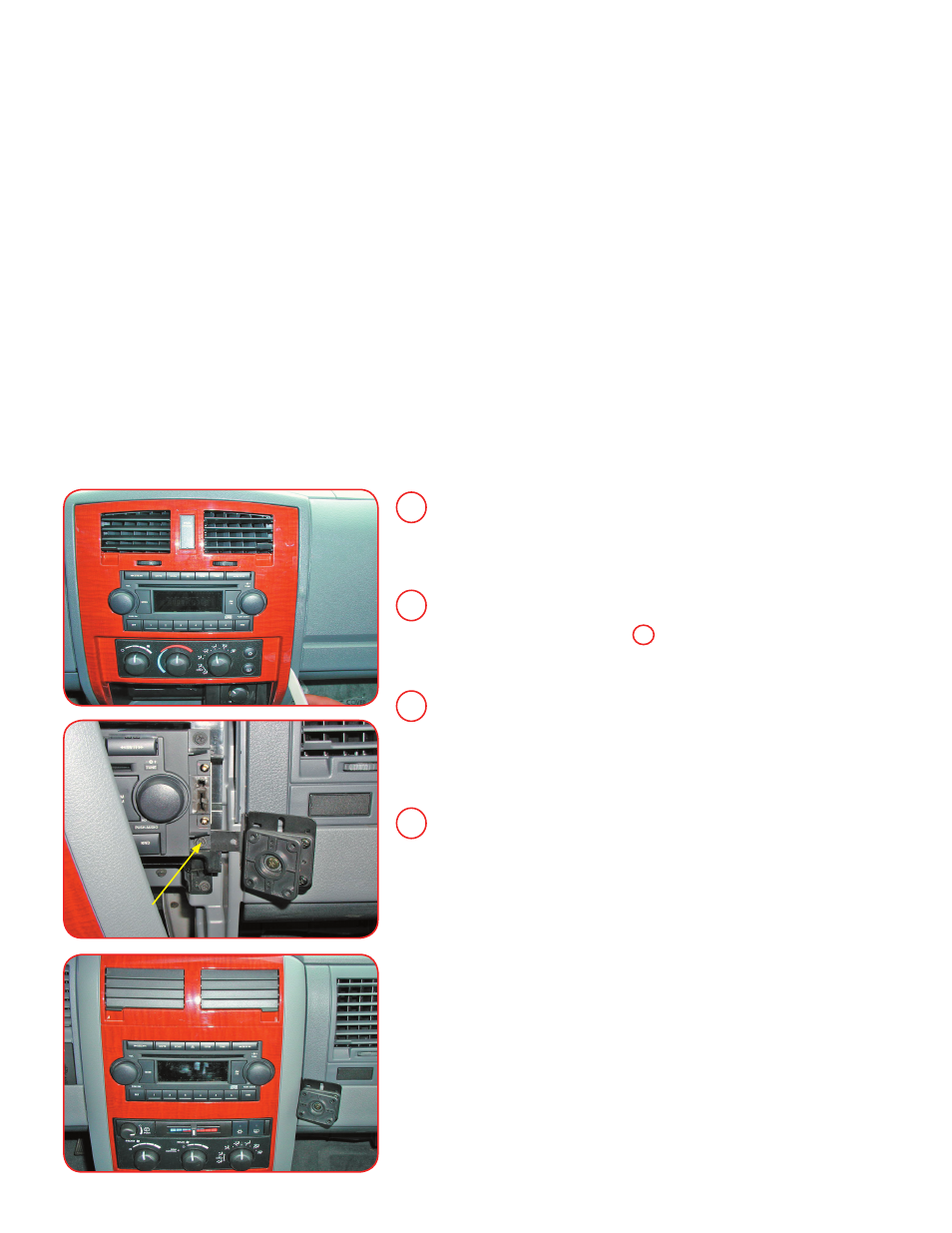

DASH DISASSEMBLY INSTRUCTION

Locate and remove two 9/32” screws from under the power outlets. Set

screws aside in a safe place. Continue by using the Dash Trim Tool (Part

#SIT-104) to pry loose four clips. There are two on each side of the dash

bezel.

When the dash bezel is released from all clips, remove the wiring from

the climate control system and emergency ﬂasher switch. Remove any

other wiring if necessary. Skip to

if you have not yet formed the

bracket to ﬁt your vehicle.

Locate and remove the four screws that secure the radio. Set the screws

aside in a safe place. Pull radio out just far enough to slide the Multi

Vehicle Mount behind the lower right radio mounting tab. Make sure

Multi Vehicle Mount is pressed ﬁrmly against the right side of the dash

before you tighten down the four screws.

Carefully reinstall the dash in reverse order securing all screws and clips

to the bezel. Install the included Ultra Slim Swivel #PHS-203 to your Multi

Vehicle Mount or any other AMPs compatible device.

Your installation is complete

Install Mount Here

Note:

The hole pattern on the face of the MVM maybe

different then what is shown in the pictures.
