PAGE 36 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

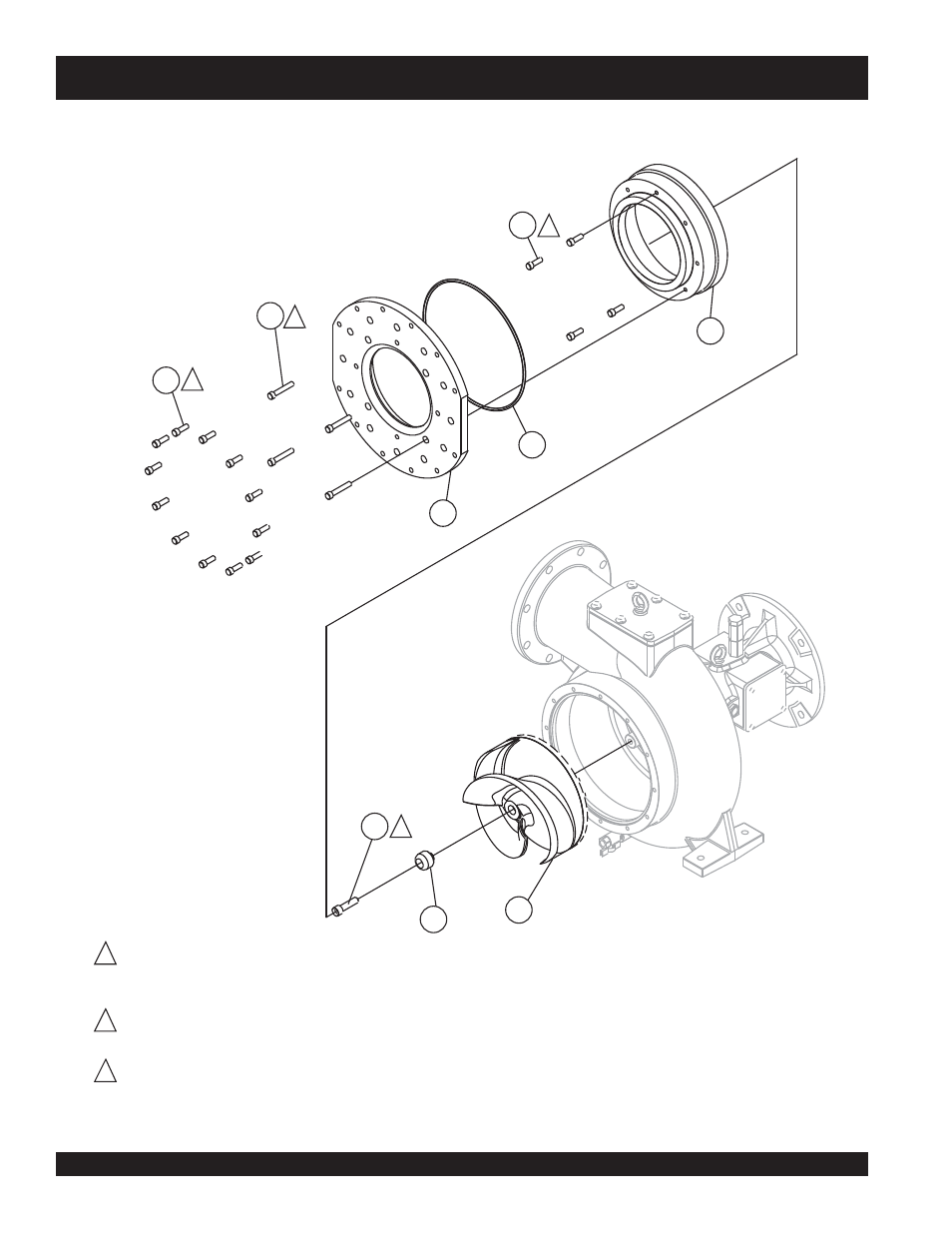

IMPELLER AND WEAR PLATE ASSY.
IMPELLER AND WEAR PLATE ASSY.
6
1
3
4
2
7
5
8
5
2
1
2
3
USE THREADLOCK: HIGH TEMP.
LOCTITE BLUE 246 OR EQUIVALENT.
TORQUE TO 60 FT-LBF (81.3 N-m)
USE ANTI-SEIZE OR EQUIVALENT
TORQUE TO 60 FT-LBF (81.3 N-m)
1
2
USE THREADLOCK: HIGH TEMP.
LOCTITE RED 272 OR EQUIVALENT.
TORQUE TO 250 FT-LBF (338.9 N-m)
3
