PAGE 18 — MVC98D2 PLATE COMPACTOR — OPERATION AND PARTS MANUAL — REV. #1 (1/12/11)

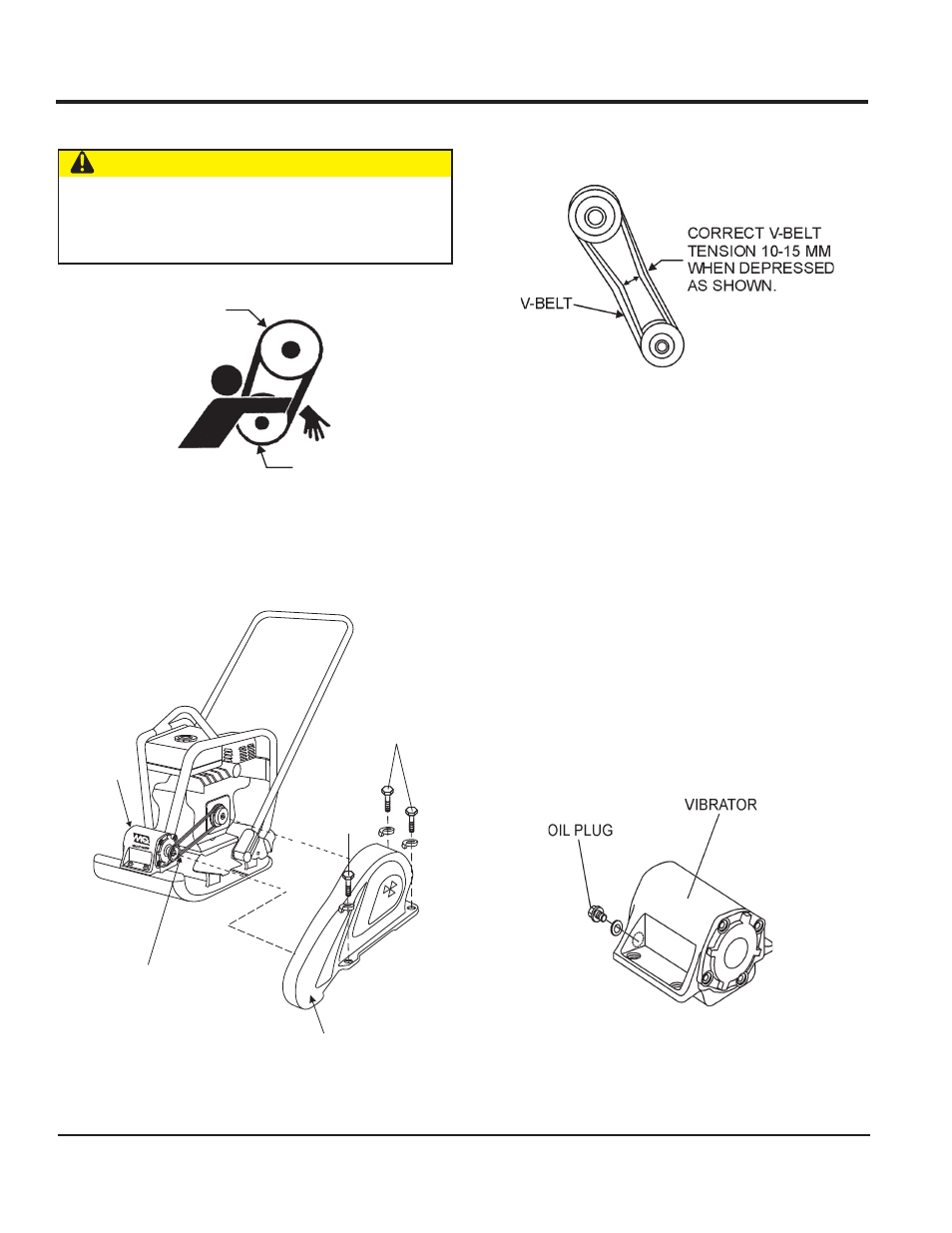

2. The V-belt tension is proper if the V-belt bends 10 to 15 mm
(Figure 9) when depressed with finger at midway between
the clutch and vibration pulley shafts.
CLUTCH
PULLEY
VIBRATOR
PULLEY
V-Belt Check
Figure 7. V-Belt Hazard
1. To check the V-belt tension, remove the three bolts that
secure the belt cover to the frame as shown in Figure 8.
Figure 8. V-Belt Cover Removal
3. A loose V-belt will decrease the power transmission output,
causing reduced compaction and premature wear of the
belt.
4. If the V-belt becomes worn or loose, replace it. See
maintenance section.
Figure 9. V-Belt Tension
Figure 10. Vibrator Oil Plug
Vibrator Oil Check
1. Place the MVC98D2 plate compactor horizontally on a flat
surface. Make sure the compactor is level when checking the
oil in the vibrator assembly.
2. Check vibrator oil level by removing the plug (vibrator oil gauge)
as shown in Figure 10. The oil level should be up to the oil plug.
The vibrator holds 140 cc (approximately 4 oz.). IMPORTANT,
if oil is required, replace using only SAE10W-30 motor oil.
Mikasa
VIBRATOR
REMOVE
REMOVE
V-BELT
V-BELT COVER
INSPECTION
NEVER attempt to check the V-belt with the engine running.
Severe injury can occur of your hand (Figure 7) gets caught
between the V-belt and the clutch. Always use safety gloves.
CAUTION
