P33/24 HHM-HHMR — PARTS MANUAL — REV. #2 (06/13/08) — PAGE 84
Position 1:
Drive Left Forward
Position 2:
Drive Left Backward
Position 3:
Drive Right Forward
Position 4:
Drive Right Backward
Position 5:
Vibration Forward
Position 6:
Vibration Backward
Position 7:
High Speed
Position 8:
Cockpit
Position 9:
Starter Switch
Position 10:
Generator Control
Position 11:
Oil Control
Position 12:
Inclinometer Indicator
Position 13:
Hour Meter
Position 14:
Socket Plug Helix Cable
Position 15:
Helix Cable
Position 16:
Manual Control Unit
Position 17:
Fuse Switch
Position 18:
Valve, Motor Controlling mode
Position 19:
Pre-amplifier
Position 20:
Shut-Off Solenoid
Position 21:
Oil Pressure Switch
Position 22:
Starter
Position 23:
Battery
Position 24:
Regulator
Position 25:
Alternator
Position 26:
Central Ground
Position 27:
Central Fuse
Position 28:
Engine
Position 29:
Oil Tank Ground
Position 30:
Starter Switch
Position 31:
Protective Cap
Position 32:
Starter Switch Key
Position 33:
Coupler
Position 34-39:
Cable Bracket
Position 40-41:
Strain-Relief
Position 42:
Minus Clamp
Position 43:
Plus Clamp
Position 44:
Deutsch Connector
Position 45-47:
Contact
Position 48:
Fuse Holder
Position 49:
Valve Connector
Position 50:
Screw
Position 51:
Gasket
Position 52-58:
Connector
Position 55-60:
Bearing Bush
Position 53, 56, 59, 61:
Pin Protection
Position 54, 57, 62:
Pin
Position 63:
Wiring Harness
Position 64-65
Ground Cable

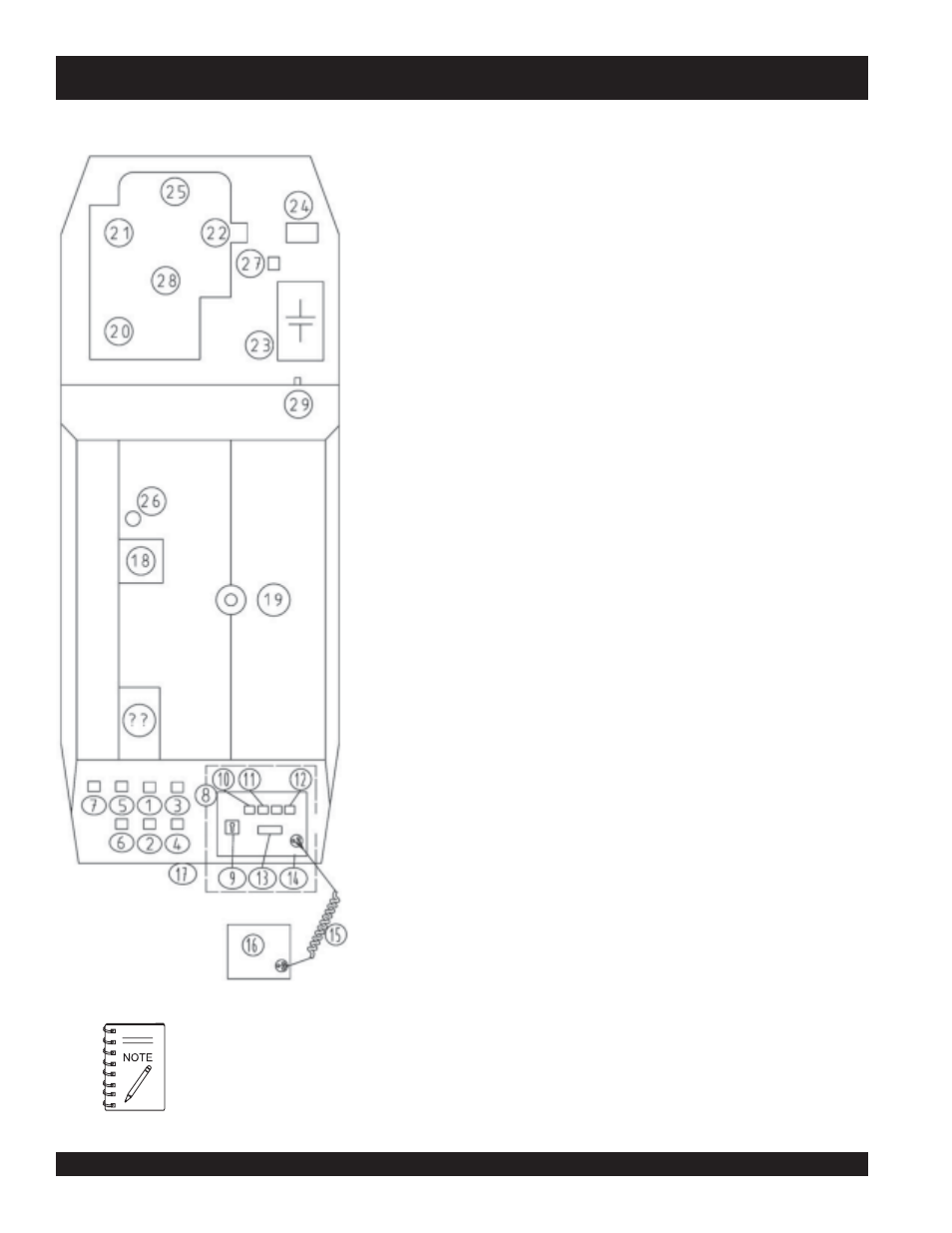

P33/24 HHMR — ELECTRICAL COMPONENT LOCATOR
ELECTRICAL COMPONENT LOCATOR (P33/24 HHMR)
See next page for corresponding
wiring schematic.
