P33/24 HHM-HHMR — PARTS MANUAL — REV. #2 (06/13/08) — PAGE 82

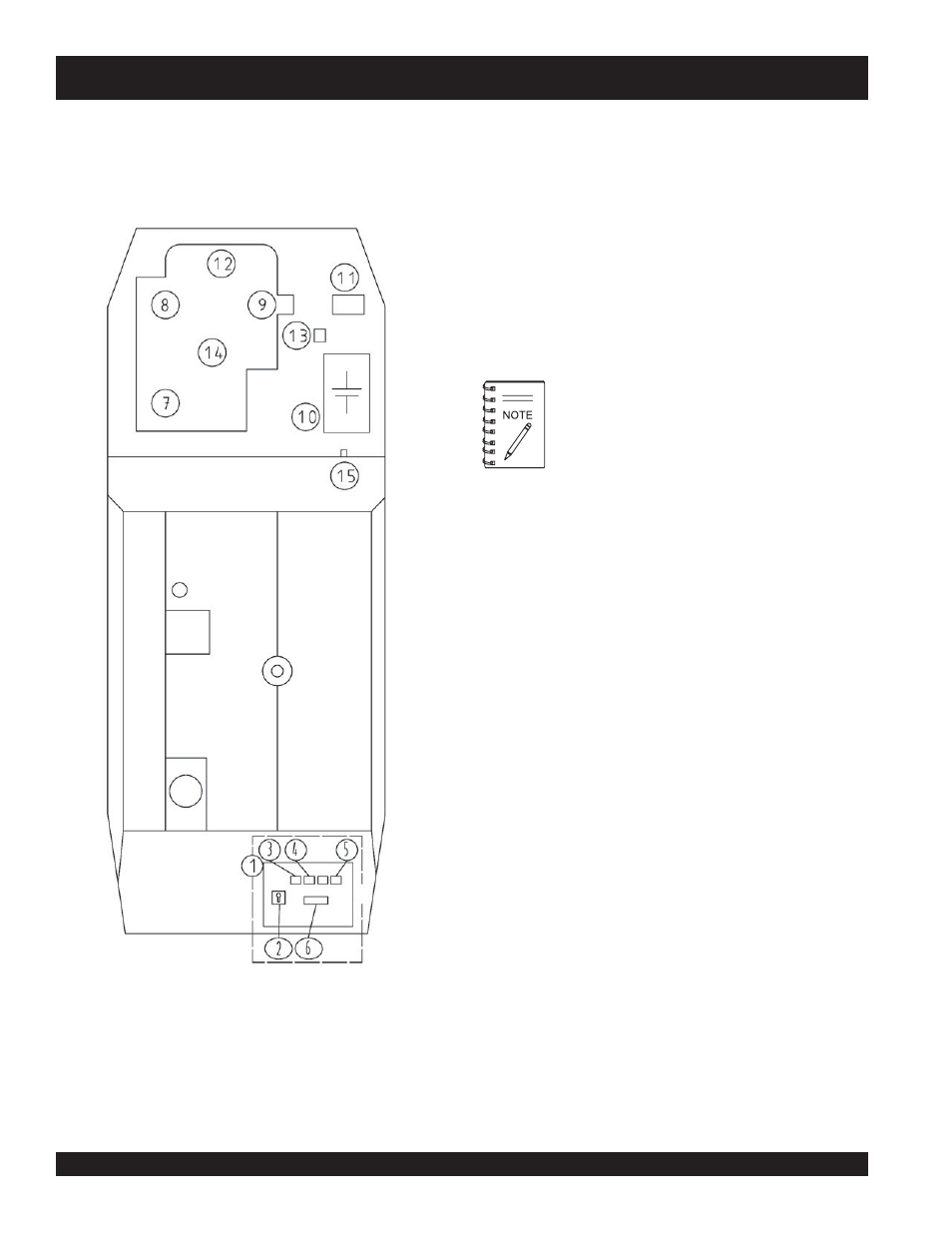

ELECTRICAL COMPONENT LOCATOR (P33/24 HHM)
See next page for corresponding
wiring schematic.
Position 1. Cockpit
Position 2. Starter Switch
Position 3. Generator Control
Position 4. Oil Control
Position 5. Inclinometer Indicator
Position 6. Hour Meter
Position 7. Shut-Off Solenoid
Position 8. Oil Pressure Switch
Position 9. Starter
Position 10. Battery
Position 11. Regulator
Position 12. Alternator
Position 13. Central Fuse
Position 14. Engine
Position 15. Oil Tank Ground
P33/24 HHM — ELECTRICAL COMPONENT LOCATOR
