Purenex Multipure Aquaversa for model MP750SB - Manual (Page 4)

C o n n e c t c l e a r t u b i n g t o p l u m b i n g - - O p t i o n A o r B
Item # Part # Part Description
1 MC650 Faucet assembly with blue tubing
attached
2 MC232 Clear tubing -connects inlet adapter to
plumbing
3 MC720 Small Outlet adapter - connects to blue
tubing attached to faucet
4 MC730 Large Inlet adapter - connects to clear
tubing
5 MCL500 Housing top
Item # Part # Part Description
6 MC253BS V-band with knob
7 CB6 Carbon Block Filter
8 MC351 O-ring
9 MCB750 Housing bottom
10 MC930ASBL Adapta Valve assembly
11 MC722 Tubing adapter
12 MC252 Black Rubber Cushion (inside housing top)
13 MC780 Wing nut
14 MC126 Bracket (not shown)
tubing
from faucet
v-band
knob
4
5
9
8
7
6
3
12
13
4
2
cold cold
sink sink
riser
Adapta Valve
1/2” configuration
1/2” slip joint nut
No slip joint nut at
angle stop valve
angle stop valve angle stop valve
Water supply line with
Adapta Valve in 3/8” configuration
Water supply line with
Adapta Valve in 1/2” configuration
A.
B.
riser
1/2” slip joint nut
3/8” slip joint nut
Adapta Valve
3/8” configuration

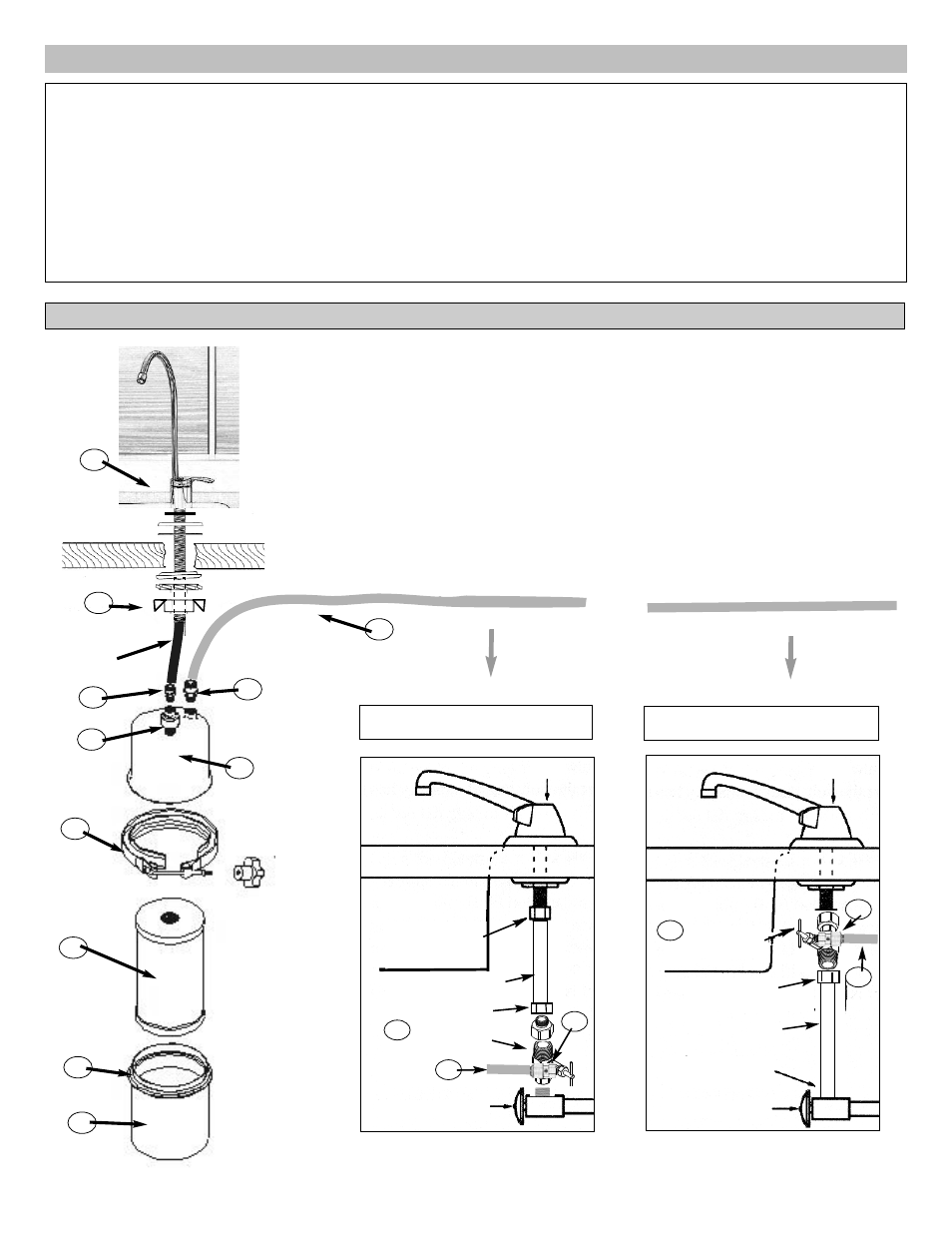

MP 750SB Installation Overview & Part Numbers I.B.
OR
2
2
11
11
10
10
1
