TROLLING MOTOR INSTALLATION AND OPERATION
eng
23
Speed Control—Cable Steer Models
FIVE-SPEED AND VARIABLE SPEED MOTORS
Foot operated motors are five‑speed models. Control the speed of your motor by
rolling the speed control knob with your hand or foot until you reach the desired
speed.

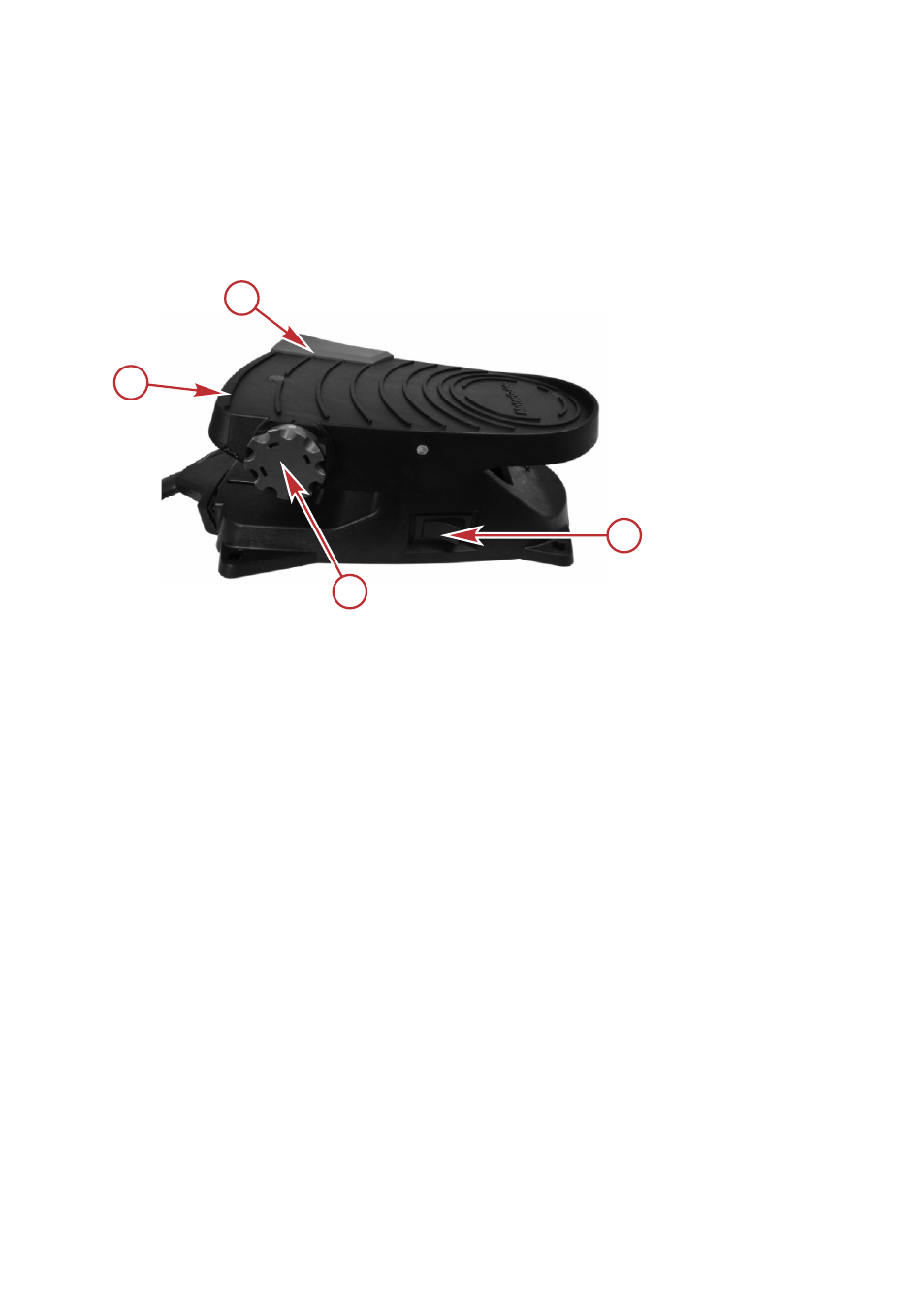

a -
Foot pedal
b -
Momentary switch
c -
On/off/pedal switch
d -
Speed control knob
•
Speed control knob:
The speed control knob on a five‑speed motor is
numbered 0–5, and allows you to select one of five preset speeds, and stop the
motor.
•
Momentary switch:
The momentary switch is located on the top right corner of
the foot pedal. The momentary switch works in conjunction with the on/off/pedal
switch when it is in the pedal position. When the momentary switch is pressed,
the motor will run at the selected speed as long as the switch is pressed.
•
On/off/pedal switch:
This three‑position switch provides three options for
operating the motor: on, pedal, or off.
a. On: Allows the motor to run continuously at the speed selected by the
speed control knob, without the use of the momentary switch.
b. Pedal: Allows the motor to activate with the momentary switch at the speed
selected by the speed control knob.
c. Off: Turns the trolling motor off.
a
b
c
d
54534
