4 Bath construction and operation

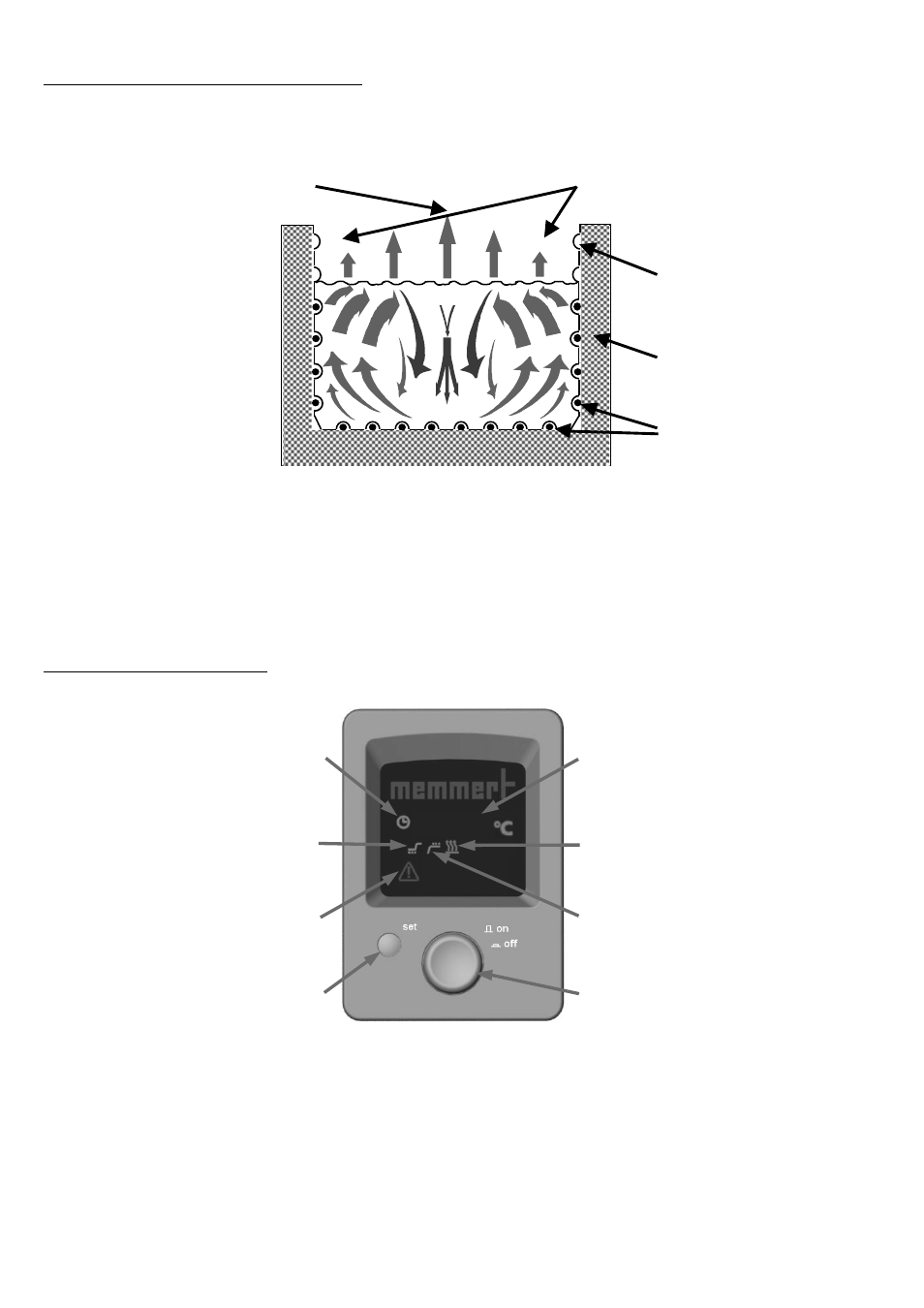

The heating positioned on three sides around the tank ensures a natural water circulation of the liquid
inside, thus securing an optimal uniform temperature distribution.
4.1 Controls and indications
relatively largest heat loss (since
furthest away from the heated ribs)
minimum heat loss (since
very close to the heated ribs)
bath
Insulation
heating elements
time-symbol
delay-symbol
(delayed switch-on)
hold-symbol
(hold time)
alarm-symbol
SET key
temperature display
heater-symbol
push/turn control
7 5. 0
