APPENDIX D: PERSONAL COMPUTER (PC) CONTROL OF THE #1697 CDS
Remote operation of a computerized telescope has only been a fanciful dream for most amateur
astronomers. The realization of fully controlling a telescope through a personal computer has previously
been a staggering proposition involving high monetary cost and expert knowledge of software and hardware.
To realize this dream, the Meade #1697 Computer Drive System's internal software
supports a RS-232 interface, allowing observers to utilize a PC and software such as
Meade EPOCH 2000sk (see Optional Accessories, page, 18), other after-market
software, or a user's own custom software to control a compatible telescope.
The following sections are devoted to those interested in developing their own
software to remotely control every feature of the CDS.
An RS-232 cable is required for serial communication between the CDS and a PC. It
is possible to either purchase an RS-232 cable from your local Meade dealer, or
construct your own cable. Following is a schematic for constructing your own RS-232 cable, a program to
test the RS-232 communication line called CDS TEST, the CDS Command Set, and CDS DEMO, which is
a program that you can enter into your computer to access the Object Library, slew to the object, and center
the image. The CDS TEST and CDS DEMO programs require a serial communication program, such as
Procomm*, to communicate with a PC.
1. RS-232 Cable
The input hardware uses a standard 6 line telephone jack
connector, preattached to a 6 conductor flat line telephone
style cable (of any length, up to 100' and perhaps even more,
depending on the gauge of the cable). You will also need
either a 9-pin or 25-pin RS-232 connector, whichever your
computer uses for the serial port. All of the above items are
available at most electronics hardware stores.

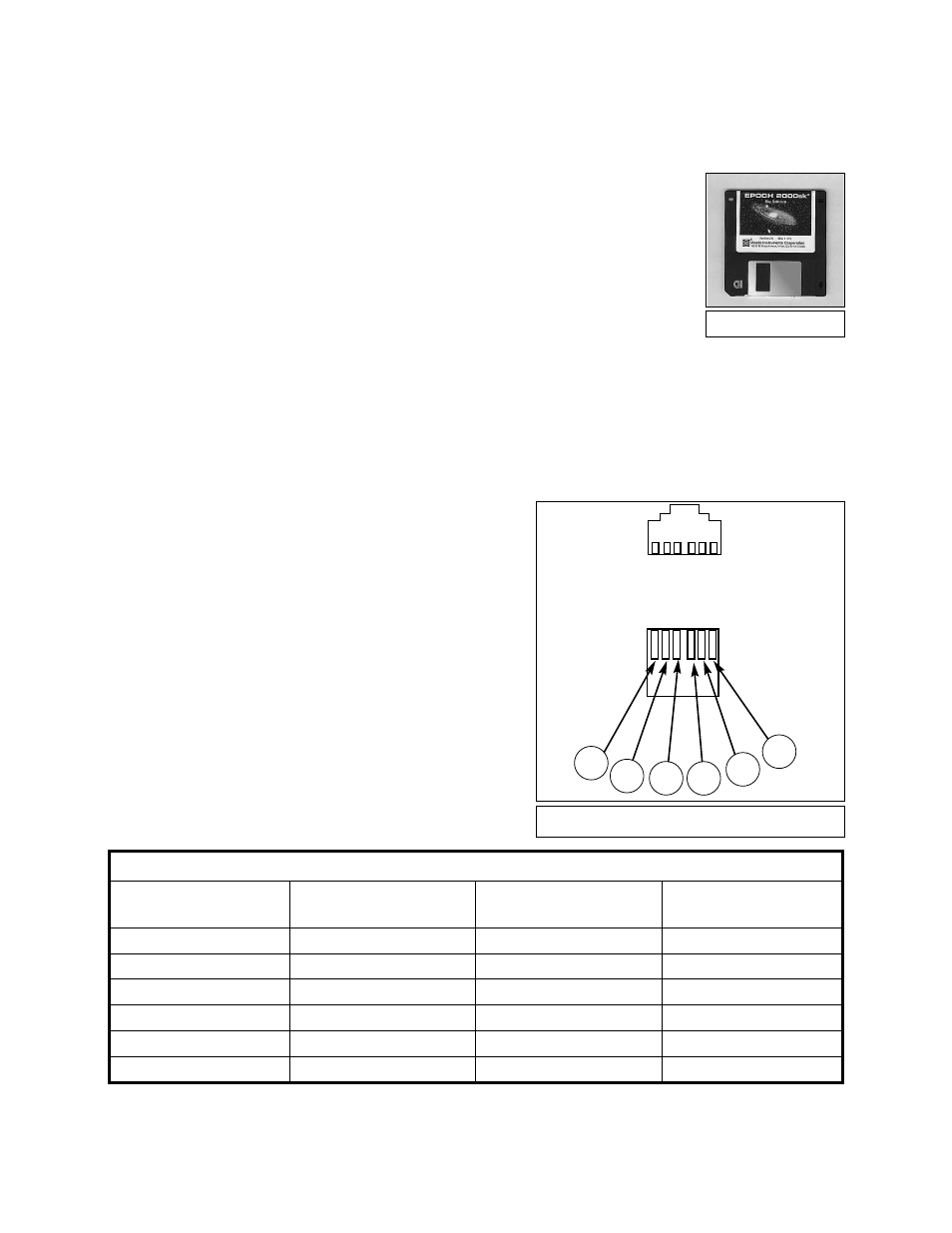

Fig. 15 shows the CDS pinouts for the 6 line telephone
connector. The table below shows standard IBM compatible
DB-9 and DB-25 serial port pin outs, and how they should be
connected to the CDS 6 line modular connector. Note: Only
3 wires are required.
142
536
Fig. 15: CDS Modular Connector
*
Procomm is a product of Datastorm Industries.
**
The DB-9 and DB-25 serial port pin out numbering code is representative of a widely used standard format.
Consult your computer’s instruction manual for your computer's format.
RS-232 CONNECTOR PIN OUT CODE LEGEND
6 WIRE MODULAR
DESCRIPTION
TO DB-9 CONNECTOR
TO DB-25
CONNECTOR
PIN#**
CONNECTOR PIN#**
#1
+12 VOLTS DC
NOT USED
NOT USED
#2
MISC. SERIAL OUT
NOT USED
NOT USED
#3
PC TRANSMIT DATA
#3
#2
#4
GROUND
#5
#7
#5
PC RECEIVE DATA
#2
#3
#6
MISC. SERIAL IN
NOT USED
NOT USED
6
3
5
4
2
1
Fig. 14: EPOCH 2000sk.
