3
Function Introduction
1. DMX Mode；
2. Master- slave mode
3. Auto mode；
4. Sound mode；
Operation Instruction:

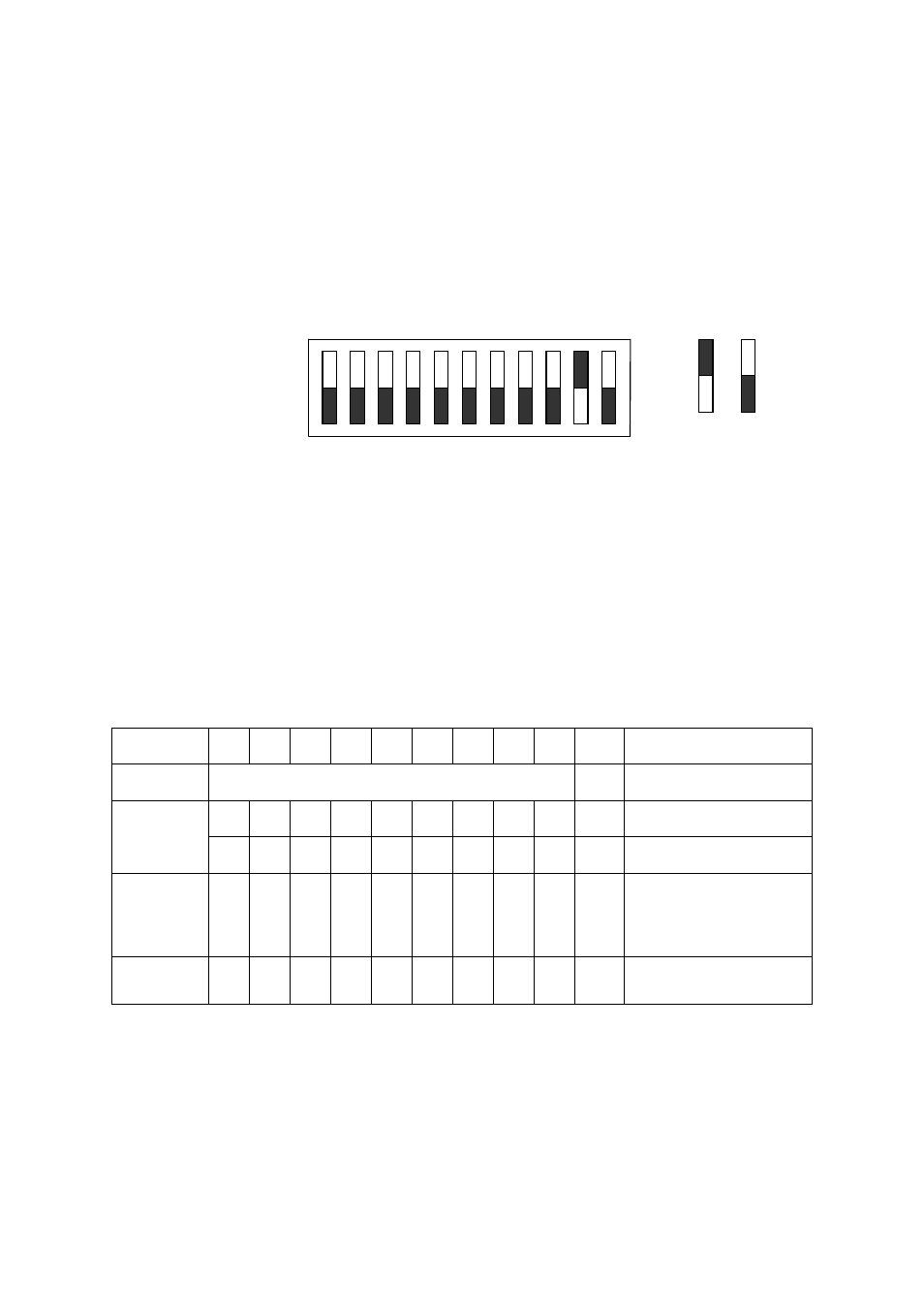

1 2 3 4 5 6 7 8 9 10 OFF ON
Dipswitch instruction
As above figure of dipswitch showed, 1 is “on”and other is “OFF”. “#1”～“#10”stand
for “dipswitch1” ～“dipswitch10”. “1”means “on”and “0”means “off”and “*”means “on”or
“off” is ok( there is no function for dipswitch). X means it can set to 1 or 0 according to
designing needs.
Brief function chart
Mode #1 #2 #3 #4 #5 #6 #7 #8 #9 #10 Description
DMX Set DMX address 0 Enter DMX mode
S0 S0 S0 S0 S0 S0 S0 0 0 1 Strobe
Auto
S0 S0 S0 S0 S0 S0 S0 1 1 1 Gradation
Manual C C C C S1 S1 S1 1 0 1
“ S1”select speed of
strobe
“ C”select color
brightness
Sound * * * * * * M 0 1 1
“ M=0”mode 1
“ M=1”mode 2
NOTE！Important
1. Sound:
① no FADE；②run to sound；
2. Connect DMX controller with the fixture through 3-pin XLR signal cord。
3. In master/slave mode, one of them was set to Auto mode or sound mode and others
was set to submachine, so fixtures can run at same time.
4. DMX address settings :
