Unpacking: Unpacking: Unpacking: Unpacking: Thank you for purchasing the LED8PLUS8. Every LED8PLUS8
has been thoroughly tested and has been shipped in perfect operating
condition. Carefully check the ship ping carton for damage that may have
occurred during shipping. If the carton appears to be damaged, carefully
inspect your fixture for any damage and be sure all equipment necessary to
operate the unit has arrived intact. In the event damage has been found or
parts are miss ing, please contact our toll free customer support number for
further instructions. Please do not return this unit to your dealer without
con tacting customer support first.
Introduction: Introduction: Introduction: Introduction: The LED8PLUS8 is a eleven channel. The fixture can operate
in two different oper ating modes; DMX control or in a Master/Slave
configu ration. The LED8PLUS8 comes with several built in programs that
can be used, while operating as a dimmer unit or when used in multiples linked
in a master/slave configuration.
For best results use fog or special effects
smoke to enhance the beams projections.
Warning! Warning! Warning! Warning! To prevent or reduce the risk of electrical hock or fire, do not
expose this unit to rain or moisture.
Warning! Warning! Warning! Warning! This may cause severe eye damage. Avoid looking directly into the
light source at all times!
Features Features Features Features of of of of L L L LED8PLUS8 ED8PLUS8 ED8PLUS8 ED8PLUS8
• Color Strobe Effect
• LED and motor Chases (Adjustable Speeds)
• DMX-512 protocol
• 3 Operating Modes,auto mode,sound mode,master/slave mode
• DMX-512 Protocol Compatible (Uses eleven DMX Channels)
• Uses high quality Stepper Motors for extremely smooth scanning
• 3 Operational modes: DMX controller, Master/Slave & Sound Active
• Linkable via 3-pin XLR cable
• 4-button LED DMX display
• Includes hanging bracket
• Very low heat output and power consumption
• Run All Night - High velocity fan keeps unit cool - No Duty Cycle!
• Voltage: 120V/60Hz
• Power Consumption: 60W
• Dimensions: 544x496x175mm
• Weight: 10 kgs.

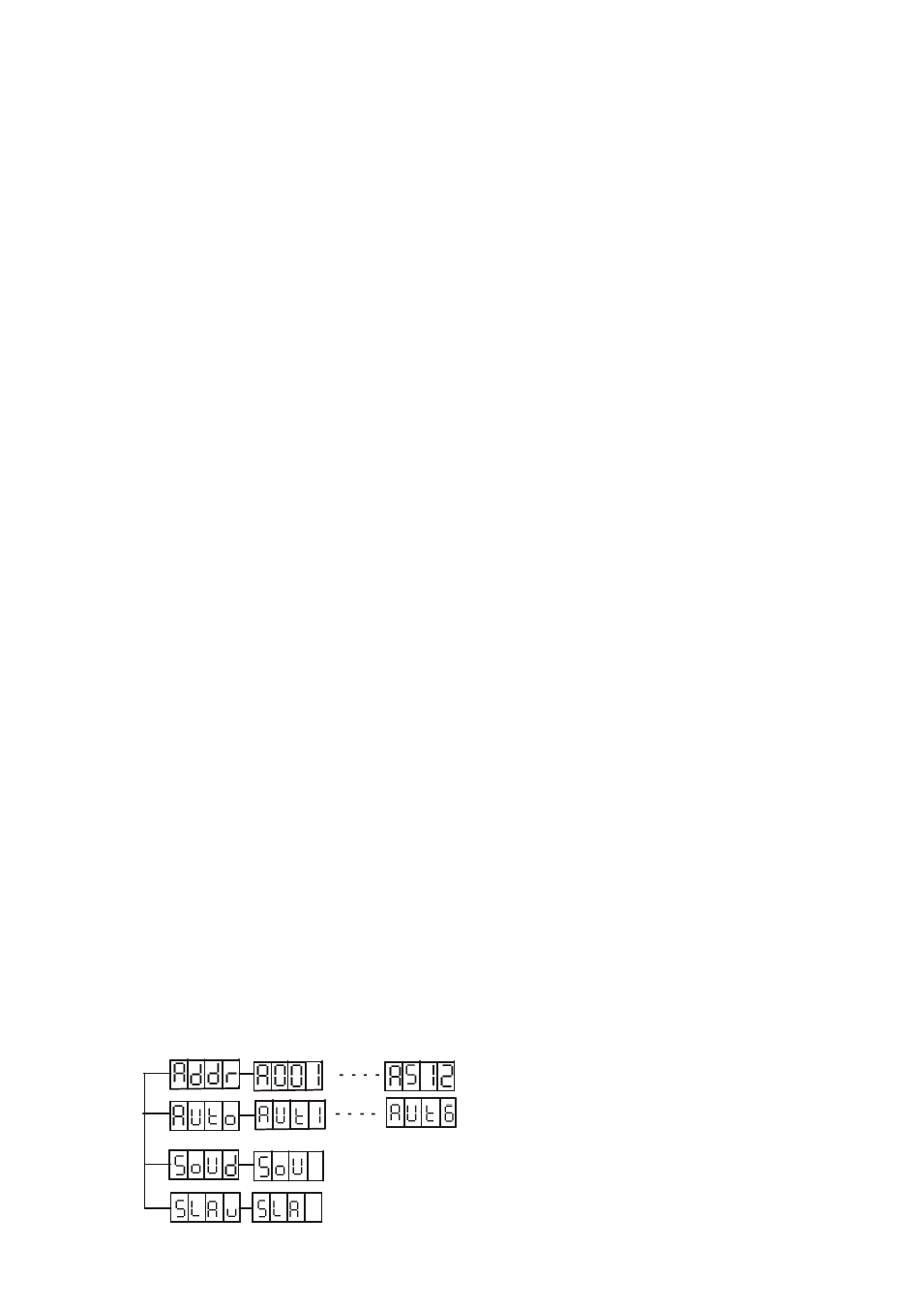

On-Board On-Board On-Board On-Board System System System System Menu Menu Menu Menu.
The LED8PLUS8 comes with an easy to navigate
system menu. This next section will detail
the functions of each command in the
system menu.
Please read the next section
thoroughly!
Addr - DMX DMX DMX DMX Address Address Address Address Setting Setting Setting Setting
If you select DMX-mode, press “mode”
button
until “Addr”displayed;The
next ,press “ENTER” button , “Axxx” will
now be displayed, “x” represents the
