3

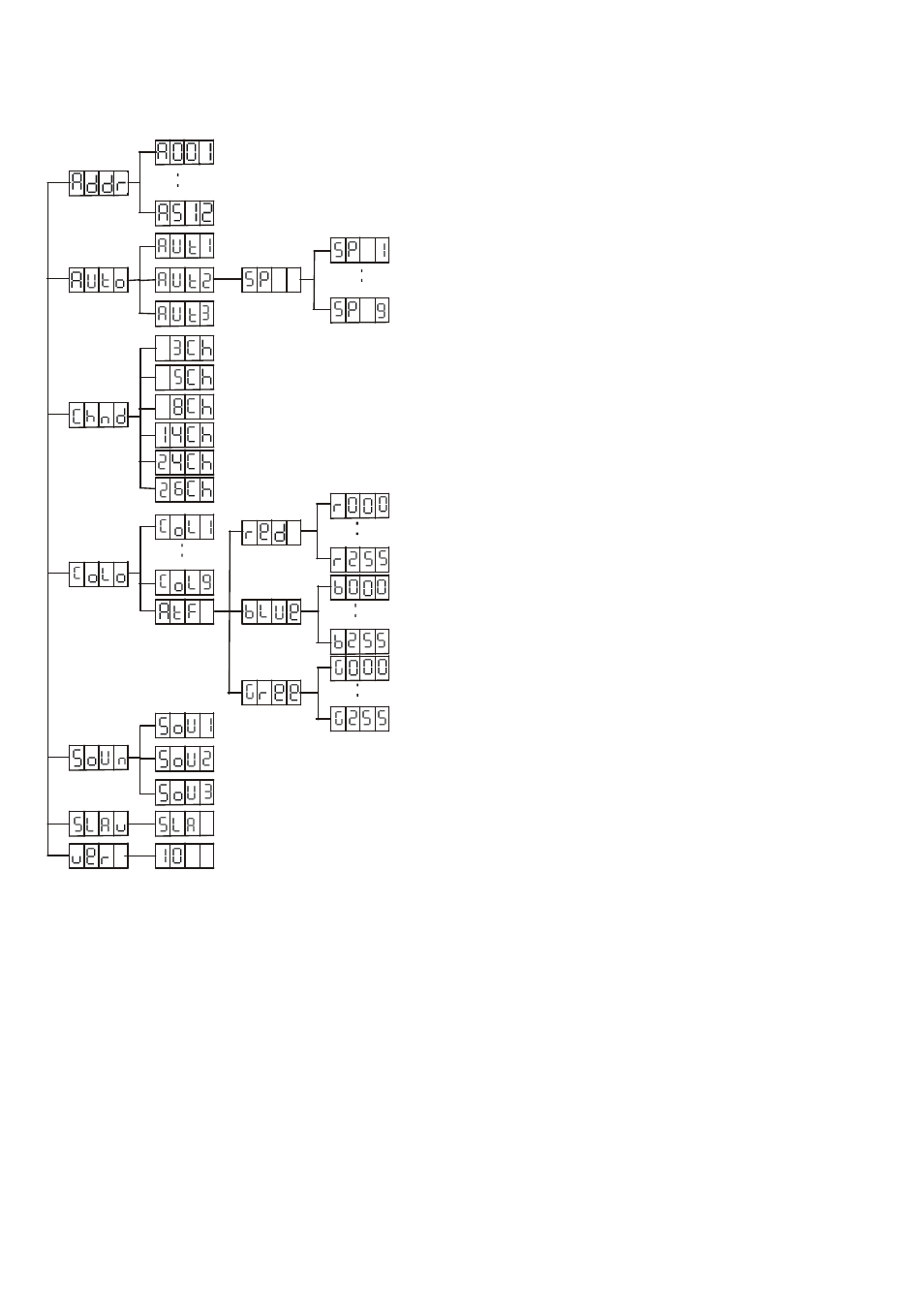

Addr
- DMX DMX DMX DMX Address Address Address Address Setting Setting Setting Setting via via via via control control control control board board board board
and and and and moter moter moter moter sstting sstting sstting sstting
1. Tap the ESC button and UP button or DOWN
button until “Addr” is displayed, press
ENTER.
2. “Axxx” will now be displayed, “x”
represents the displayed address. Press the
UP or DOWN buttons to find your desired
address.
Auto
- This This This This menu menu menu menu will will will will let let let let you you you you select select select select your your your your desired desired desired desired
auto auto auto auto mode mode mode mode
1. Tap the ESC button and UP button or DOWN
button until “Auto” is displayed, press
ENTER.
2. “Autx” will now be displayed, You can
confirm three modes by UP or DOWN for auto
mode.
Chnd
- This This This This menu menu menu menu will will will will let let let let you you you you select select select select your your your your desired desired desired desired
DMX DMX DMX DMX Channel Channel Channel Channel mode. mode. mode. mode.
1. Tap the ESC button and UP button or DOWN
button until “Chnd” is displayed, press
ENTER.
2. “X Ch” will now be displayed, “X”
represents the displayed DMX channel mode. Press the UP or DOWN buttons to
find your desired Channel mode.
Colo
- This This This This menu menu menu menu will will will will let let let let you you you you select select select select your your your your desired desired desired desired sound sound sound sound mode mode mode mode
1. Tap the ESC button and UP button or DOWN button until “CoLo” is
displayed, press ENTER.
2.Either “CoL X”, “X” representing a number between 1-9 or “AtF ” will be
displayed. Press the UP or DOWN buttons to select either a static color or
“AtF ” mode. If you select a static color press ENTER and it will be
