Operation Instruction
SRL-4147-RGB uses High Power LED to make the colorful effect. The function are
Sound and Auto
. If it is at Sound mode, the various effect will be controlled by the Sound
Potentiometer If it is at the Auto mode, this fixture will be running automatically.

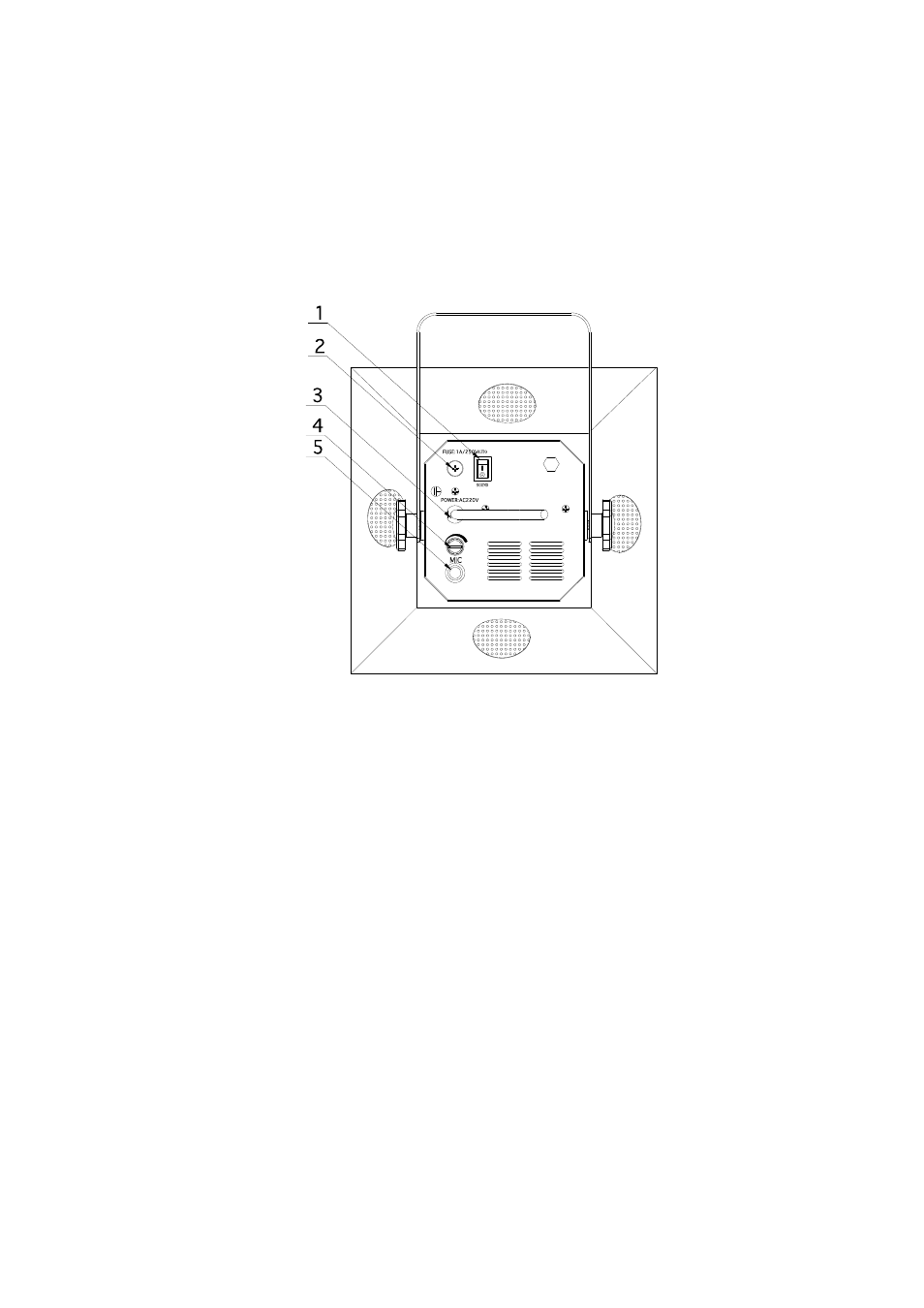

Connector instruction:
1. Sound/Auto Switch (You can choose the Sound mode or Auto mode with this switch)
2. Fuse
3. Power Cable
4. Sound Potentiometer (Adjust the sensitivity of the sound)
5. Midi connector
