(1)

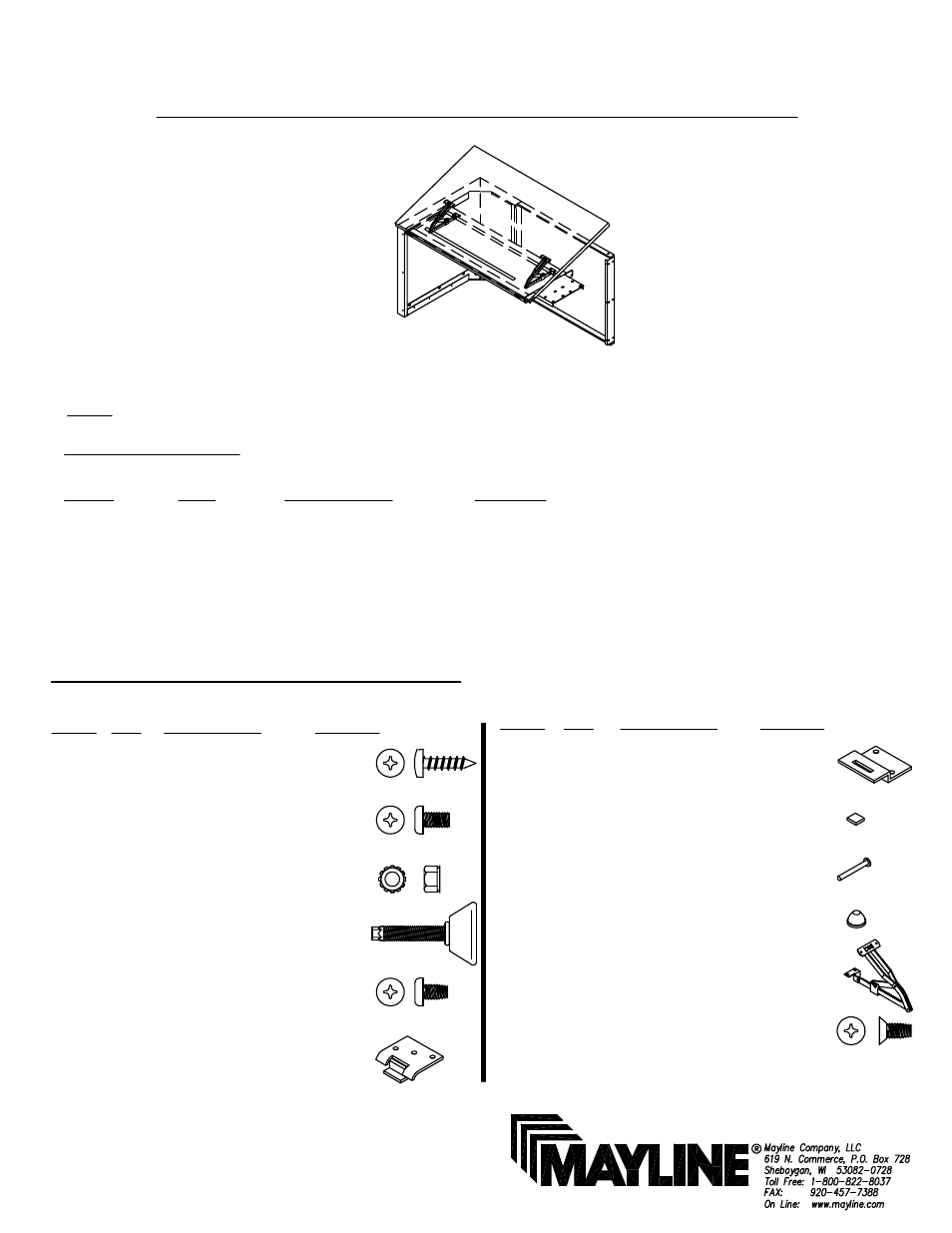

ASSEMBLY INSTRUCTIONS

CS

II

TILT TOP RETURN

COMPONENTS:

REF. # QTY. DESCRIPTION PART No.

1 1 WORK SURFACE CALL~~**
2 1 MODESTY PANEL CALL~~**
3 2 LEG ASSEMBLY C731**
4 1 FRAME ASSEMBLY CALL~~**
5 1 PENCIL STOP 600195
6 1 BRACKET B7805**

HARDWARE BAG (PART No. A7801)

*for individual part , order that part number

REF. # QTY DESCRIPTION PART No.

E1 12 #10 x 3/4 SCREW X11*

E2 6 #10-24 x 3/8 SCREW X147*

E3 6 #10-24 KEPS NUT T2*

E4 2 GLIDE Q630*

E5 10 #10-32 x 1/2 SCREW X204*

E6 2 UPPER HINGE B194*

REF. # QTY DESCRIPTION PART No.

E7 2 LOWER HINGE B195*

E8 2 RUBBER BUMPER D37*

E9 1 RIVET R25*

E10 1 CAP F10*

E11 2 LIFT ASSEMBLY V120A*

E12 4 #10-32 x 1/2 FLAT X191*
HEAD SCREW

When ordering components, specific color and/or size information may be required.

Contact a Mayline Customer Service Representative. 1-800-822-8037

NOTE: Please count and inspect all pieces before disposing of any carton or packing materials.

** Denotes Color Code

~~Denotes Size

CATALOG No:

C36TR
C42TR
C48TR
