Mayline CSII Tilt Table - Manual (Page 3)

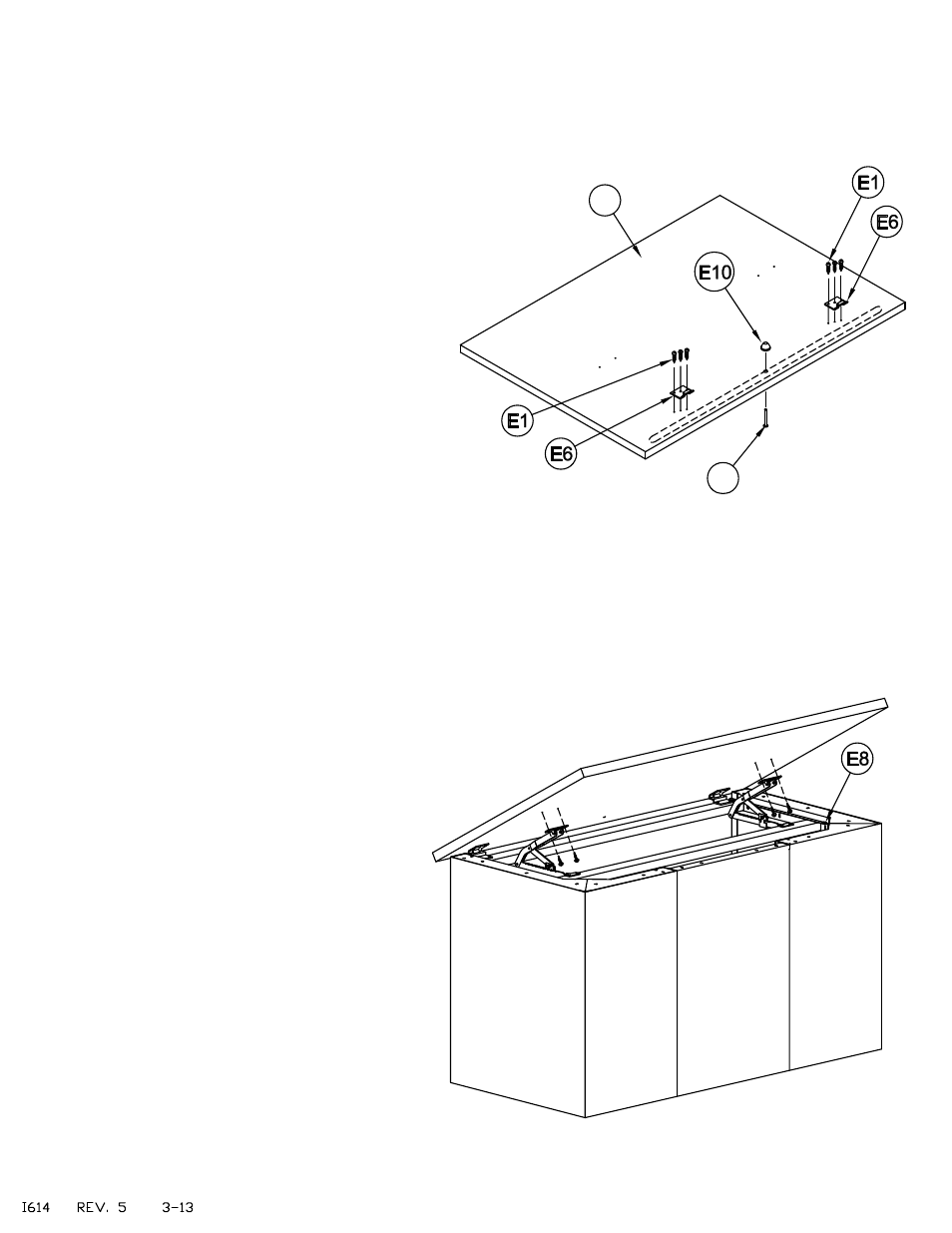

10. To mount the Work Surface to the base, insert the tabs
of the Upper Hinges into the slots of the Lower Hinges
mounted on the Frame Assembly. Raise the Lift Hinges
until the mounting plate holes are aligned with the pre-drilled
holes in the Work Surface and secure in place with four
Screws (E1).
11. Apply Rubber Bumpers (E8) near the end of the Frame
Assembly, farthest from the Hinges.
12. Place the Pencil Stop (5) into the
Work Surface groove.
8. Place the Work Surface (1) face down onto a clean
surface. Position the Upper Hinge (E6) with the hinge tab
toward the bottom edge. Secure with six Screws (E1).
9. With the Pencil Stop (5) removed, insert the Rivet (E9)
into the center hole in the groove. Position it with the Rivet
head in the groove and place the Push Nut (E10) on the end
of the Rivet that protrudes beyond the bottom surface.
E9
1
(3)
