Mayline Technology Beltway User Manual
Page 2
PRINTED IN USA
2
61 9 N. Commerce P.O. Box 728, Sheboygan, WI 53082-0728
www.mayline.com
800-822-8037
Fax 920-457-7338
6/1 2
I766

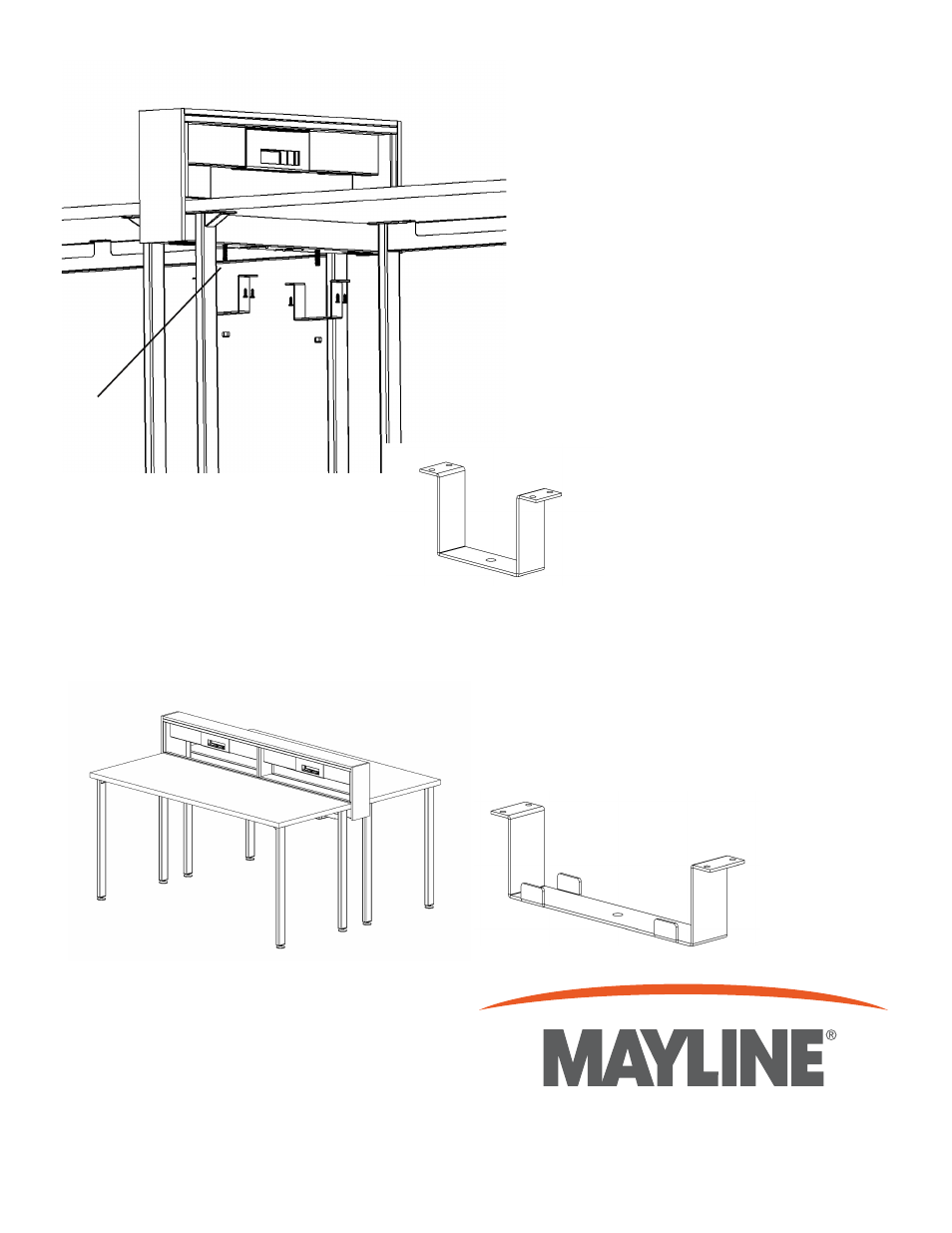

3. Place the 3/8" bolts (2) in through the
holes in the bottom of the Beltway.
4. Attach the bracket with the supplied nut.
5. Tighten the nut.
6. Screw the bracket to each top with the
supplied screws.
3/8 bolt
(2)
Note: Use this bracket when
the beltway is across the ends
of the tables.
Note: Use this bracket when
the beltway is running the width
of the tables as shown at left.
