Mayline Ranger 4-Post Table w/ Ligh User Manual
Page 3
(3)

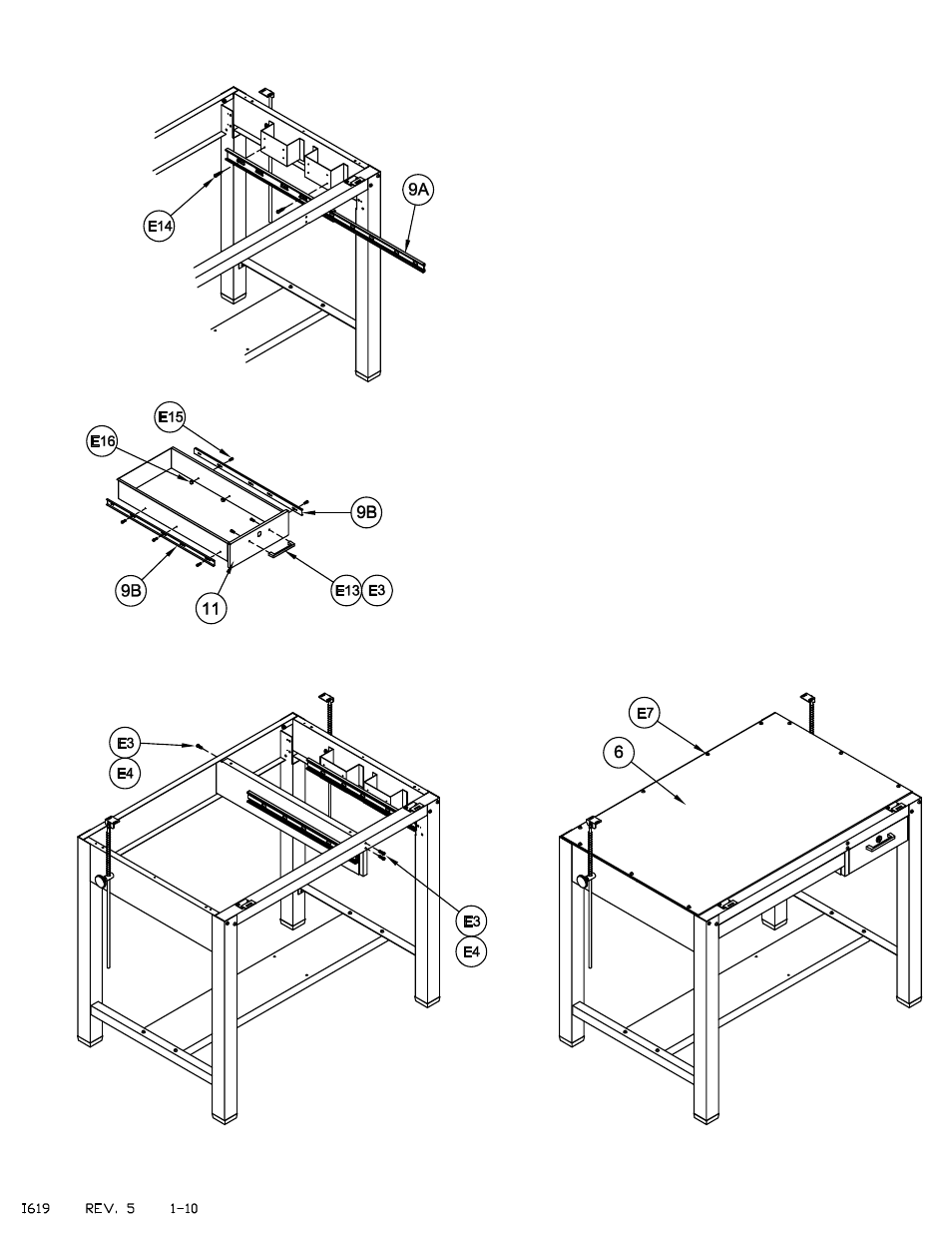

8. Attach one large Slide portion (9A) to the
brackets on the R.H. side of the table using two
Screws (E14). Repeat this procedure on the L.H.
side of the Table.
9. Attach the smaller Slide portion (9B) to each
side of the Drawer body using three Screws (E15)
and three Acorn Nuts (E16). Repeat this
procedure for the Shallow drawer.
10. Install the Drawer Pull (E13) onto the Tool
Drawer head using Screws (E3).
11. Install the assembled Center Support into the
Base. Attach the Support with two Screws (E3)
and two Nuts (E4) per rail.
12. Install the drawers into the assembled table.
13. Lay the Dust Cover (6) onto the table. Align
the holes in the Dust Cover with the holes in the
Rails and attach with Screw (E7).
