Mayline Ranger 4-Post Table w/ Ligh - Manual (Page 2)

(2)

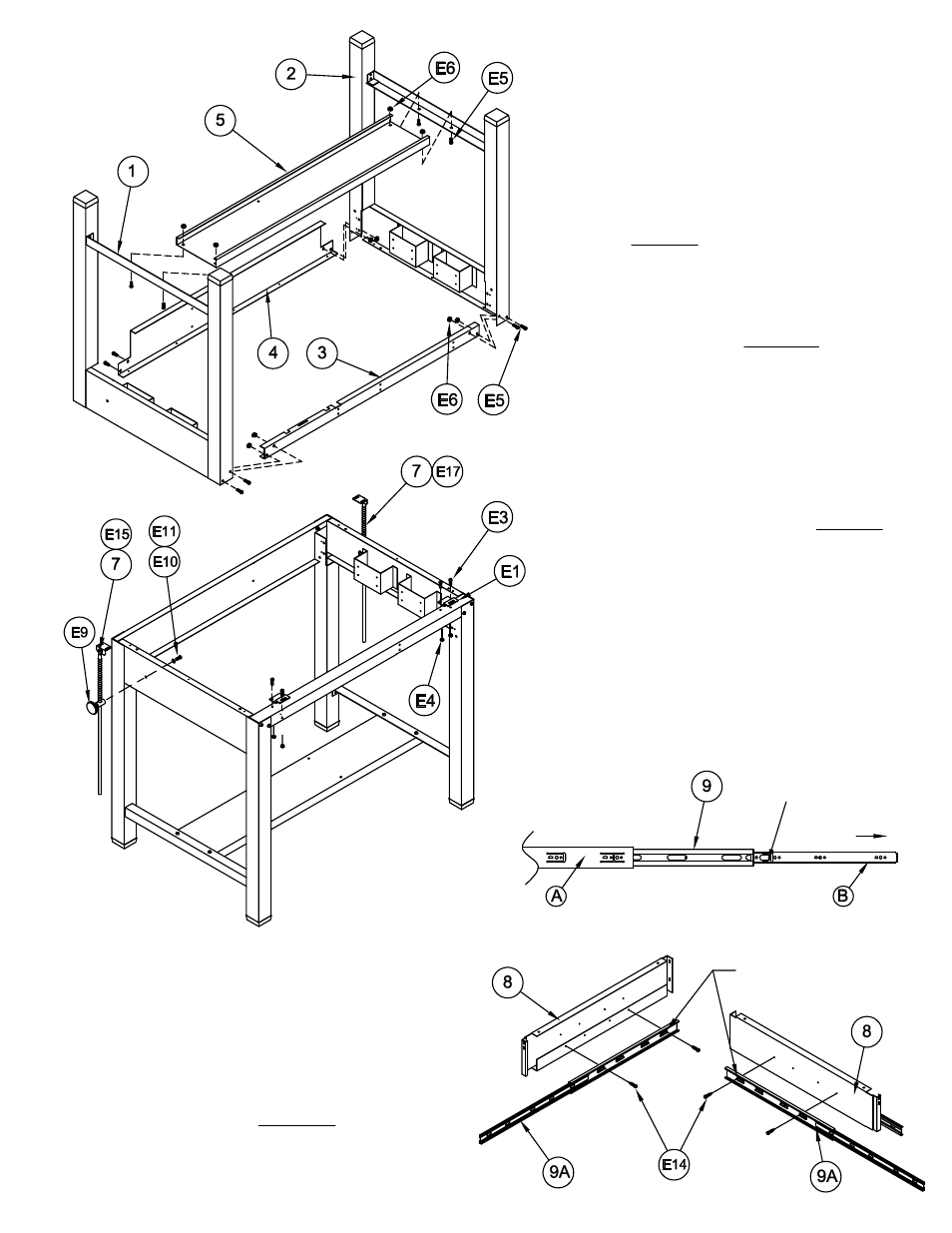

1. Place the two End Assemblies (1 & 2)
upside. Position the Front Rail (3) with the
larger of the two flanges toward the floor.
Position the Rear Rail (4) with the Dust
Cover attachment holes toward the floor.
Secure these Rails to the End Assemblies
with two Screws (E5) and two Nuts (E6) per
end. DO NOT tighten screws at this time.
2. Position the Foot Rail (5) with flat
surface toward the floor. Attach the Foot
Rail to the End Assemblies with four Screws
(E5) and Nuts (E6). TIGHTEN all rail
attaching screws now.
3. Turn assembled table to an upright
position. MAYLINE recommends that two
people perform this task.
4. Fasten one Tilt Rod Guide (E12) to each
side of the table using one Bolt (E11) and
one Washer (E10) per guide. DO NOT
tighten completely.
5. Insert Tilt Rod Assembly (7) through the
Spring (E17). Insert the Rod and Spring
through the hole in Guide and tighten in
place with Plastic Knob (E9).
6. Separate the Drawer Slides (9) into two pieces.
Extend the Slide to the full extension. Remove the
smaller portion (9B) by pressing the plastic release
and pulling.
7. Attach the large Slide portion (9A) to the Center
Support (8) using two Screws (E14). Begin attaching
the Slide using the large ' Horizontal' slot in the last
mounting tab. Repeat this procedure on the opposite
side of the Center Support.
TOOL
DRAWER
SLIDE
SHALLOW
DRAWER
SLIDE
Start "HERE"
PRESS
PULL
