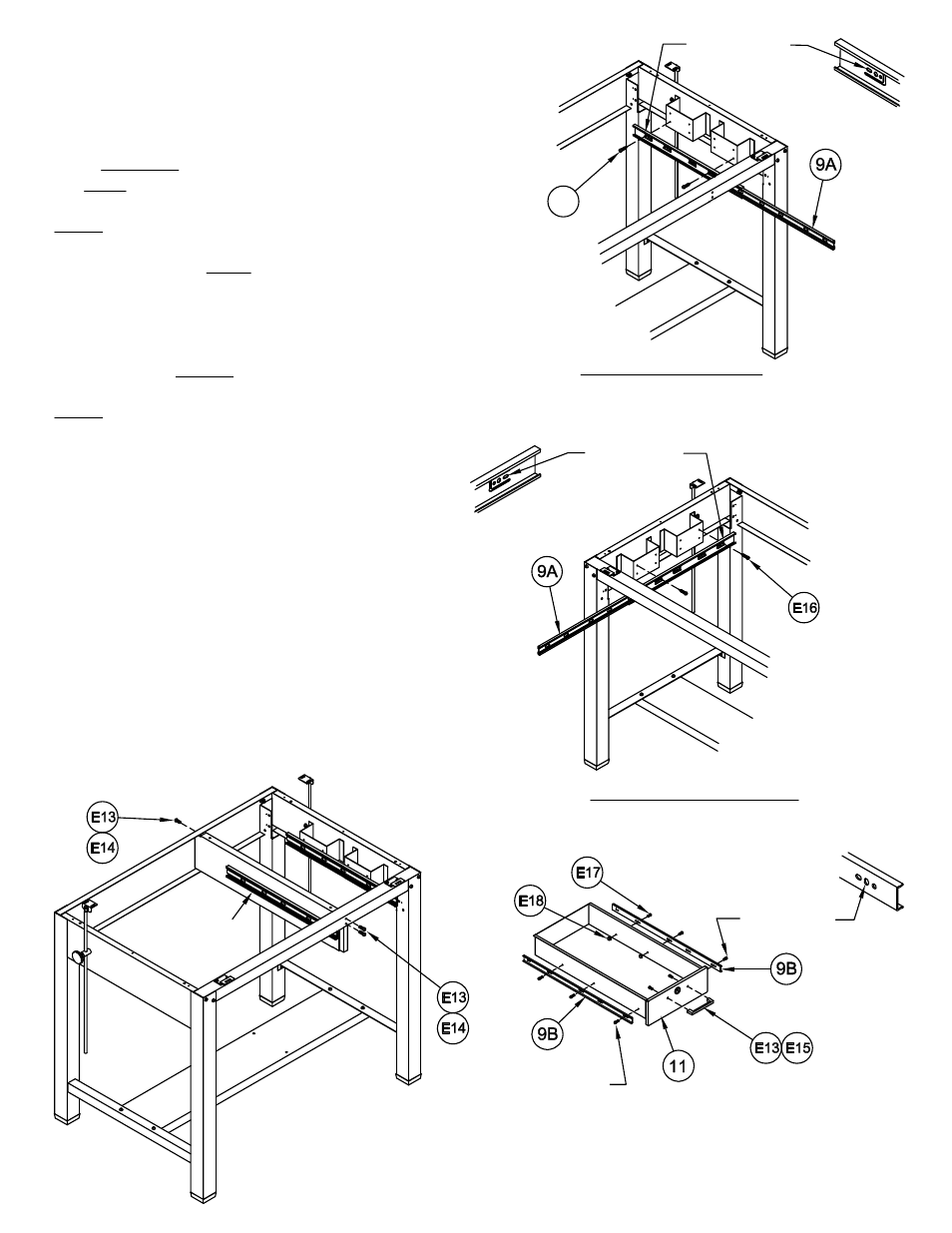

3. Attach one large Slide portion (9A) to the
brackets on the R.H. side of the table using two
Screws (E16). Begin attaching the Slide using the
large 'Horizontal' slot in the last mounting tab using
the lower set of holes for Tool Drawer installation.
NOTE: If you are installing the Optional Shallow
Drawer, repeat this procedure on the L.H. side of
the Table using the upper set of holes.
4. Attach the smaller Slide portion (9B) to each
side of the Drawer body using three Screws (E17)
and three Acorn Nuts (E18). Begin attaching the
Slide using the 'Vertical' slot in the first hole cluster.
NOTE: If you are installing the Optional Shallow
Drawer, repeat Step 4, beginning at the same
vertical slot in Slide portion 9B as on the tool
drawer assembly.
5. Install the Drawer Pull (E15) onto the Tool
Drawer head using Screws (E13).
6. Install the assembled Center Support into the
Base. Attach the Support with two Screws (E13)
and two Nuts (E14) per rail.
7. Install the drawer/s into the assembled table.
Begin "HERE"
Begin "HERE"
Begin "HERE"
'OPTIONAL'
Shallow Drawer Slide
E16
(3)
Begin "HERE"
R.H. Side - Tool Drawer
L.H. Side - Shallow Drawer
