3 – CONTROLS AND OPERATIONS
DRUM LATCH
Lift the drum latch to rotate the drum into the dump position. The latch should
automatically engage when the drum is returned to the mix/transport position.
(SEE FIGURE 3)

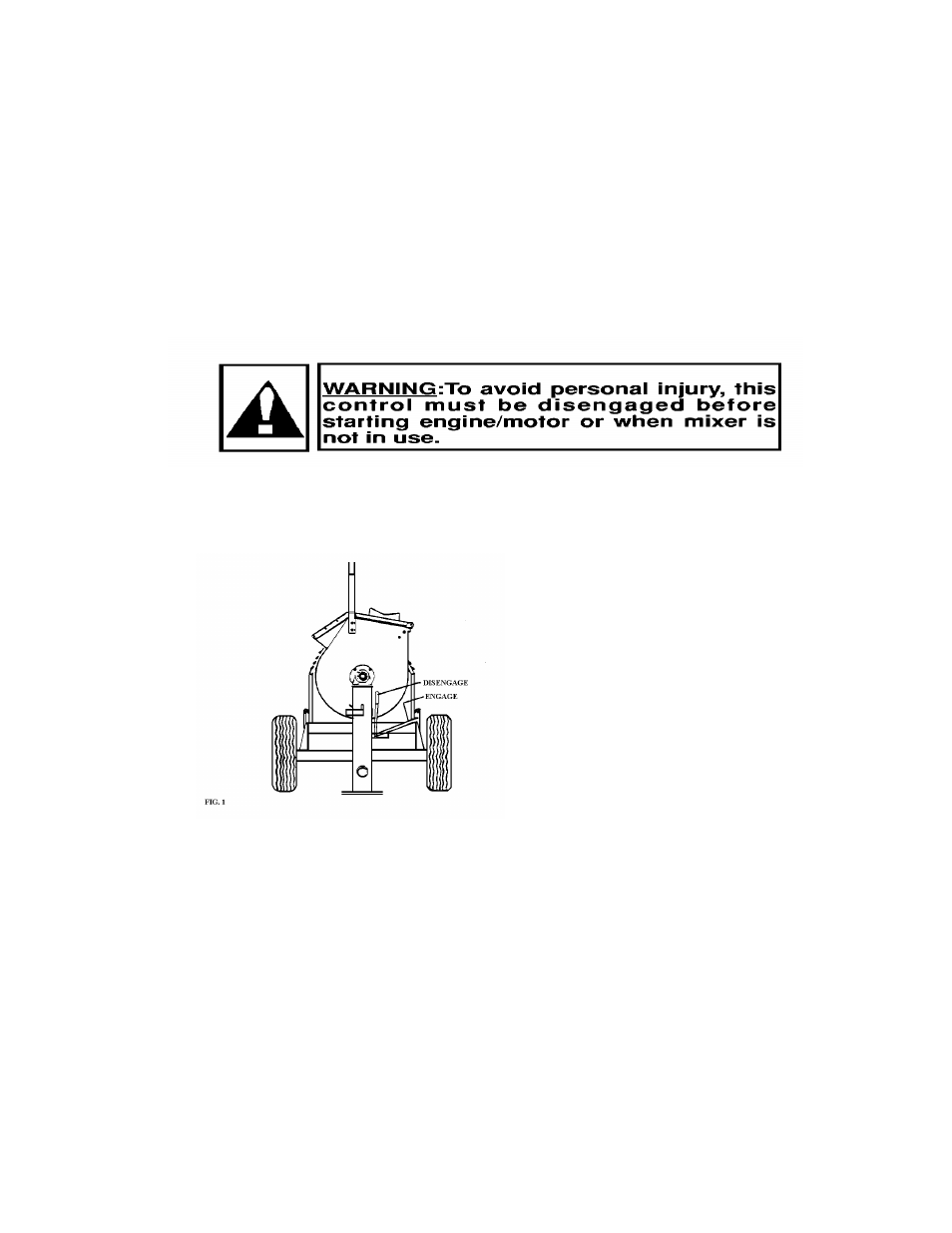

CLUTCH CONTROL LEVER
This control is located at the front mixer leg. This control engages and disengages power
to the paddle shaft. SEE FIGURE 1.
ENGAGE PADDLE DRIVE: Place lever in 2:00 position.
DISENGAGE PADDLE DRIVE: Place lever in 12:00 position.
ENGINE/MOTOR CONTROLS
Electric powered units have an motor start switch and emergency stop mounted in an
electrical enclosure. A three wire outdoor power cord is pre-wired into the switch. When
connecting the power cord, always connect to mixer first, and then connect to a grounded
receptacle. When disconnecting the power cord, always turn mixer off first.
Refer to the engine operating instructions for gasoline powered units.
