LoadVUE-CG User Guide
Loadstar Sensors, Inc. • www.loadstarsensors.com

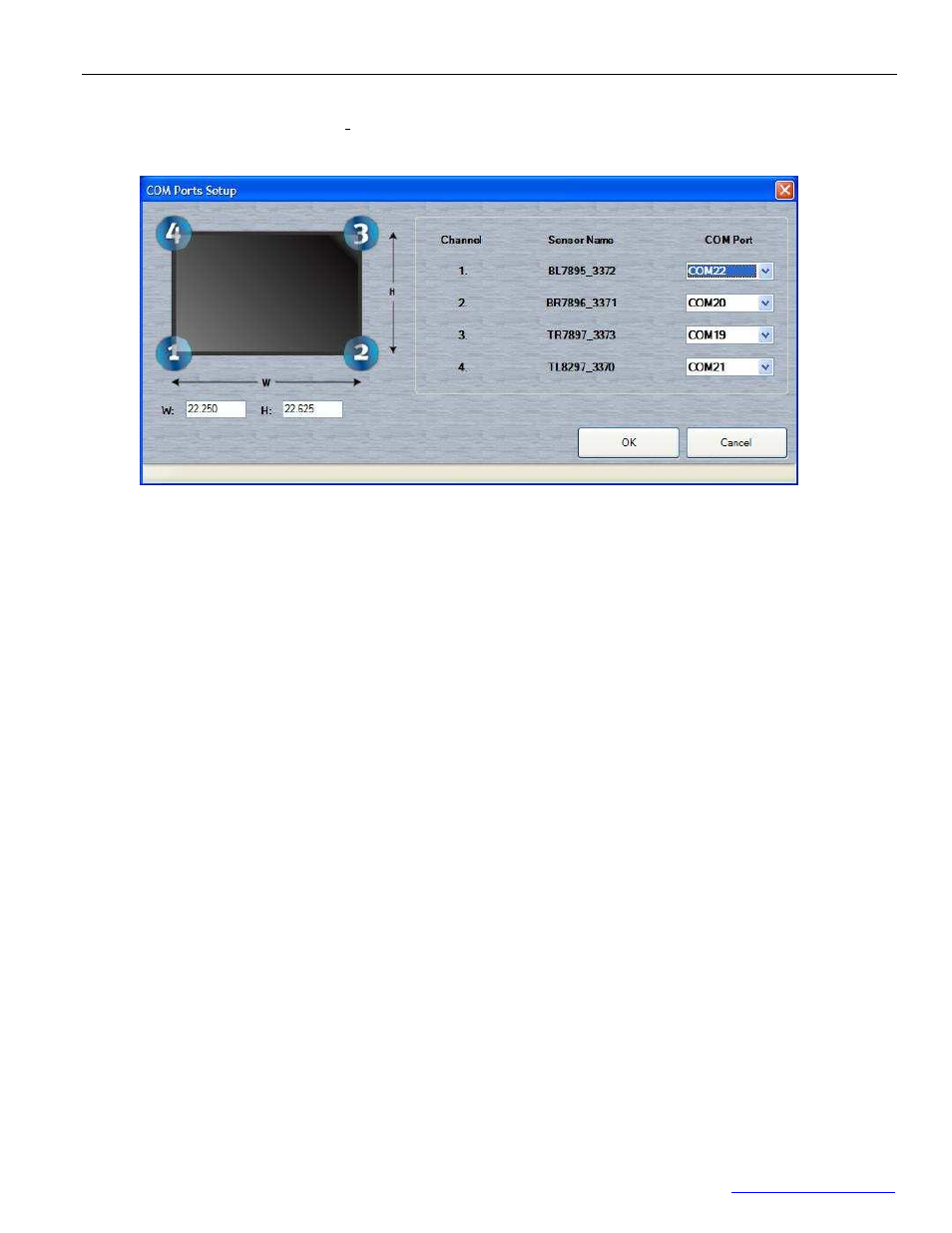

7. Click on Setup…COM Ports Setup… on the toolbar to configure the dimensions of the CG
platform. The default dim is 24” x 24”. (See attached sheet for actual dimensions between the
load cell mounting points.). If you desire to change the default orientation of the platform, you
can reassign the load cells to different corners using this screen.
8. Click Tare to zero out the load on all the four load cells.
9. Click Start to start reading the load on the platform. Individual loads will be read and CG will be
computed and displayed.
10. Click Stop to stop reading.
