Blue Rhino NPC1924N - Manual (Page 3)

Outdoor Charcoal Barbecue Grill Model No. NPC1924N Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
3

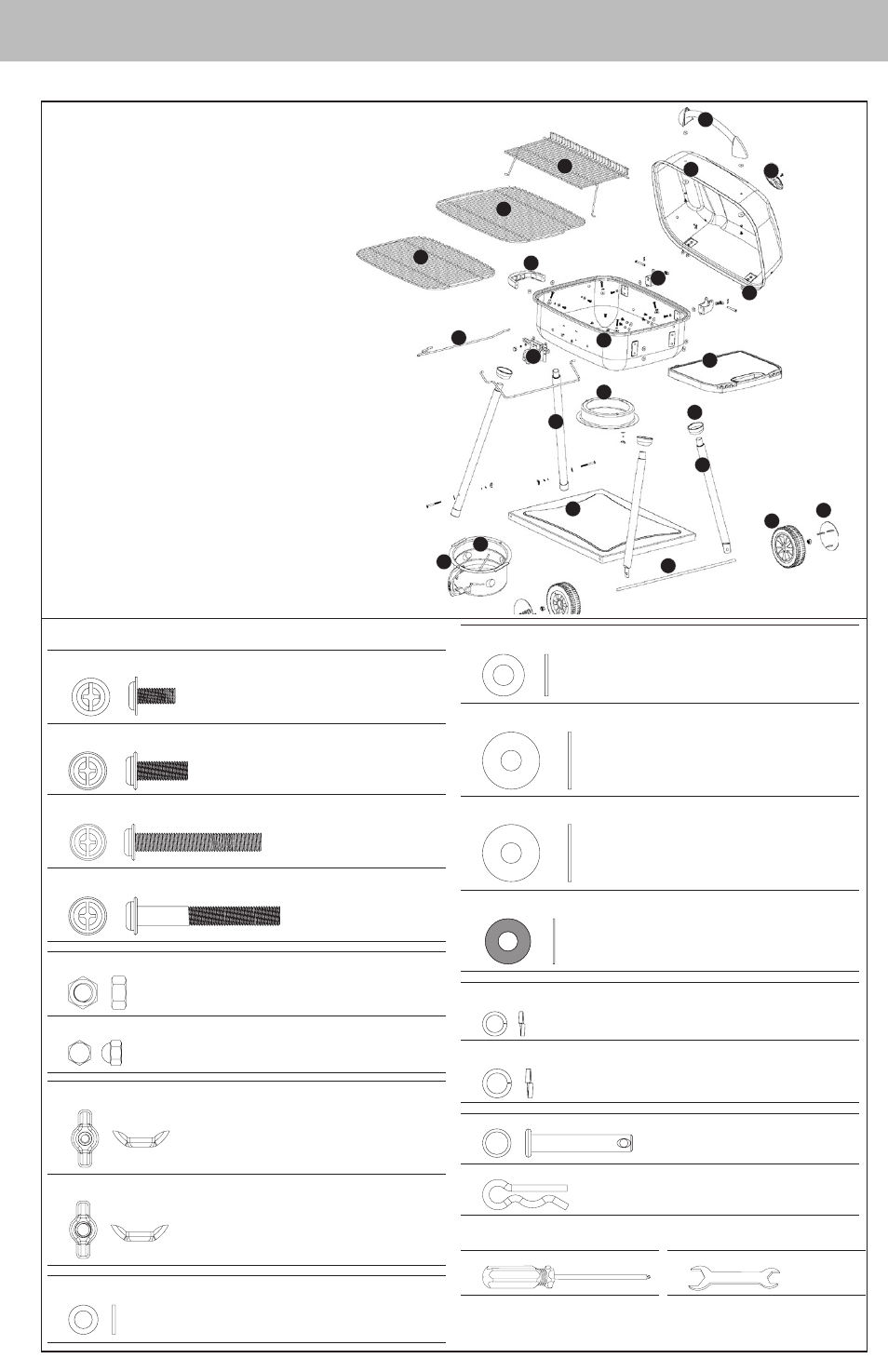

Exploded View
1. Lid Handle Assembly . . . . . . . . . . . . . . . . 55-15-124
2. Lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-15-120
3. Air Vent Assembly . . . . . . . . . . . . . . . . . . 55-14-857
4. Warming Rack . . . . . . . . . . . . . . . . . . . . . 55-14-855
5. Cooking Grid . . . . . . . . . . . . . . . . . . . . . . 55-14-873
6. Charcoal Grid. . . . . . . . . . . . . . . . . . . . . . 55-14-856
7. Top Hinge (2)* . . . . . . . . . . . . . . . . . . . . . 55-15-123
8. Bottom Hinge (2) . . . . . . . . . . . . . . . . . . . 55-14-868
9. Side Handle . . . . . . . . . . . . . . . . . . . . . . . 55-14-870
10. Bottom Bowl . . . . . . . . . . . . . . . . . . . . . . 55-14-865
11. Side Shelf . . . . . . . . . . . . . . . . . . . . . . . . 55-14-869
12. Charcoal Grid Support Rod (2) . . . . . . . . . 55-14-872
13. Adjustable Knob Assembly . . . . . . . . . . . . 55-14-871
14. Leg Cup (4) . . . . . . . . . . . . . . . . . . . . . . . 55-14-864
15. Slide . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-866
16. Wheel Leg (2). . . . . . . . . . . . . . . . . . . . . . 55-14-860
17. Left Leg (2) . . . . . . . . . . . . . . . . . . . . . . . 55-14-863
18. Bottom Shelf . . . . . . . . . . . . . . . . . . . . . . 55-14-858
19. Ash Receiver Assembly . . . . . . . . . . . . . . 55-15-125
20. Ash Receiver Handle*. . . . . . . . . . . . . . . . 55-13-263
21. Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-859
22. Wheel (2) . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-861
23. Hub Cap (2) . . . . . . . . . . . . . . . . . . . . . . . 55-14-862
*Pre-assembled
18
4
1
8
9
6
3 2
22
19
21
11
15
5
12
14
17
13
16
10
Hardware
A. Small Screw 3 pcs
M5x12 Philips Truss Head Screw
B.
Medium Screw 11 pcs
M6x16 Philips Truss Head Screw
C.
Large Screw 4 pcs
M6x40 Philips Truss Head Screw
D.
Extra Large Screw 2 pcs
M6x45 Philips Truss Head Screw
E. Nut** 2 pcs
M10 Zinc Plated Hex Nut
F. Cap Nut** 2 pcs
M5 Zinc Plated Cap Nut
G. Small Wing Nut** 1 pc
M5 Zinc Plated Wing Nut
H. Large Wing Nut** 5 pcs
M6 Zinc Plated Wing Nut
I. Small Washer 2 pcs
ø5.5 Zinc Plated Washer
J. Medium Washer 5 pcs
ø6.5 Zinc Plated Washer
K. Large Washer 12 pcs
ø6.5 Zinc Plated Washer
L. Extra Large Washer 4 pcs
ø6.2 Zinc Plated Washer
M. Heat Resistant Washer 12 pcs
ø6 Zinc Plated Lock Washer
N. Small Lock Washer 3 pcs
ø5.5 Zinc Plated Lock Washer
O. Large Lock Washer 11 pcs
ø6.5 Zinc Plated Lock Washer
P. Pins** 2 pcs
Q. Cotter Pins** 2 pcs
Tools Included
R. Screwdriver** 1 pc S. Wrench** 2 pcs
** Not shown at actual size.
23
7
20
