Step 15

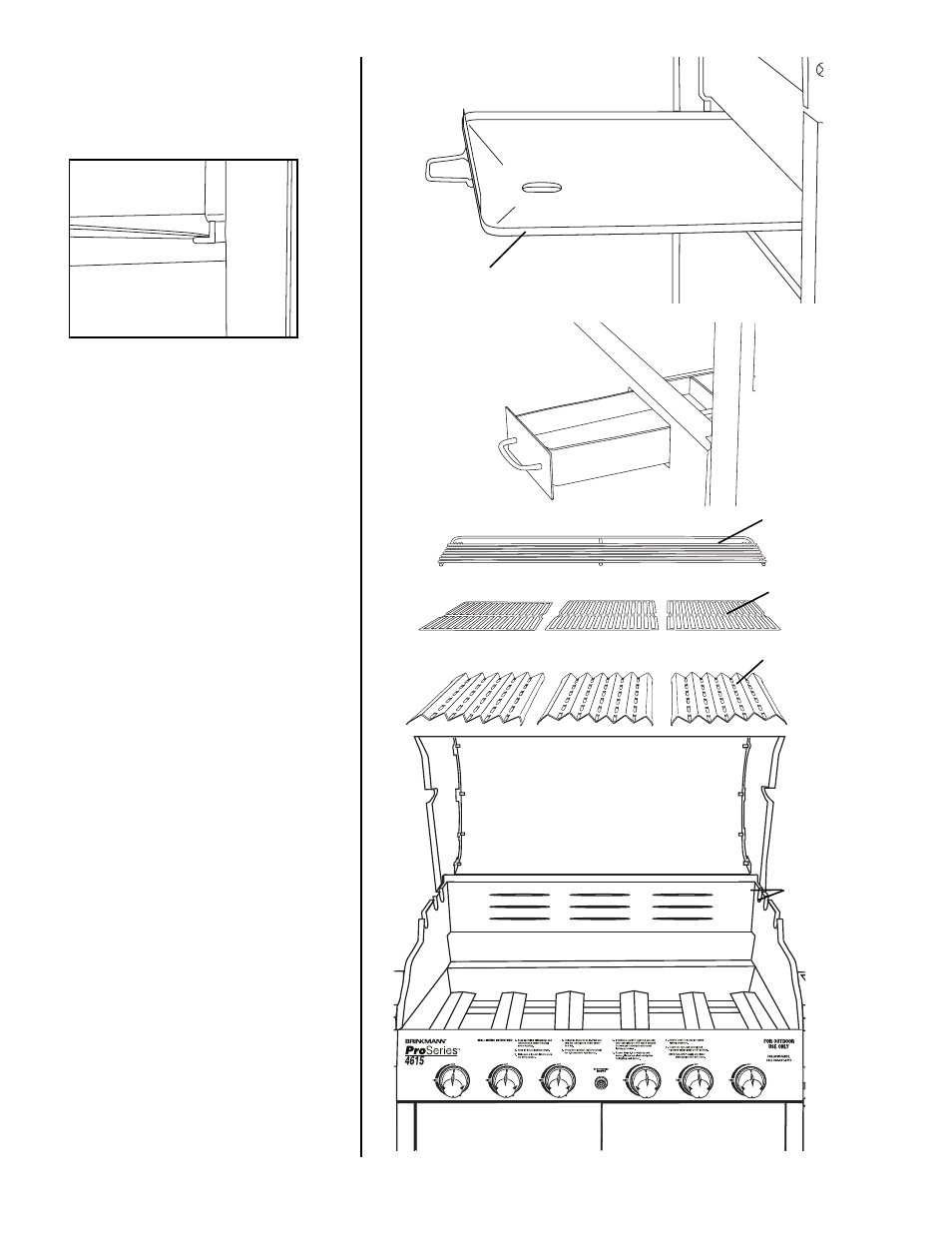

Insert grease tray into opening on
backside of grill. Make sure to slide
tray onto tracks as illustrated.

Step 16

Slide grease tray into grease tray
bracket located under grill bottom
on backside of grill.

Step 17

Place the heat distribution plates
on lower level of grill body
assembly directly above burners.

Step 18

Place porcelain cast iron cooking
grills on support ribs directly
above heat distribution plates.

Step 19

Place warming rack in grooves so
that it sits above the cooking grills.

Cooking Grills

Heat Distribution
Plates

Grooves

Warming Rack

Grease Tray
