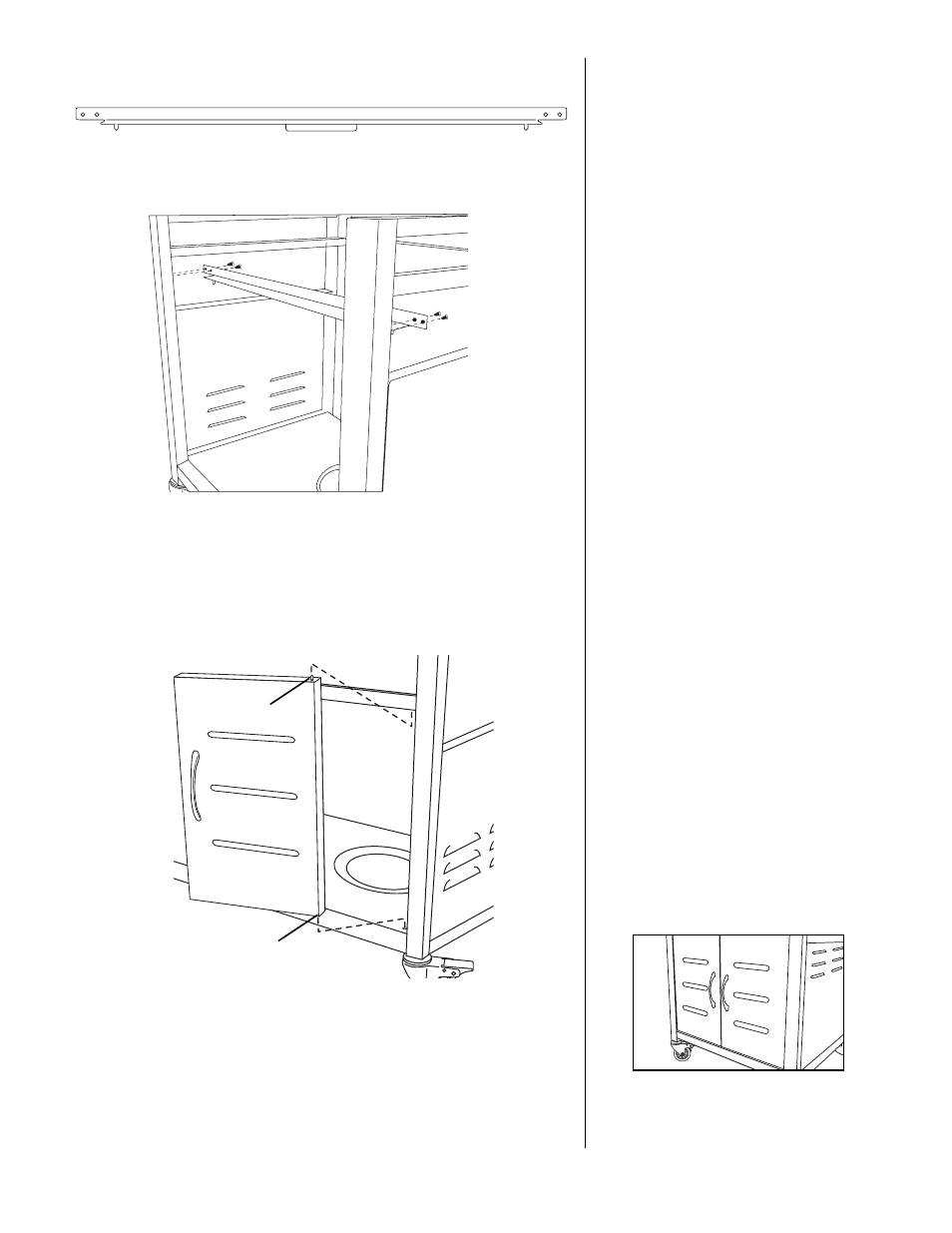

Spring Pin
Step 7
Install door bracket using four
M6 X 12mm bolts. Make sure the
door stop is set toward back of cart
and tighten secruely.
Step 8
Insert hinge pin in bottom of right
side door into hole in bottom right
front cart leg then align door with
right side door bracket. Depress
spring pin located on top edge of
door and slide door toward right
side door bracket until spring pin
locks into hole in door bracket.
Repeat for other door.
Hinge Pin
