Page | 20

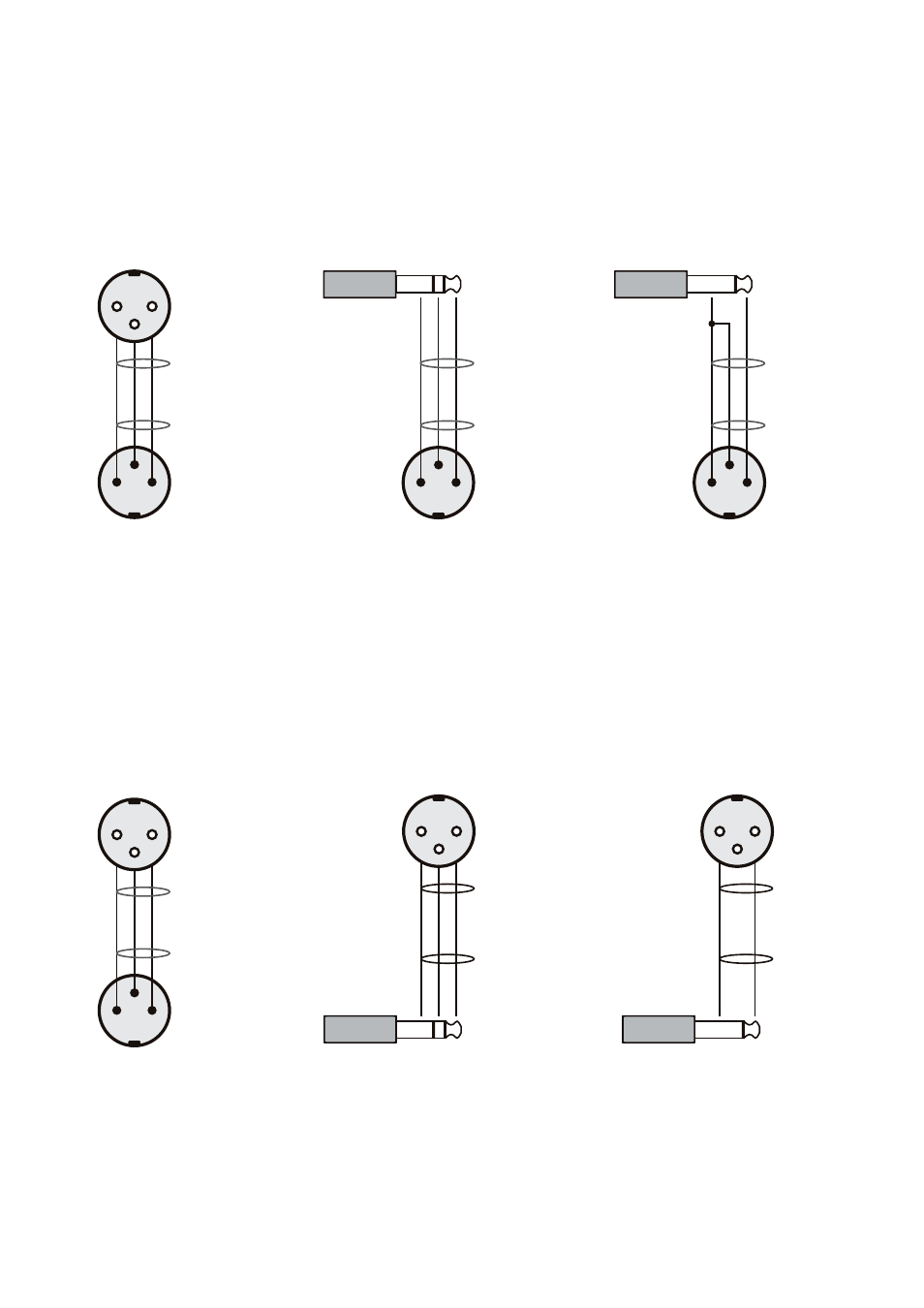

Input and output cables
XLR Plugs seen from solder side
SDD3 Male Plug
1
2
3
1
2
3
G
Female Plug
SDD3 Male Plug
1
2
3
TRS (Stereo) Jack
Jack output (balanced) - XLR input
Tip
Ring
Sleeve
- Pin 2 (Hot)
- Pin 3 (Cold)
- Pin 1 (Shield)
XLR output - XLR input
Pin 2
Pin 3
Pin 1
- Pin 2 (Hot)
- Pin 3 (Cold)
- Pin 1 (Shield)
XLR output - Jack input (balanced)
Pin 2
Pin 3
Pin 1
- Tip (Hot)
- Ring (Cold)
- Sleeve (Shield)
TRS (Stereo) Jack
1
2
3
SDD3 Female Plug
Jack output (unbalanced) - XLR input
Tip
Sleeve
Sleeve
- Pin 2 (Signal)
- Pin 3 (Shield)
- Pin 1 (Shield)
SDD3 Male Plug
1
2
3
(Mono) Jack
TRS (Stereo) Jack
1
2
3
SDD3 Female Plug
XLR output - Jack input (unbalanced)
Pin 2
Pin 3
Pin 1
- Tip (Signal)
- No Connection
- Sleeve (Shield)
SDD3 Input
SDD3 Output
Male Plug
1
2
3
1
2
3
SDD3 Female Plug
XLR output - XLR input
Pin 2
Pin 3
Pin 1
- Pin 2 (Hot)
- Pin 3 (Cold)
- Pin 1 (Shield)
