Sub Mode
This switch is used to switch the Low Output mode between Mono and Stereo. In Mono mode
both low outputs are summed together and both low outputs produce the same signal.
Sub EQ
This switch turns on the low frequency enhancement circuitry which boosts frequencies around
60Hz to enhance the lowest frequency band. This also works in full range mode (LPF off) to provide
a bass enhancement to a full range signal.
POWER
WWW.KV2AUDIO.COM
KV2 AUDIO, MANUFACTURED IN THE EUROPEAN UNION
230 VAC, 50/60 Hz
MAX 30WATTS
R L
PHASE PHASE PHASE PHASE SUB EQ
ON
OFF
SUB MODE
MONO
L / R
LIM - T
FAST
SLOW
HI
OUTPUT L R
LOW
OUTPUT L / MONO R / MONO
INPUT
180˚
0˚
180˚
0˚
180˚
0˚
180˚
0˚ SERIAL NUMBER
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE
THIS PANEL OR ANY ATTACHED COMPONENTS. NO OPERATOR SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. TO
REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
R L
LIM - T
FAST
SLOW
INPUT
Input
Balanced Female XLR connectors for connecting Left and Right
audio signal.
Limiter time switch
The “LIM-T“ switch adjusts the limiter time between either fast
or slow, adjusting the attack and decay at the same time.
PHASE PHASE
HI
OUTPUT
L R
180˚
0˚
180˚
0˚
Hi Output
Balanced Male XLR connectors for sending Left and Right high
frequency audio signal.
Phase Switch
These switches reverse the polarity of the high frequency band
output signal.
POWER
230 VAC, 50/60 Hz
MAX 30WATTS
Power Switch
Used to turn the SAC2 on or off.
Plug power connector
For connection to a standard IEC 3-pole AC connector.
Before connecting make sure that the mains voltage corresponds to
the SAC2's voltage requirements as stated on the unit.
PHASE PHASE SUB EQ
ON
OFF
SUB MODE
MONO
L / R
LOW
OUTPUT
L / MONO R / MONO
180˚
0˚
180˚
0˚
Low Output
Balanced Male XLR connectors for sending Left and
Right low frequency audio signal.
Phase Switches
These switches reverse the polarity of the low frequency
output signal.
Features

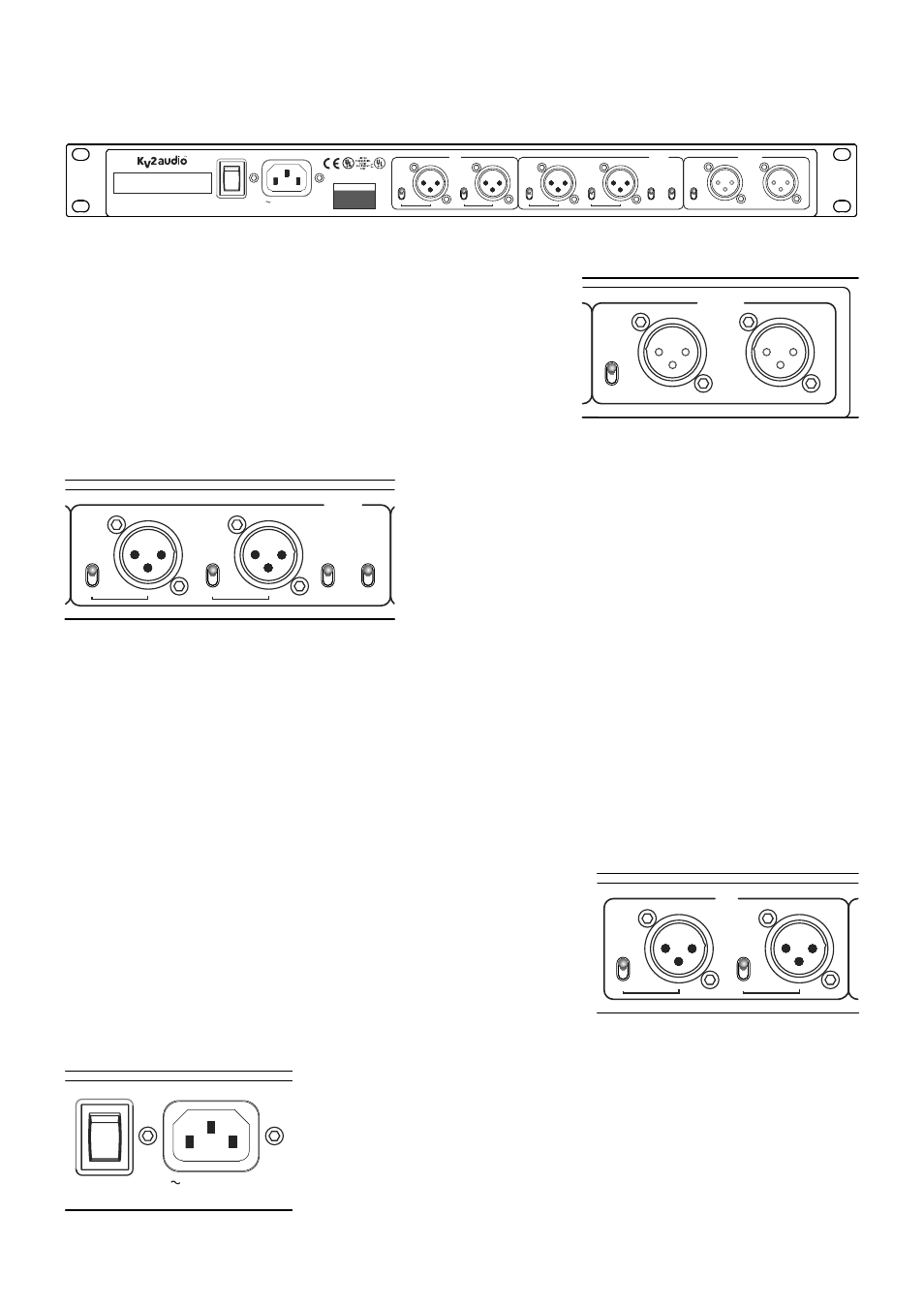

Rear Panel
