4.2 FULL RANGE VOCAL MODE
If the VHD2.0 is being used solely for vocal reinforcement & light music playback then the
VHD2000 is used with the associated ‘Full Range Vocal’ switch depressed. A 60Hz roll-off is added
to the system to protect the VHD2.0.
Note: in this mode the subwoofer outputs will be muted to prevent incorrect use of the system.
4.3 USING THE MID/HI INSERT
The Mid/Hi Insert point gives you the ability to ‘insert’ a signal processing device into the mid/hi
signal chain. For instance in some instances it may be necessary to ‘delay’ the signal going to the
VHD2.0 using a delay line. The Main Input is used as the system input, as per Normal Mode, but
the Mid/Hi insert switch is switched to ‘Engage’. A feed is taken to the delay line from the ‘Pre
Control Out’ connector and the return from the delay line is connected to the ‘Mid/Hi In’ connec-
tor as per the diagram:

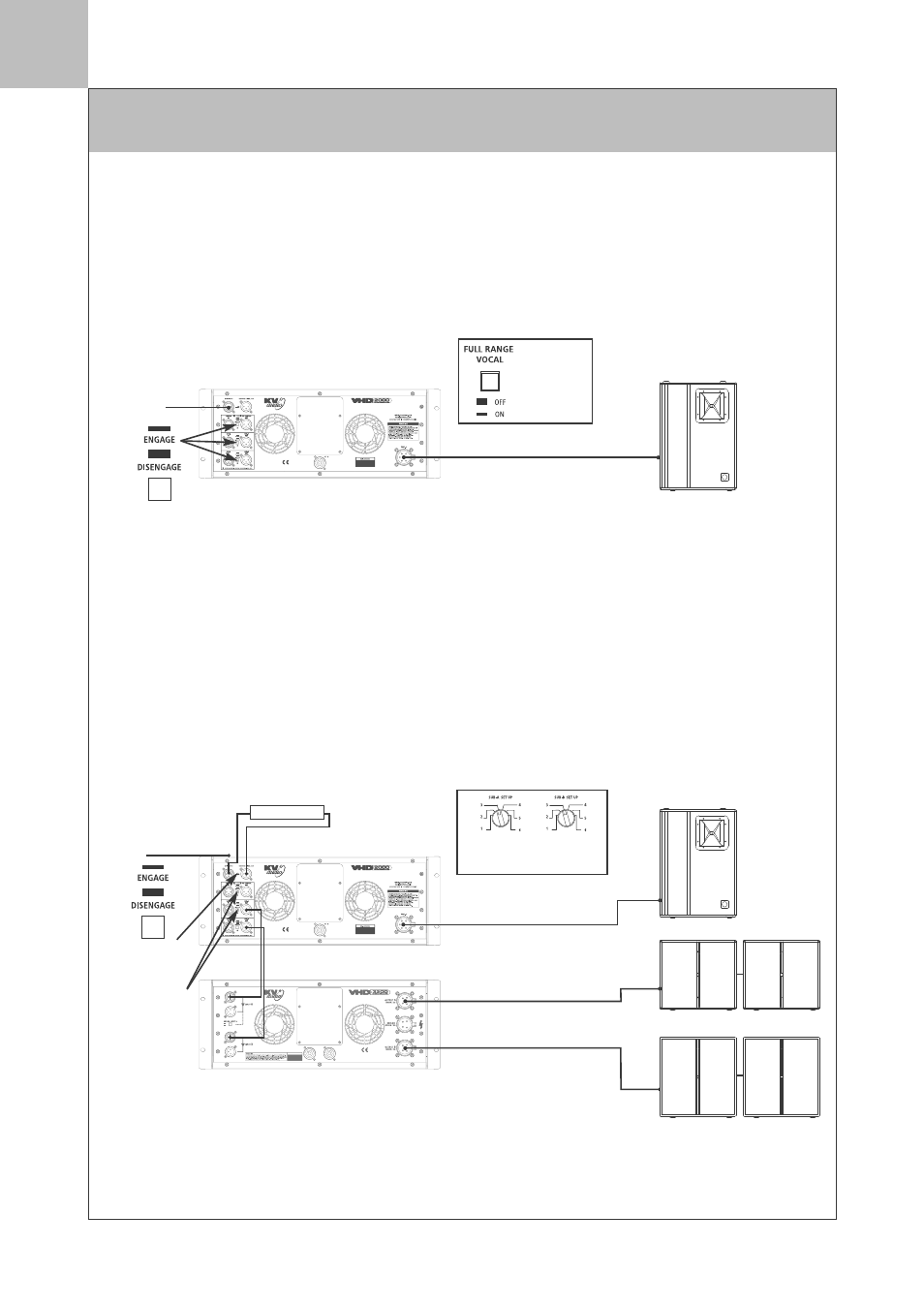

USING THE SYSTEM
Main Signal
Input
All insert
switches in
”Disengage”
position
On front panel
Full Range
Vocal Switch
to ‘ON’
Main Signal
Input
Mid/Hi insert
switch in
”Engage” position
&
Both Sub insert
switches in
”Disengage”
position
VHD2.0
VHD2.16
VHD1.21 VHD1.21
VHD2.16
VHD2.0
DELAY LINE
Both Sub Set Up Switches
on front panel at
position 3 for VHD2.15/VHD2.16
& 2x VHD1.21
4
