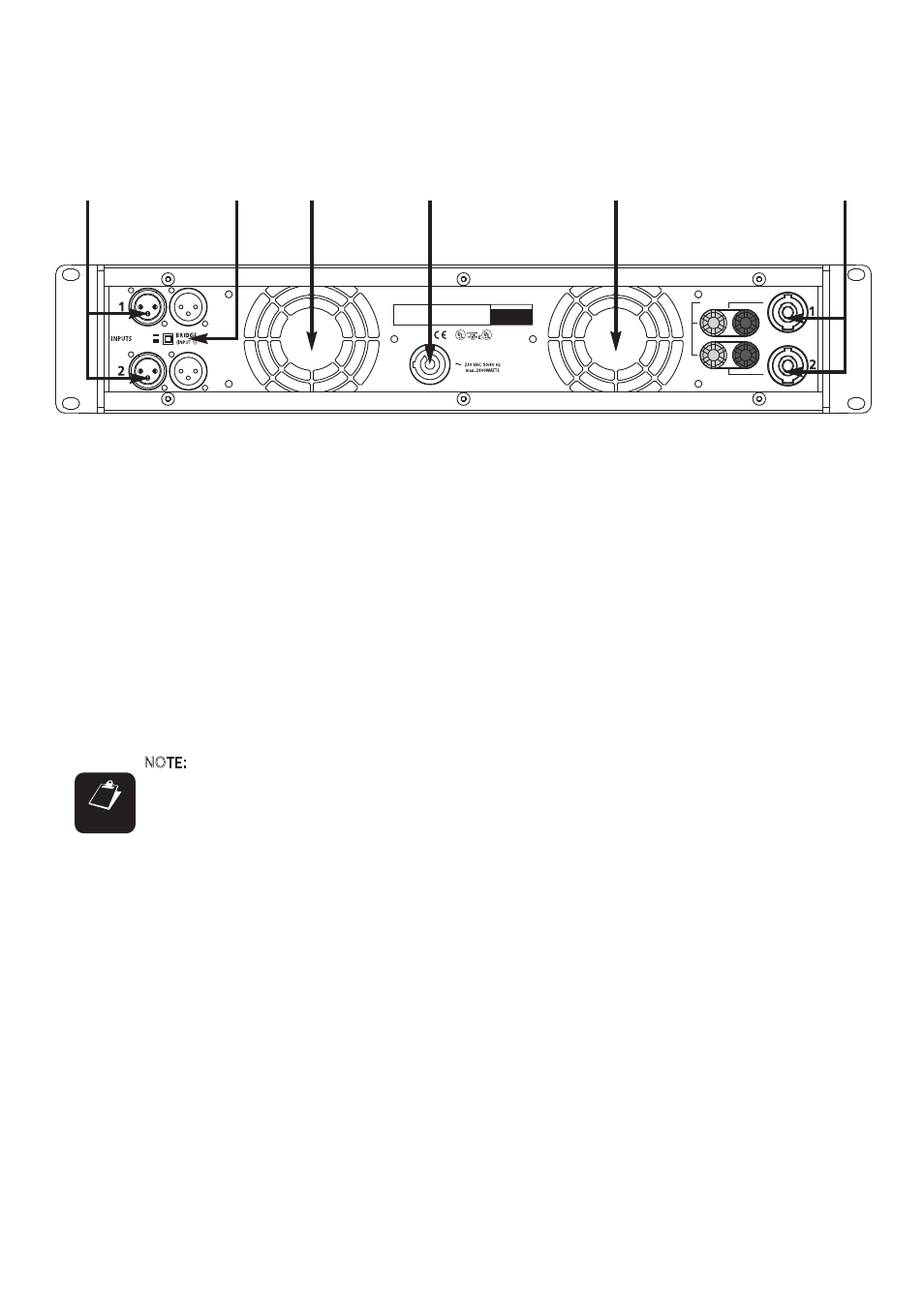

Rear Panel
1) Main Inputs
These are the input connectors for all four channels with associated ‘Through Output’ connectors
for sending signal to other devices.
3) PowerCon Power Connectors
The ESP2000 accept standard PowerCon terminated AC Mains cables. The ESP2000 uses one
connector per two channels.
4) Fans
The cooling fans operate continuously while the ESP2000 is on. An internal temperature sensor
increases the speed of the fans during high temperature conditions. Air enters through the front
grille and exits through the rear. Be sure to allow adequate air flow to the front of the rack in which
the ESP2000 is mounted.
5) Main Outputs
Each channel of the ESP2000 is equipped with binding posts and Neutrik Speakon® connectors on
the Main Outputs. The minimum recommended output is 2Ω. When running in Bridge Mono Mode 4Ω.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE
THIS PANEL OR ANY ATTACHED COMPONENTS. NO OPERATOR SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. TO
REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE. SERIAL NUMBER
WWW.KV2AUDIO.COM
KV2 AUDIO, MANUFACTURED IN THE EUROPEAN UNION
2000W / 4Ω
BRIDGE
min. 2Ω OUTPUTS
OFF
ON
1 2 4 3 4 5
NOTE: If Bridge Mono is your specific requirement, particularly driving subwoofers, you may prefer to utilise a KV2
Audio VHD3200 subwoofer amplifier which will offer the same power output but with improved performance. For
applications where the high powered loudspeaker load is required to produce a full range signal, including Mid and
High frequency reproduction above 1kHz an ESP2000 will offer superior results.
NOTE
2) Bridge Mono Mode
As well as being a high quality stereo channel amplifier solution the ESP2000 is capable of working in
“Bridge Mono”mode. This requires the utilisation of two channels working together to produce
a larger single output - suitable for driving large subwoofers or high powered full range boxes.
Use channel INPUT 1 only as bridge mode input, INPUT 2 is unconnected. Plug positive speaker
input pin at positive (RED) OUTPUT 1 and negative speaker pin at positive (RED) OUTPUT 2.
