YOU WILL BE WORKING AROUND THE ENGINE AND EXHAUST SYSTEM
DURING INSTALLATION. ENSURE THAT THE ENGINE AND
EXHAUST SYSTEM HAVE FULLY COOLED TO PREVENT INJURY.
STEP 2
Remove the stock passenger peg from the peg mount. The hardware will be reused .
STEP 3 Install the model specific spline peg adapter (sold separately) in place and secure
using the stock passenger peg hardware.

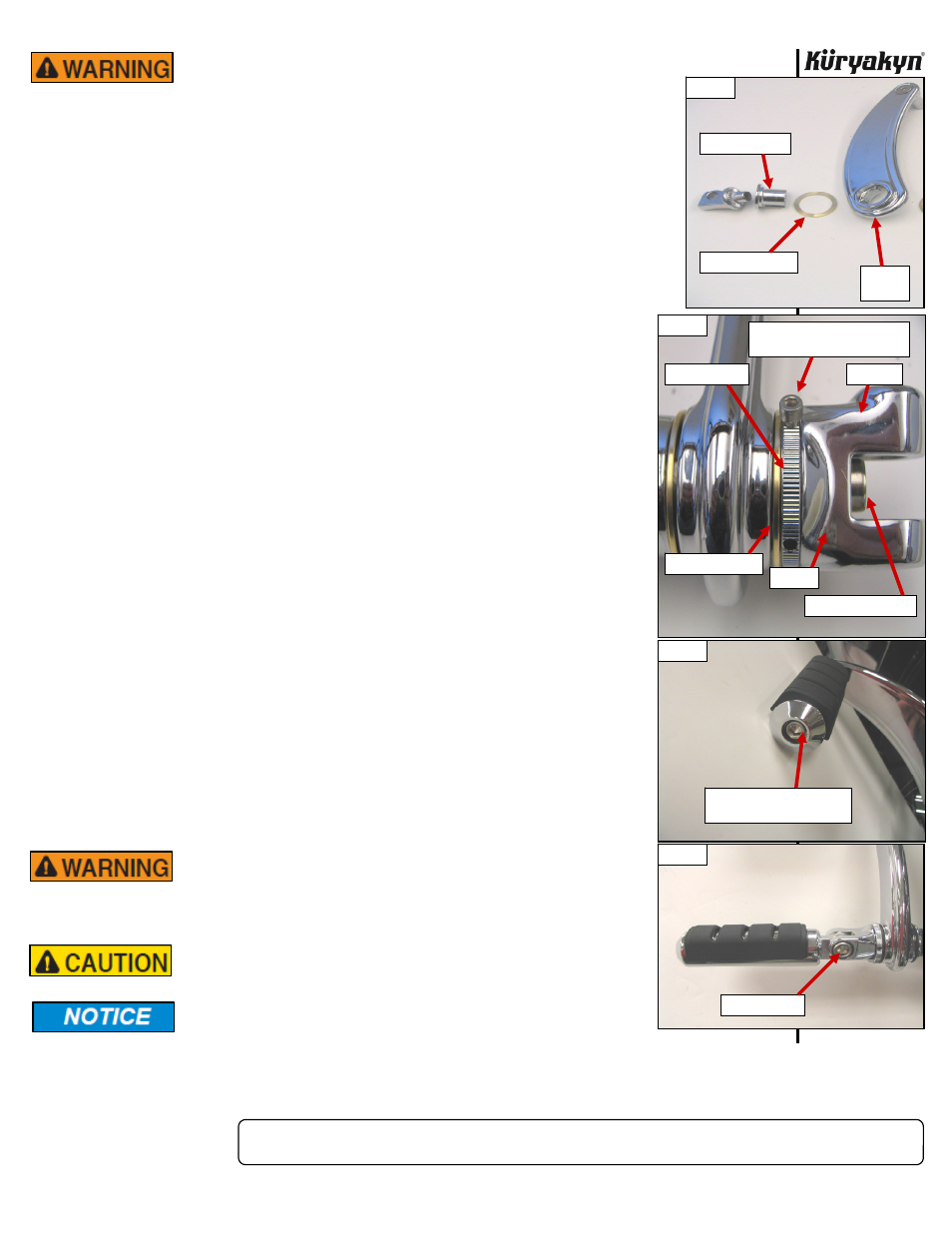

STEP 4 As shown in PIC 1, locate the spline mount, one brass bushing and the swing arm.
STEP 5 Slide the brass bushing over the spline mount. PIC 1 shows how the swingarm
and spline mount go together, the spline mount also acts as a stop for the
swingarm. Make sure that you adjust the spline mount so that the arm moves
and stops as desired. Hold this assembly in place on the spline peg adapter
installed in Step 3.
STEP 6
Hold the clevis, knurled nut and brass bushing assembly in place locking the
splines together with the assembly installed in Step 5.
STEP 7 Shown in PIC 2, thread the 5/16-18 x 1-3/8" Socket Head Cap Screw though
the end of the clevis, through the entire assembly and in to the spline peg
adapter. Make sure the knurled nut is threaded all the way to the clevis.
STEP 8 Test for clearance around the swing arm and mount. Move arm forward and
back completely.
STEP 9 Adjust the tension of the swing arm by loosening the socket head bolt and
rotating the knurled nut (rotating toward the arm will provide more tension).
When adjusted as desired, tighten the small socket head bolt on the knurled nut
and test the swing arm for proper tension again.
NOTE: There are two holes in the knurled nut. If you can not get the knurled
nut tight enough, insert a small screwdriver or hex wrench in to these
holes and rotate to aid in tightening the knurled nut.
STEP 10 Mount the Trident peg to the swing arm using the hardware included with the
peg (PIC 3). Tighten the screw securing the peg.
STEP 11
Install the male Trident peg with male mount to the clevis. It may be necessary
to use the included wave washers between the clevis and the male mount.
STEP 12 As shown in PIC 4, secure the peg in place in the clevis with the 3/8-16 x 1"
Socket Head Cap Screw.
STEP 13 Adjust the peg as desired by loosening the screw at the end of the peg and
rotating the peg. Tighten the screw when adjusted as desired.
THE FOLDING ARM IS INTENDED AS A FOOTREST AND IS
NOT INTENDED TO BE USED FOR MOUNTING OR
DISMOUNTING THE MOTORCYCLE OR TO SUPPORT THE
FULL WEIGHT OF THE PASSENGER.
Ensure that the installation of this product does not interfere
with the proper operation of the motorcycle before riding.
It is the installer’s responsibility to ensure that all of the fasteners
(including pre-assembled) are tightened before operation of the
motorcycle. Küryakyn will not provide warranty coverage on
products or components lost due to improper installation or lack of maintenance.
Periodic inspection and maintenance are required on all fasteners.
Ride On!
RETRACTABLE PASSENGER PEGS
INSTALLATION
PIC 1
SPLINE MOUNT
BRASS BUSHING
SWING
ARM
PIC 2
BRASS BUSHING
KNURLED NUT
CLEVIS
SOCKET HEAD BOLT
SOCKET HEAD BOLT USED TO
LOCK KNURLED NUT
CLEVIS
PIC 3
THREAD BOLT TO MOUNT
ON TOP OF ARM
PIC 4
CLEVIS BOLT
