PAGE
2
Use the supplied anti-seize for any fasteners; this will prevent
galling and make future removal of fasteners easier.

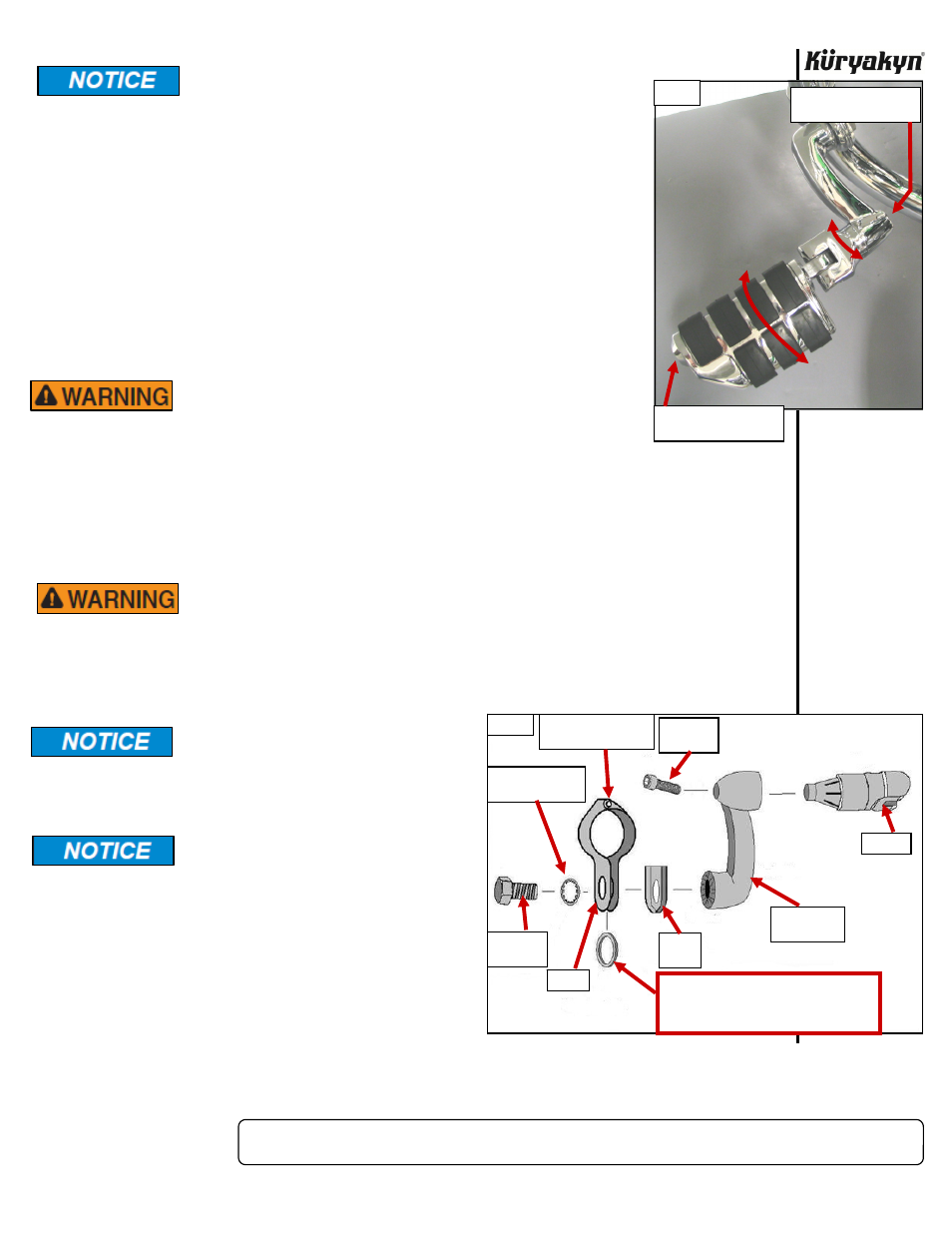

STEP 3 Place the Magnum Quick Clamp around the engine guard tube (making sure
that the head of the hinge pin is facing up) that you choose as your mounting
point. Close the clamp; insert the bolt that was removed in STEP 2, being sure
to use the internal tooth lock washer, and place the spacer washer in between
the clamp halves. FIG 1
NOTE: Spacer washer must be installed between clamp halves! Failure to do so
may result in unsecured clamping or damage to the clamp.
STEP 4 Place the lock plate on the other side of the clamp so that the smooth side is
facing the clamp and the splines are facing outwards toward the arm.
STEP 5 Place the Longhorn arm on the clamp and secure with the 1/2” fastener. DO
NOT fully tighten them at this point. Sit on the bike and determine the desired
arm orientation, adjust as needed and tighten the 1/2” fastener securely.
FOOTPEGS MUST BE INSTALLED SO THEY WILL FOLD
UPWARD AND REARWARD IF HIT BY ANY OBJECT. FAILURE
TO ADJUST THE FOOTPEGS TO OPERATE IN THIS MANNER
COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 6
The angle of the peg may be adjusted by loosening the 5/16” fastener that secures the clevis to
the arm (PIC 1 and FIG 1) or by loosening the 5/16” fastener in the end of the peg. PIC 1 Rotate
the clevis and/or peg to the desired position. Tighten the fastener(s) securely.
STEP 7 Repeat STEP 2 through 6 for the opposite side.
CHECK TO MAKE SURE THAT THERE IS PROPER CLEARANCE WHEN
CORNERING. LOSS OF CONTROL OF THE MOTORCYCLE AND
SERIOUS INJURY MAY OCCUR IF THE PEG/ARM IS NOT POSITIONED
PROPERLY. REPOSITION THE LONGHORN ARM IF NECESSARY SO
THAT THERE IS ADEQUATE CORNERING CLEARANCE.
STEP 8 Tighten all fasteners.
Check clearance for proper operation of
controls. Highway Pegs provide additional
positions to place your feet/new-riding
positions. Confirm clearance and relation
of the position of your feet to the shifter
and the brake pedals.
It is the installer’s responsibility to ensure
that all of the fasteners (including
pre-assembled) are tightened before
operation of the motorcycle. Küryakyn will
not provide warranty coverage on products
or components lost due to improper
installation or lack of maintenance.
Periodic inspection and maintenance are
required on all fasteners.
Ride On!
LONGHORN OFFSET MOUNTS
INSTALLATION
SPACER WASHER MUST BE INSTALLED
BETWEEN CLAMP HALVES! FAILURE TO
DO SO MAY RESULT IN UNSECURED
CLAMPING OR DAMAGE TO THE CLAMP.
INTERNAL TOOTH
LOCK WASHER
CLAMP
LOCK
PLATE
LONGHORN
ARM
CLEVIS
5/16”
FASTENER
FIG 1
1/2” HEX
FASTENER
MAKE SURE HEAD OF
HINGE PIN FACES UP
USE THIS FASTENER TO
ADJUST CLEVIS
USE THIS FASTENER TO
ADJUST PEG
PIC 1
