Kuryakyn 4078 ERGO II/6 ARMS with MINI BOARDS - Manual (Page 3)

PAGE
3
STEP 9
Repeat Steps 2 through 8 for the opposite side.
ADJUSTING THE POSITION OF SWINGARM AND MINI
BOARDS
STEP 10 Adjust for Longer or Shorter Inseam Lengths:
• Loosen the 1/2-13 Button Head Fastener securing the swingarm to the
mount. Pull the swingarm out of the interlocking cogs.
•
Rotate the swing arm to the desired position then push the arm back
into the interlocking cogs; be sure the swingarm is either level with the
engine guard, or above the engine guard. NEVER position the
swingarm below the engine guard! FIG 1 Retighten the 1/2”-13
fastener.
IT IS THE INSTALLERS RESPONSIBILITY TO ENSURE
THERE IS SUFFICIENT CORNERING CLEARANCE
BEFORE RIDING. ALWAYS POSITION THE SWINGARM
EITHER LEVEL WITH, OR ABOVE THE ENGINE GUARD.
POSITIONING THE SWINGARM BELOW THE ENGINE
GUARD WILL GREATLY DECREASE CORNERING
CLEARANCE WHICH MAY CAUSE LOSS OF CONTROL
RESULTING IN SERIOUS INJURY OR DEATH.
STEP 11
Adjust the Clevis Angle:
• Loosen the 1/2-13 Hex Head fastener securing the swingarm to the
clevis. Pull outward on the clevis and Mini Board to clear the roll pins.
•
Rotate the clevis and Mini Board assembly to the desired angle then
push the assembly back into the swingarm, making sure the roll pins in the clevis line up with
the holes on the swingarm, and re-tighten the fasteners. Install the black plastic thread plug in
the swingarm. PIC 4
STEP 12 Adjust the Mini Board Angle:
There are three mounting holes with splines around them in the Mini Board. You may use these to
locate the Board forward or rearward, tilt up or down, from the stock peg (center) location. To
adjust the Mini Board, remove the 5/16”-18 socket head cap screw and washer from the Mini
Board. This will leave the adapter on the motorcycle. Choose your location and orientation of
the Mini Board. Insert the 5/16”-18 socket head cap screw, with flat washer, through the Mini
Board and thread it into the mount making sure the splines on the Mini Board are engaged in the
splines on the mount in the desired location. Tighten securely.
STEP 13 With the motorcycle on the center stand, you should have a minimum of 15” measured
from the rear outside edge of the Mini Board to the ground to maintain ground
clearance. PIC 4
STEP 14 PIC 4 shows the complete assembly.
It is the installer’s responsibility to ensure that all of the fasteners (including
pre-assembled) are tightened before operation of the motorcycle. Küryakyn will not
provide warranty coverage on products or components lost due to improper
installation or lack of maintenance. Periodic inspection and maintenance are
required on all fasteners.
Ride On!
ERGO II with MINI BOARDS
INSTALLATION

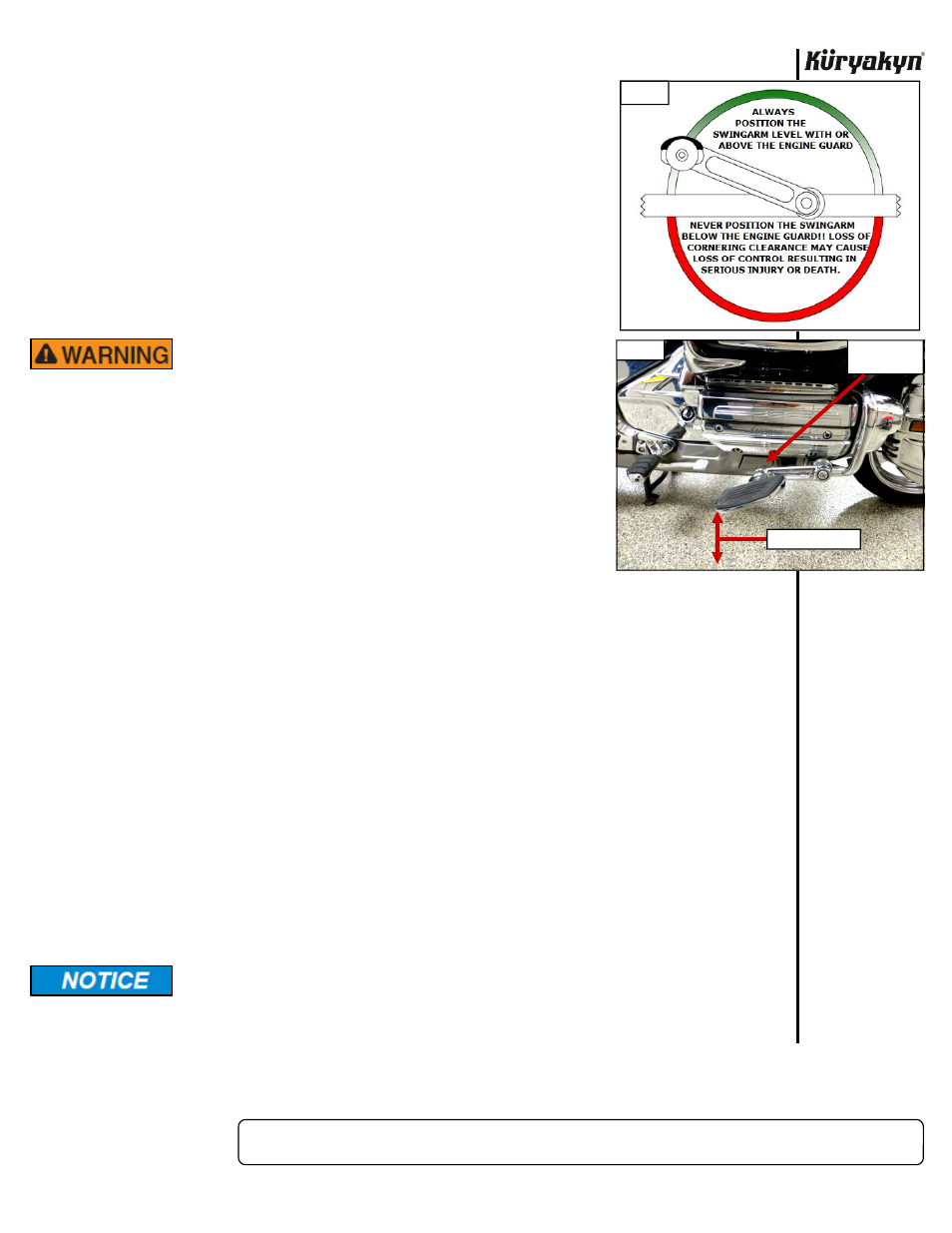

FIG 1
PIC 4 BLACK PLUG
GOES HERE
MINIMUM OF 15”
