Kuryakyn 9877 BLACK VELOCIRAPTOR AIR CLEANER KIT - Manual (Page 3)

PAGE
3
STEP 8
After the Hoses are fit, use the included Cable Ties to help secure the Breather Hoses to the Hose
Fittings and the Breather Bolts.
STEP 9
Completely disassemble the Velociraptor Assembly. Make note
as to how it is assembled, it will help for reassembly. FIG 1
STEP 10
Locate the Black Cone from the Velociraptor Assembly. Insert
the three 1/4”–20 Socket Head Cap Screws through the
mounting holes
in the Black Cone from the inside. Place one of
the included non-adhesive backed Gaskets over the three
mounting Screws now protruding from the back of the Black
Cone. DO NOT place a screw through the float bowl vent hole
- this hole is the one in the 10-o’clock position.
STEP 11
With the adhesive backed Gasket in place between the Breather Adapter and the throttle body—at
this time you should have two Gaskets installed, one directly behind the
Black Cone and one between the Breather Adapter/throttle body—secure
the assembly to the carburetor. DO NOT over tighten the fasteners; the alumi-
num will strip easily.
STEP 12 Snap the black Super Ring into place on the installed Velociraptor. Ensure it is
securely snapped into place before continuing with the installation. PIC 3.
STEP 11
Place the Filter into the Velociraptor, secure with the chrome Steel Mesh and the
Outer Ring. Line up the holes in the Mesh with those of the Outer Ring, secure
with five 1/4”-20 x 1/2” Socket Head Cap Screws.
STEP 13
Double check the tightness of all related fasteners, check for hose clearance and check
throttle for correct operation, making sure it returns properly, before starting bike.
ROTATE THROTTLE AND CHECK THAT IT MOVES FREELY AND RETURNS
TO CLOSED BEFORE STARTING BIKE. FAILURE OF THE THROTTLE TO
RETURN COULD RESULT IN LOSS OF CONTROL CAUSING SERIOUS
INJURY OR DEATH.
It is the end user’s responsibility to ensure that all of the fasteners (including
pre-assembled) are tightened before operation of the motorcycle. Küryakyn will
not provide warranty coverage on products or components lost due to improper
installation or lack of maintenance. Periodic inspection and maintenance are
required on all fasteners.
Ride On!
BLACK VELOCIRAPTOR AIR CLEANER
INSTALLATION

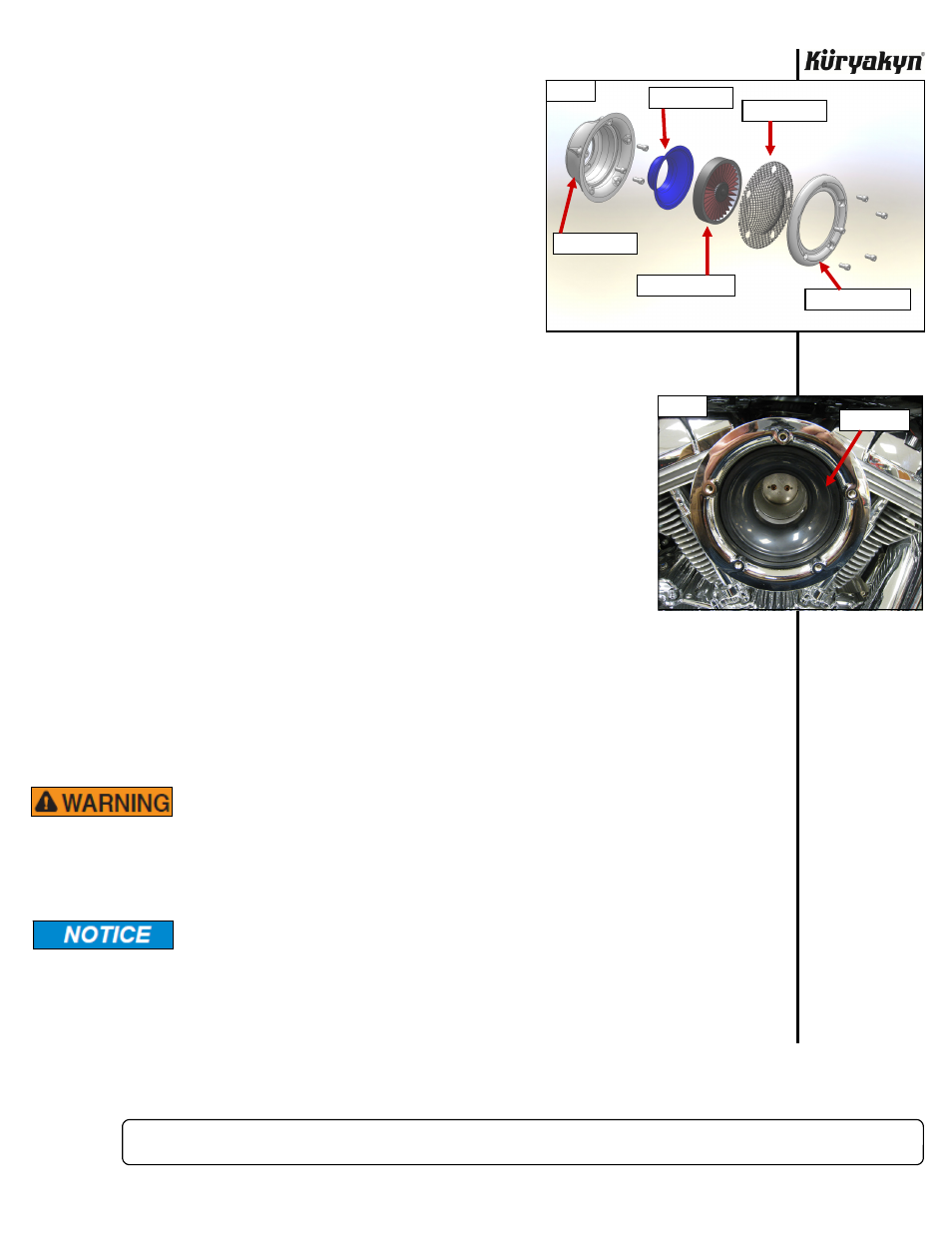

FIG 1
BLACK CONE
SUPER RING
FILTER ELEMENT
MESH SCREEN
OUTER TRIM RING
PIC 3
SUPER RING
