Kuryakyn 5260 TRUNK DOOR ORGANIZER - Manual (Page 2)

PAGE
2

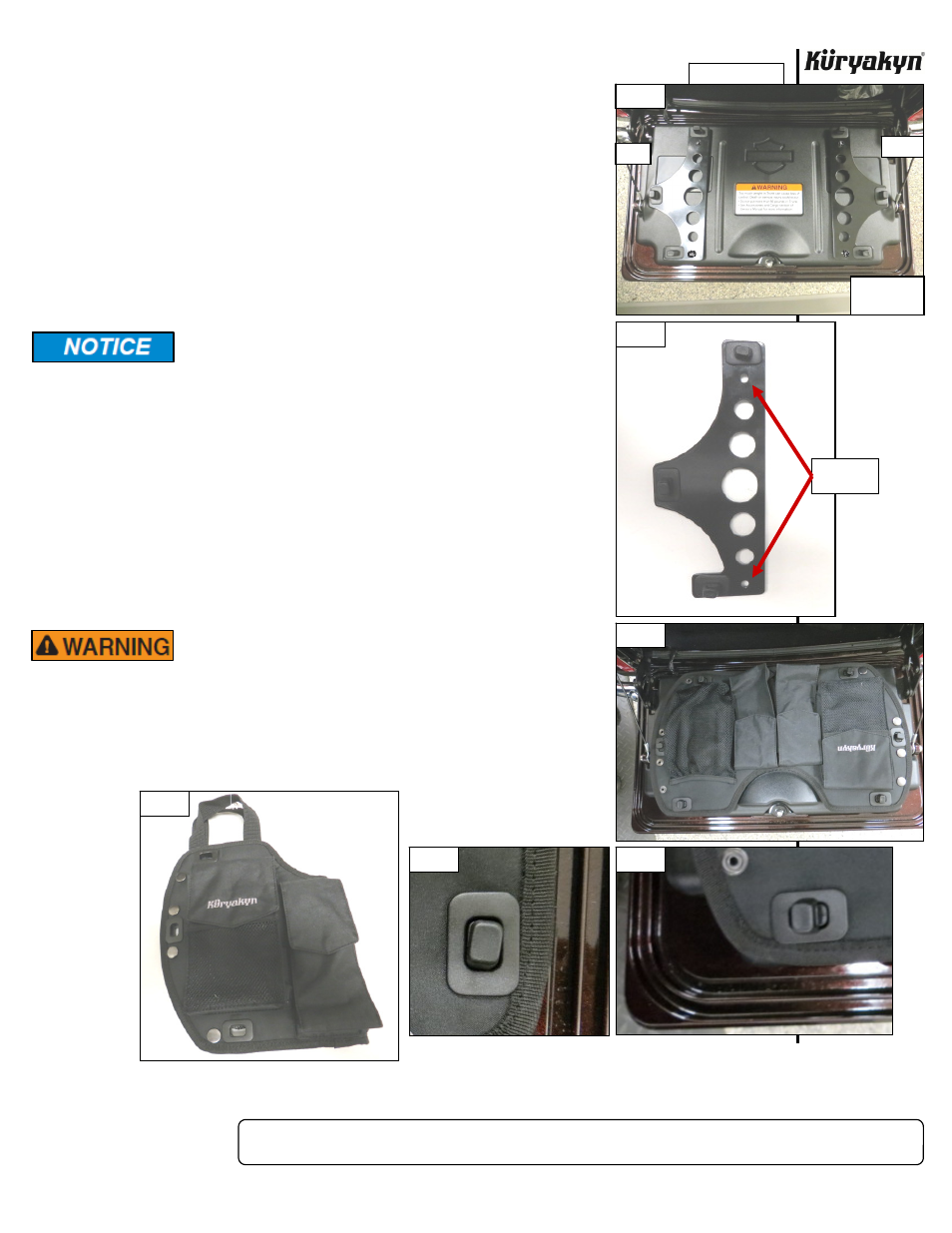

STEP 3 Starting with the left (sitting on the trike) mounting plate. PIC 2
STEP 4 Place one of the included spacers into each of the two holes in the trunk
door for the left mounting plate. Insert one of the included button socket
cap screws through the each mounting hole in the left mounting plate.
PIC 3 Tighten both button socket cap screws securely.
STEP 5 Repeat Step 4 for the right mounting plate.
It is the installer’s responsibility to ensure that all of the
fasteners (including pre-assembled) are tightened before
operation of the motorcycle. Küryakyn will not provide
warranty coverage on products or components lost due to
improper installation or lack of maintenance. Periodic
inspection and maintenance are required on all fasteners.
STEP 6
Attach the Trunk Door Organizer to the mounting plates by inserting one
of the lock tabs through each location on the Organizer. PIC 4 Turn the
lock tabs 90° to hold the Organizer in place. PIC 5
STEP 7 To remove the Trunk Door Organizer, turn the lock tabs 90° so they line
up with the slots (PIC 6) and pull the Organizer up. The Organizer can
now be folded and snapped together. PIC 7
NEVER EXCEED THE MANUFACTURER’S
RECOMMENDED LOAD CAPACITY. EXCESS LOADING
ON THE OF THE TRUNK ORGANIZER COULD CAUSE
DAMAGE TO YOUR MOTORCYCLE, LOSS OR SERIOUS
INJURY. KÜRYAKYN IS NOT RESPONSIBLE FOR ANY
DAMAGE, LOSS, OR INJURY CAUSED BY EXCEEDING
THE MANUFACTURER’S LOAD CAPACITY.
Ride On!
TRUNK DOOR ORGANIZER/TRIKES
INSTALLATION
LEFT
RIGHT
PIC 2
PIC 3
MOUNTING
HOLES
PIC 5
PIC 4
PIC 6
PIC 7
TRUNK
DOOR OPEN
FRONT OF TRIKE
