Ride on, Tri-line accents for tour pak™ — ‘14-up tour, Test fit – Kuryakyn 6909 TRI-LINE ACCENTS for TOUR PAK — 14-UP TOURING User Manual
Page 2: Install, Installation
PAGE
2
TEST FIT:
STEP 3
Test fit the Left Tri-Line Accent as shown in PIC
2. Use masking tape to make alignment marks.
NOTE:
Use masking tape to hold both
of the Accents in place while
you align them.
STEP 4
Test fit the Right Accent on the other side; use
masking tape to make alignment marks.
Remove the Accents.
INSTALL:
STEP 5
Use your fingernail to rub the adhesive backing; this will activate the adhesive. Remove and dis-
card the backing.
STEP 6
Using the marks made in
STEPS 3 and 4
, align the Left Tri-Line Accent and press it into place
for one minute; full bonding will occur after 24 hours. Remove and discard the masking tape.
STEP 7
Repeat
STEPS 5 and 6
for the other side.
TRI-LINE ACCENTS for TOUR PAK™ — ‘14-UP TOUR-
INSTALLATION
Ride On!

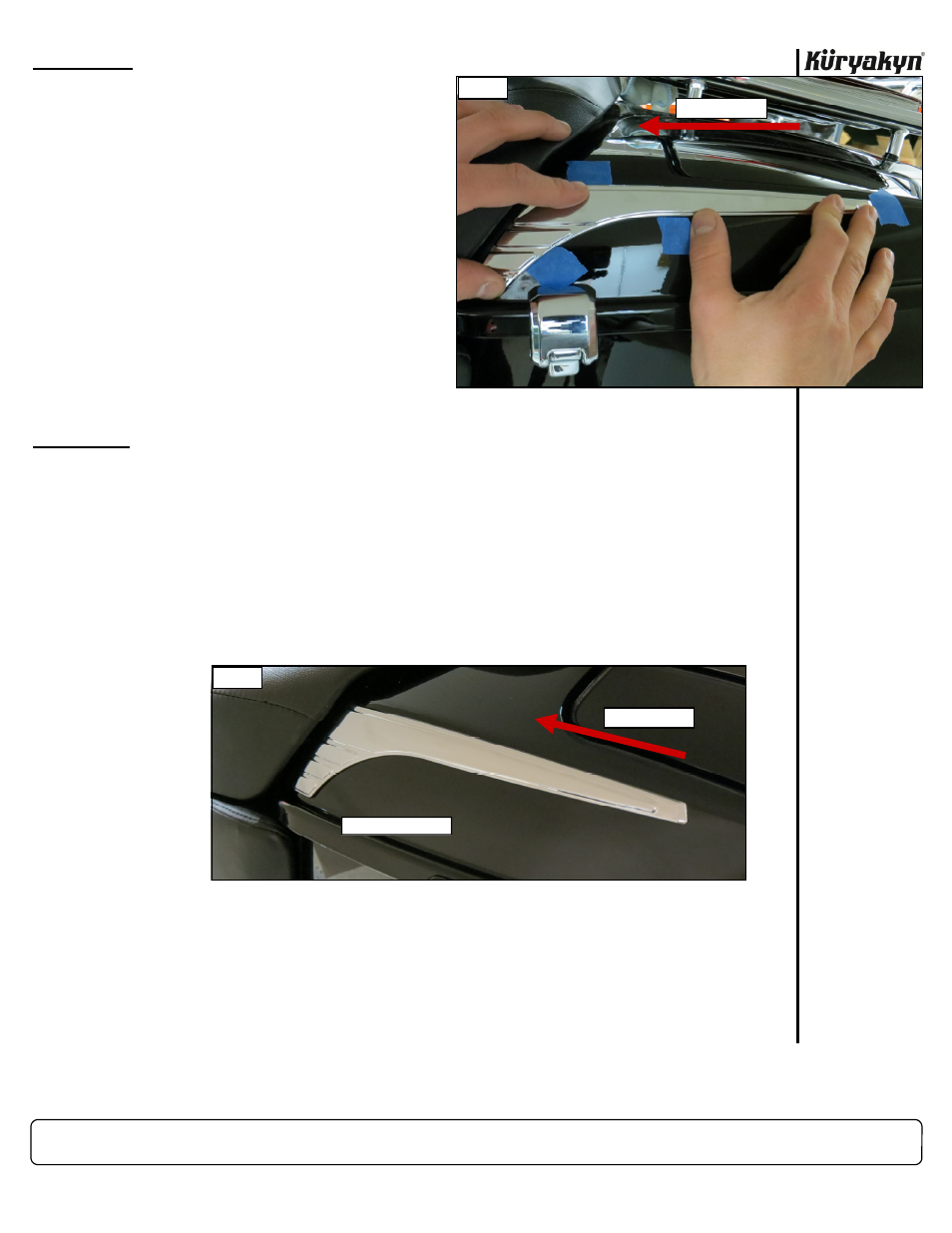

PIC 2
FRONT OF BIKE
PIC 3
CLUTCH-SIDE (LEFT)
FRONT OF BIKE
