DESCRIPTIONS
FR6000 Oxygen & Air Meters offer economy, accuracy, and
reliability in an attractive, easy-to-use instrument. Made with a high-
impact resistant Lexan ® hood and flow tube, combined with a sturdy
machined brass base, these meters will stand up to the rigors of
clinical or field use. The durable stainless steel stem valve assures
precise control throughout the full flow range, and provides for
positive flow shut-off. O-ring seals eliminate the leaks that are
commonly associated with plastic base models. Standard meters are
calibrated at 50 PSIG inlet pressure for accurate flow measurement
under a variety of operating conditions. Quotations for calibration to
international specifications are available upon request. Lexan ® is a
registered trademark of General Electric.
The Oxygen Flowmeter Manifold System, available in 2-bay or
3-bay configurations, is designed to deliver oxygen to separate
locations from a single source. The system consists of a precision
machined stainless steel manifold with Series FR6000 flowmeters.
The system is fully assembled, flow & leak tested, and is available in
three flow ranges: 3-1/2 LPM, 8 LPM and 15 LPM of Oxygen.
SPECIFICATIONS
Accuracy ± 0.2 LPM from 1/8 LPM to 4 LPM
± 0.4 LPM from 4 LPM to 8 LPM
± 0.6 LPM from 8 LPM to 15 LPM
Connections 1/8" FNPT Inlet
9/16 - 18" Male DISS Outlet
Flow Conditions Pressure Compensated @ 50 PSIG
(other pressures available)
Temperature 150º F / 65º C Maximum
Pressure 100 PSIG / 69 Bar Maximum
Seals Buna-N
ORDERING INFORMATION
for Manifold Systems
DESCRIPTION PART NUMBER
3-Bay Manifold System A009
2-Bay Manifold System A010
Plug for Empty Flowmeter Bay A011
(ordered separately)
Alternate Flowmeter Available
Configurations Upon Request

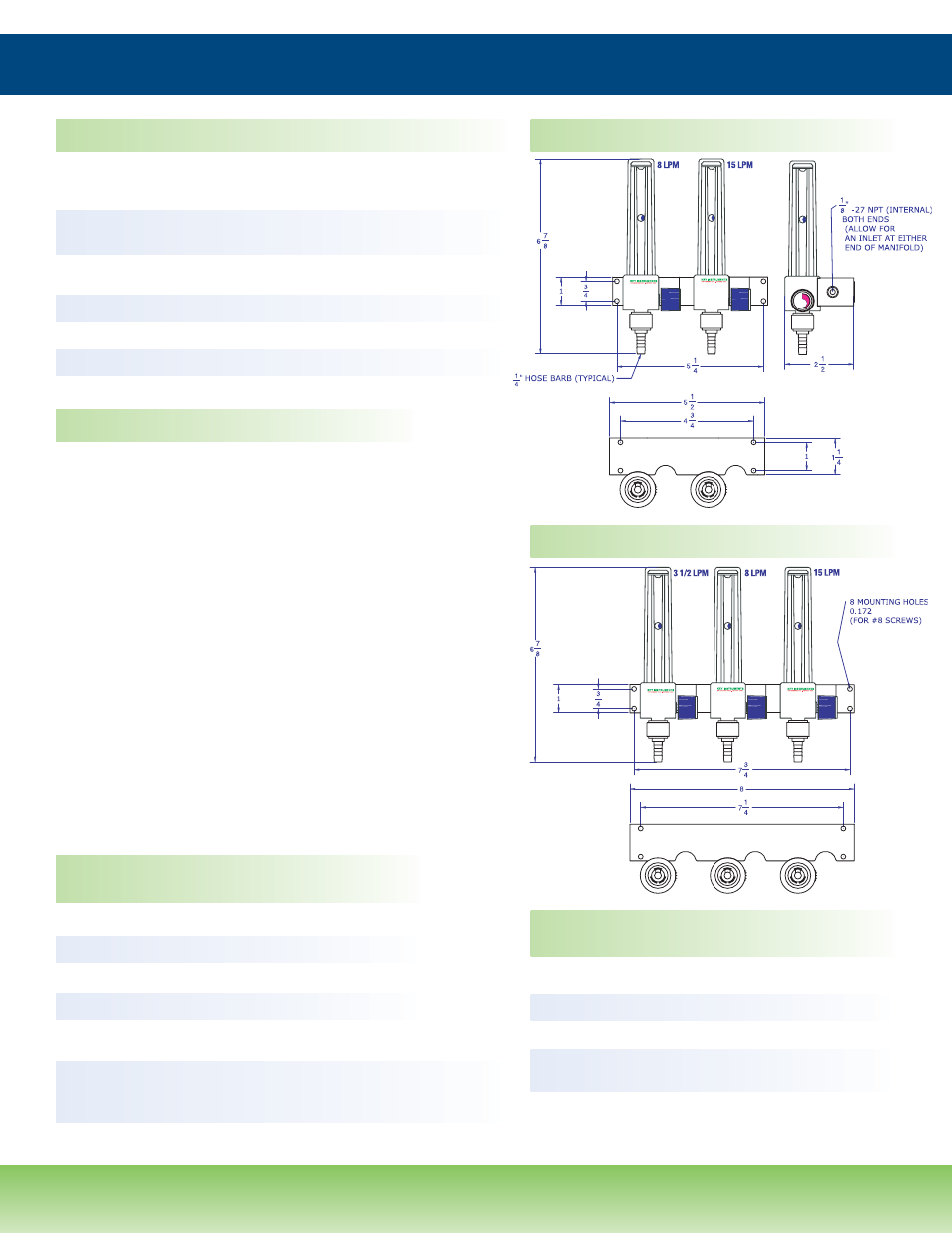

2-Bay Manifold System
3-Bay Manifold System
FDA Registered
Medical Device Manufacturer
ORDERING INFORMATION
for FR6000 Flowmeters
FLOW RANGE OXYGEN METER AIR METER
1/8 - 3 1/2 LPM F024M —
1/4 - 8 LPM F025M F092M
1/2 - 15 LPM F026M F093M
(other gases and flow ranges available)
