Blue Rhino CBC1030W - Manual (Page 3)

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
For great recipes and tips, visit recipes.uniflame.com.
page no.
3
Parts List
1 Lid Handle 55-10-072
2 Air Vent 55-14-857
3 Warming Rack 55-10-073
4 Lid 55-10-074
5 Cooking Grid 55-10-075
6 Top Hinge (2) 55-10-076
7 Bottom Hinge (2) 55-10-077
8 Left Side Handle 55-10-078
9 Bottom Bowl 55-10-079
10 Charcoal Grid 55-10-080
11
Charcoal Grid Support
Rod (2)
55-10-081
12 Control Knob Assembly 55-09-203
13 Control Panel 55-10-082
14 Ash Receiver Slide 55-09-200
15 Right Side Shelf Support 55-10-084
16 Right Side Shelf 55-10-085
17 Control Knob 55-10-086
18 Ash Receiver 55-10-087
19 Left Leg (2) 55-10-088
20 Wheel Leg (2) 55-10-089
21 Bottom Shelf 55-10-090
22 Hub Cap (2) 55-10-432
23 Wheel (2) 55-14-861
24 Axle 55-10-091
25 Ash Receiver Handle 55-10-416
26
Right Side Shelf
Bracket (2)
55-10-417

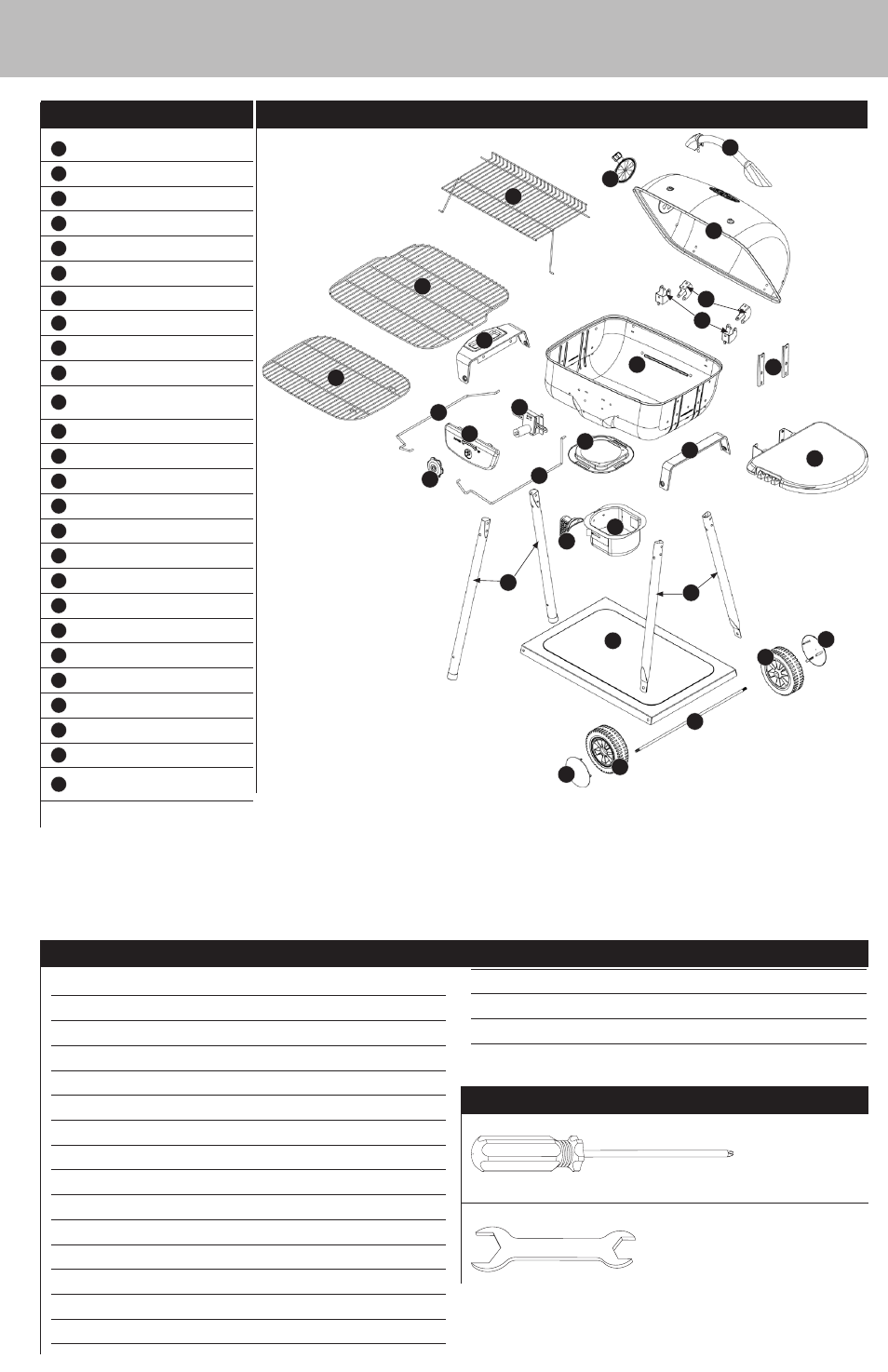

Exploded View
5
17
9
2
10
21
11
1
4
3
22
23
13
14
12
8
16
18
Hardware
A
Screw M4x15 Zinc Plated Phillips Truss Head 1 pc
B
Screw M5x12 Zinc Plated Phillips Truss Head 5 pcs
C
Screw M6x12 Zinc Plated Phillips Truss Head 5 pcs
D
Screw M6x16 Zinc Plated Phillips Truss Head 19 pcs
E
Screw M6x40 Zinc Plated Phillips Truss Head 8 pcs
F
Screw M6x45 Zinc Plated Phillips Truss Head 2 pcs
G
Nut M10 Zinc Plated 2 pcs
H
Cap Nut M6 Zinc Plated 12 pcs
I
Wing Nut M5 Zinc Plated 1 pc
J
Wing Nut M6 Zinc Plated 13 pcs
K
Washer ø5.5 Zinc Plated 4 pcs
L
Washer ø6.5 Zinc Plated 15 pcs
M
Washer ø6.5 Zinc Plated 33 pcs
N
Washer ø6.2 Heat Resistant 12 pcs
O
Lock Washer ø5.5 Zinc Plated 5 pcs
P
Lock Washer ø6.5 Zinc Plated 28 pcs
Q
Pin ø7x 45 Zinc Plated 2 pcs
R
Cotter Pin ø1.4 x 30 Black Coated 2 pcs
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver 1 pc
M6 - M10 Wrench 2 pcs
6
7
15
11
22
23
24
20
19
25
26
