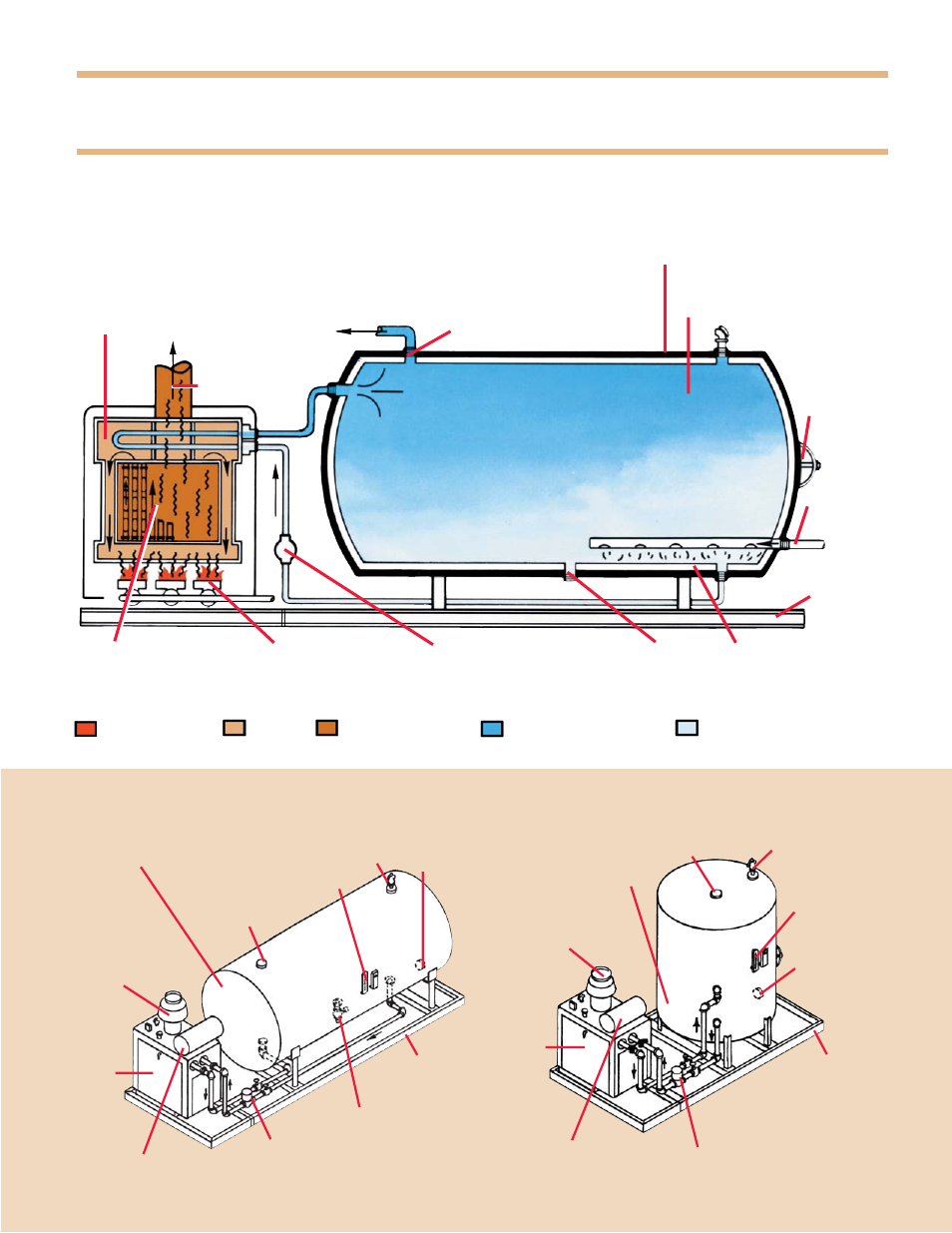

Bryan Water-Pak “Indirect Storage Water Heating”
is scale-free, corrosion-free and trouble-free
Horizontal Heater-Tank Setting AH
This is the secret — Service hot water
circulated continuously through the copper
indirect heat exchanger, absorbing heat from
warm Primary Water. Service hot water does
not come in contact with hot flue gases; thus
it remains below critical scaling and corrosion
temperatures.
Heat transfer fluid (Primary
Water) recirculated by thermal
action up through heater
tubes, past indirect heat
exchanger and down.
Flue gases
to vent.
High temperature combus-
tion gases heat Primary
Water (heater transfer fluid)
only. Burner — gas, oil or
gas-oil combination. Bronze circulation pump — operates
continuously to reduce stratification in
storage tank during standby. Internal tank lining for
corrosion protection —
phenolic-epoxy or
cement. Drain
Vertical Heater-Tank Setting AV
Structural
steel skid
Cold service
water
Manhole
11" × 15"
Hot water storage tank — 125 psi
or 150 psi ASME Code.
Insulated PVC tank jacket (optional)
Non-ferrous water connections
Hot service
water.
Burner Flame Heat Primary Water Hot Service Water Cold Service Water
Hot outlet
tapping
Relief
valve
Draft diverter or
barometric
control
Water
heater
Circulator
Expansion tank
Tank drain
Structural
steel skid
Cold inlet
tapping Hot water
storage tank
Hot outlet
tapping
Relief
valve
Draft diverter or
barometric
control
Water
heater
Circulator
Expansion tank
Structural
steel skid
Cold inlet
tapping
Hot water
storage tank
Thermometer
Thermometer
