Sheet2, Drawing view2, Detail view a (1 : 3) – Kargo Master Adjustable Shelf Assembly Instructions (48424) User Manual
Page 2: Drawing view4, Detail view b (1 : 10), Drawing view6, Detail view c (1 : 10)
A
2
3
4
5
DETAIL A
SCALE 1 : 3
5
4
3
B
DETAIL B
SCALE 1 : 10
C
DETAIL C
SCALE 1 : 10
Bottom
Edge
Clip in
Side panel
Step1

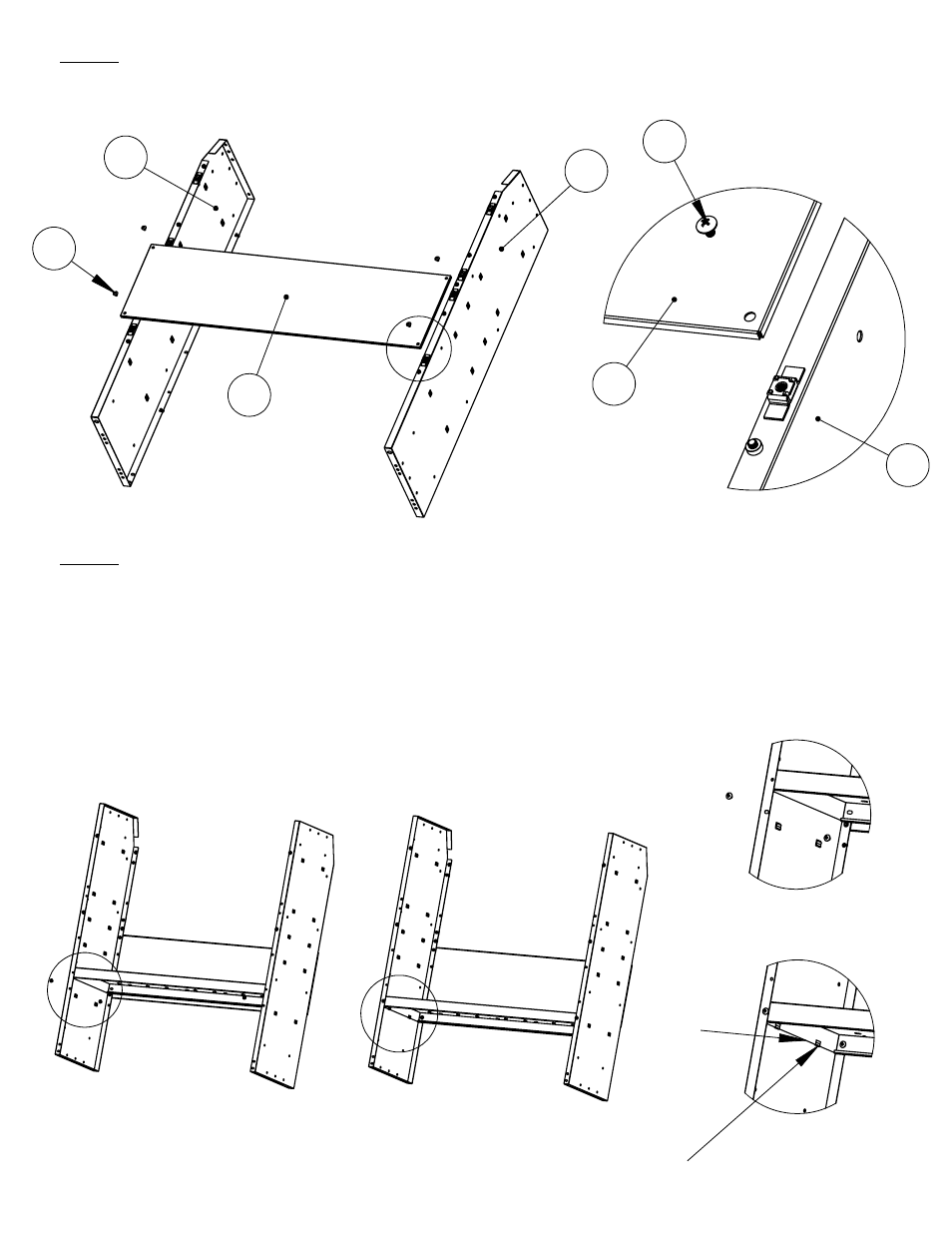

Attach Item 4(KD Back Panel) to Items 2&3(KD Side Panels) the lower position
using Item 5(1/4" Button Head Screws) loosely as shown(26" Shelf uses hex
head bolts-NOT SHOWN).
Step2
Shelves can be assembled with flanges pointing up to retain shelf contents, or
flanges pointing down to allow the installation of drawer cabinets. Decide
which option you want for each shelf before attaching it to the sides. The
beveled corner of each Shelf Side is in the back. Each Shelf, Item 1, front side
only has nuts pressed into the Shelf flange. Make sure the shelf is oriented
properly (nuts in front) before attaching. Press the shelf down firmly so that is
resting solidly and level on the lances in the shelf sides (Detail B and C). Attach
the front of the Shelf to each side using 2 x ¼” Button Head Screws.
