Billion Electric Company BILLION BIPAC-7500GL - Manual (Page 16)

Billion BIPAC-7500G / 7500GL 802.11g ADSL VPN Firewall Router with 3DES Accelerator
Chapter 3: Basic Installation
10
Configuring PCs in Windows
For Windows XP
1.
Go to Start / Control Panel (in Classic View). In the
Control Panel, double-click Network Connections.
2.
Double-click Local Area Connection. (See Figure 3.1)
3.
In the LAN Area Connection Status window, click
Properties
. (See Figure 3.2)
4.
Select Internet Protocol (TCP/IP) and click
Properties
. (See Figure 3.3)
5.
Select the Obtain an IP address automatically and
Obtain DNS server address automatically
radio
buttons. (See Figure 3.4)
6.
Click OK to finish the configuration.

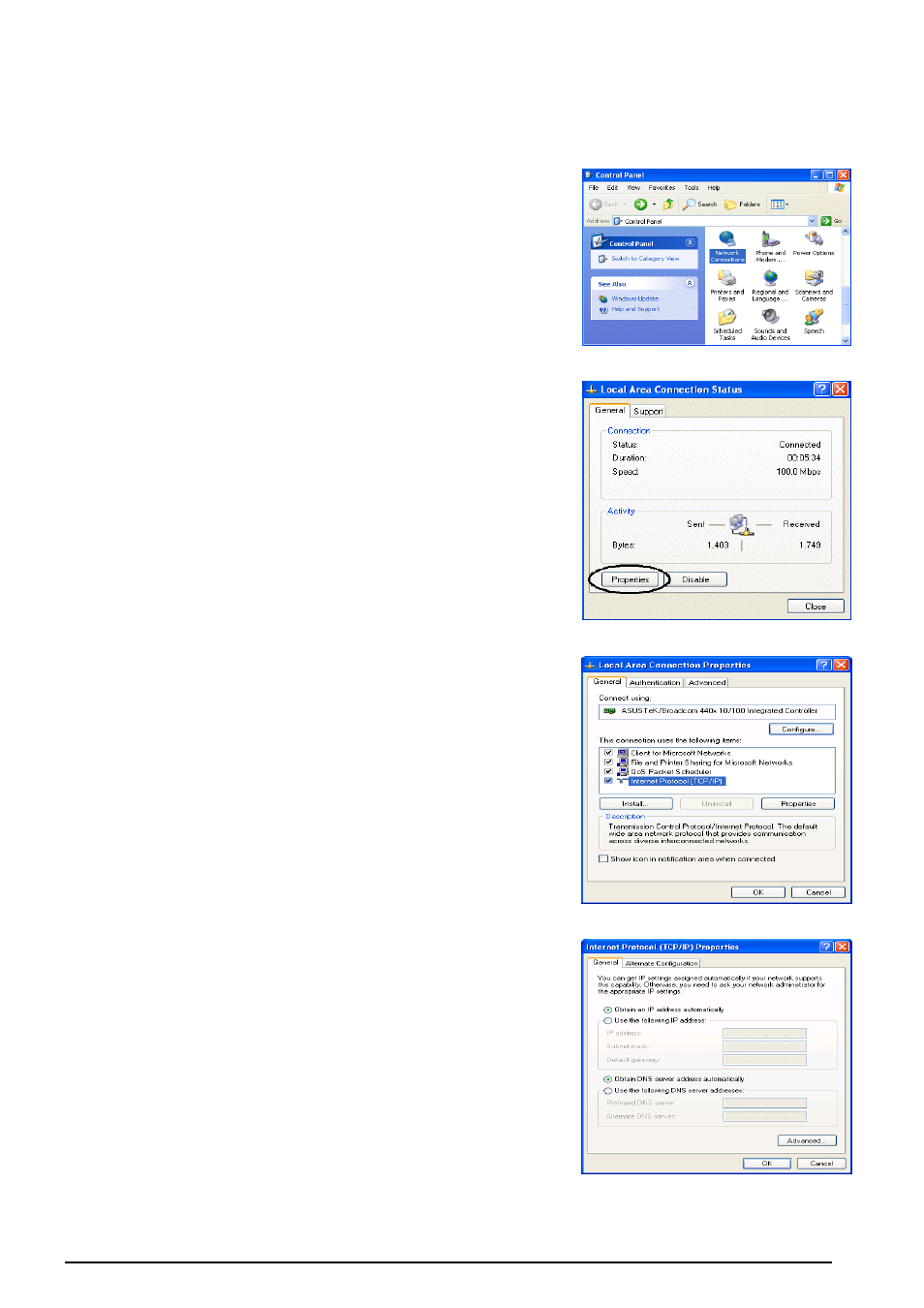

Figure 3.1: LAN Area Connection
Figure 3.2: LAN Connection Status
Figure 3.3: TCP / IP
Figure 3.4: IP Address & DNS
Configuration
