Billion BiPAC 7404VNOX/7404VNPX 3G/VoIP/802.11n ADSL2+ (VPN) Firewall Router
- 5-

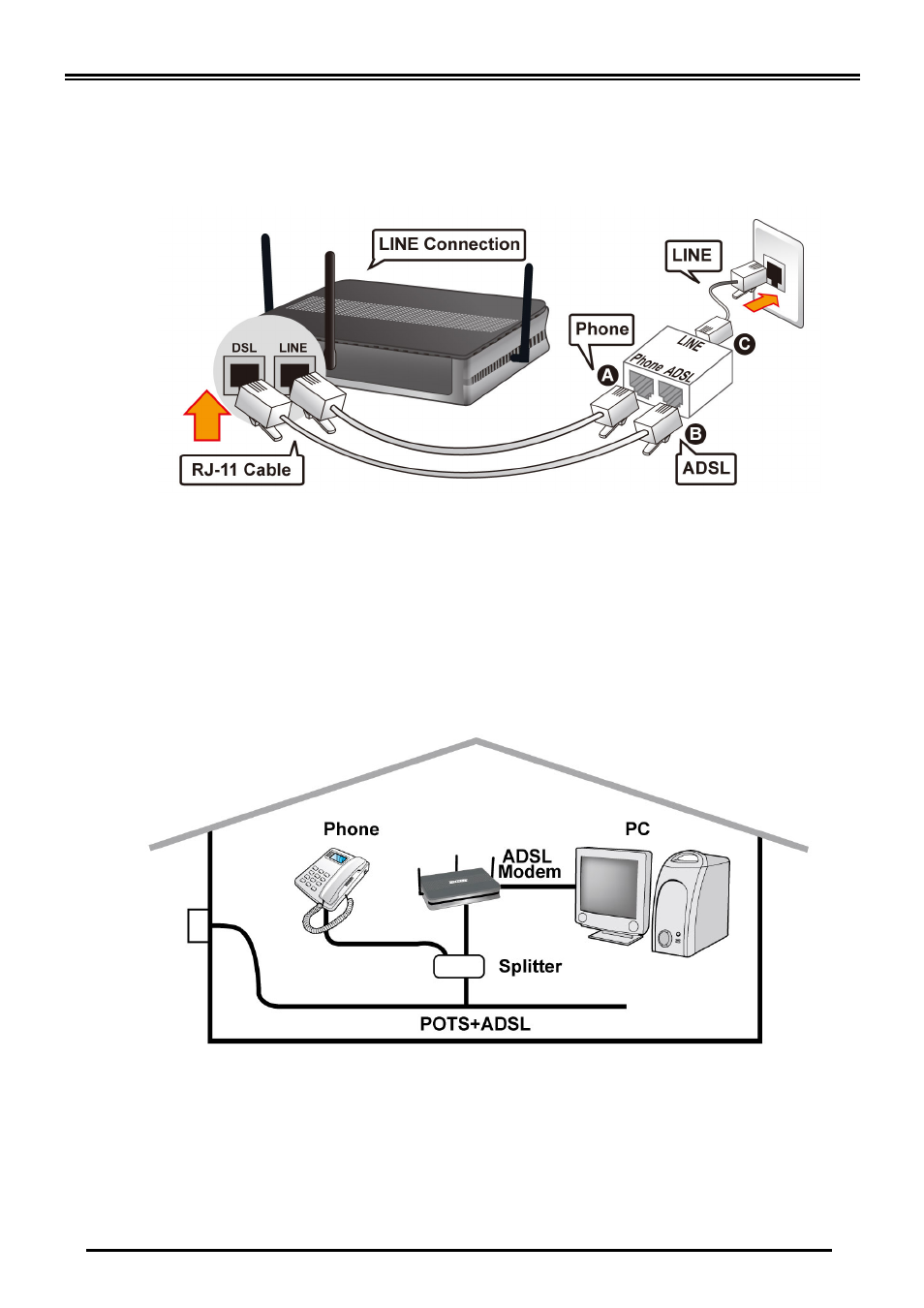

5. Line Connection
a) Connect RJ-11 cable to the router DSL port and the splitter ADSL port.
b) Connect RJ-11 cable to the router Line port and the splitter phone port.
c) Connect RJ-11 cable to the splitter Line port and the phone jack on the wall.
6. Splitter/ Micro-filter Connection
The Splitter / Micro-filter are important for ADSL installation, they help direct
high-frequency signals to the ADSL modem & low frequency signals to the
telephone or other analogue device to prevent inter-modulation distortion & get
good speed/stable ADSL sync rate.
a) Splitter connection
If the installation has only a single telephone and a single ADSL modem, then a
splitter can be employed.
