Quick Start Guide
- 2-

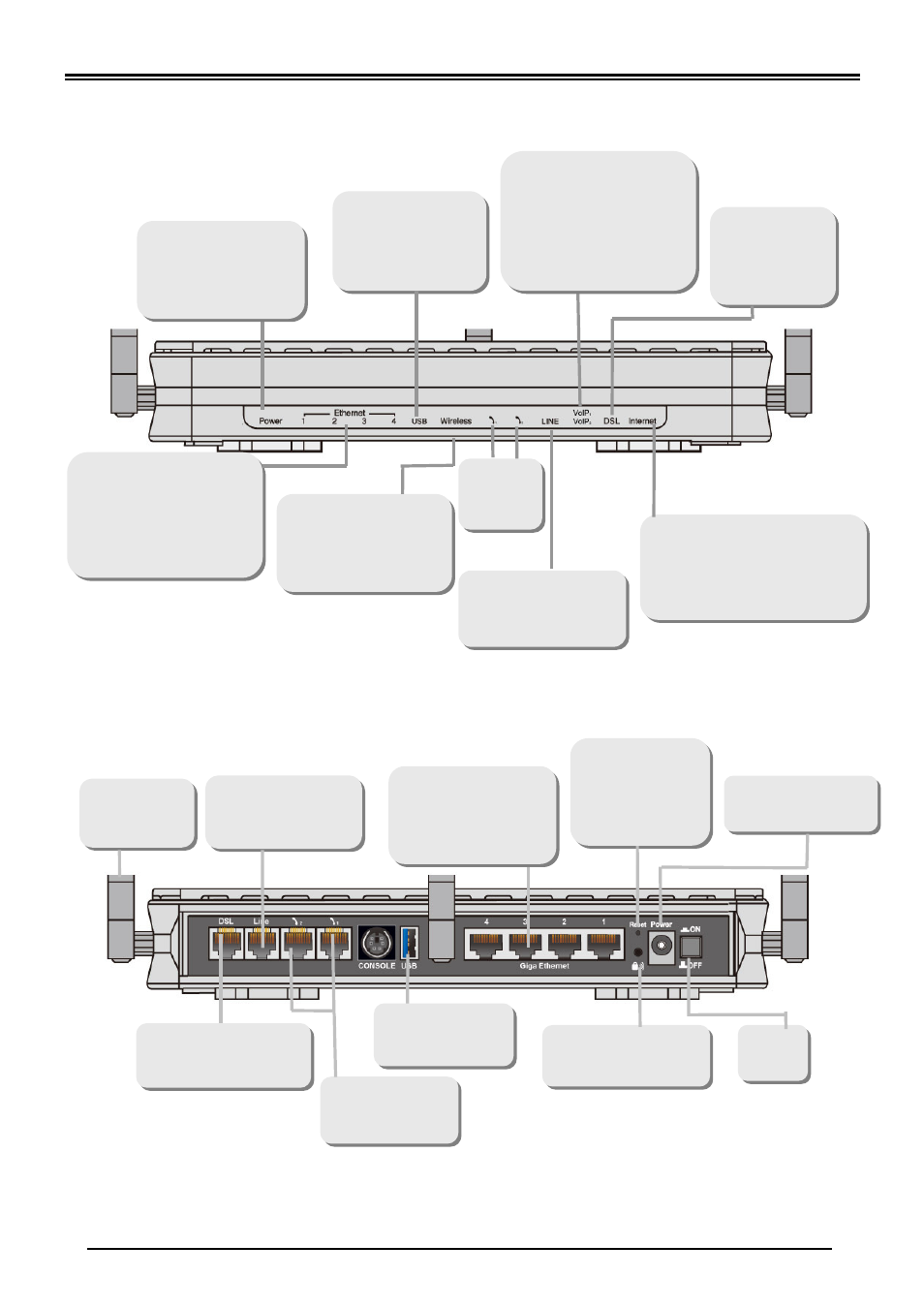

Hardware Overview
The Front LEDs
The Rear Ports
Connect it with the
supplied power
adapter.
Connect to the ADSL /
telephone network with
RJ-11 cable (telephone).
Press the RESET
button for 6
seconds and
above to restore
the factory
default settings.
Connect to a PC or an
office/home network
of 10/100/1000Mbps
with UTP Ethernet
cable.
Connect with
the detachable
antenna. Connect to the
telephone jack on the
wall with RJ-11 cable.
Connect to an
analog phone set
with RJ-11 cable.
Lit when connected to an
Ethernet device.
Lit Green for 1000Mbps;
Orange for 100Mbps; but
no light for 10Mbps.
Blink when data is being
Transmitted / Received.
Lit green
when the
phone is
off hook
Lit Green when
successfully
connected to an
ADSL DSLAM,
(“line sync”).
Lit green when a
wireless connection is
established. Flash green
when the device is
sending/receiving data.
Lit green when the
USB device is ready.
Flash when data is
being transmitted /
received.
Power
ON/OFF
switch
Lit red when WAN port fails to
get IP address. Lit green when
WAN port gets IP address
successfully. Lit off when device
in bridged mode or WAN
connection not present.
Lit green when the
inbound and outbound
calls are transmitted
through PSTN.
Lit green when SIP
registration is ok for phone
1 or orange for phone 2.
When registration for both
phone 1 & 2 are ok, both
green and orange light will
lit together.
Push to trigger Wi-Fi
Protected Setup
function.
3G/ HSDPA USB
modem backup for
Internet access
Lit orange red when
power is ON. Lit red
means system is fail.
Lit green when the
system is ready.
