ED

13

4.

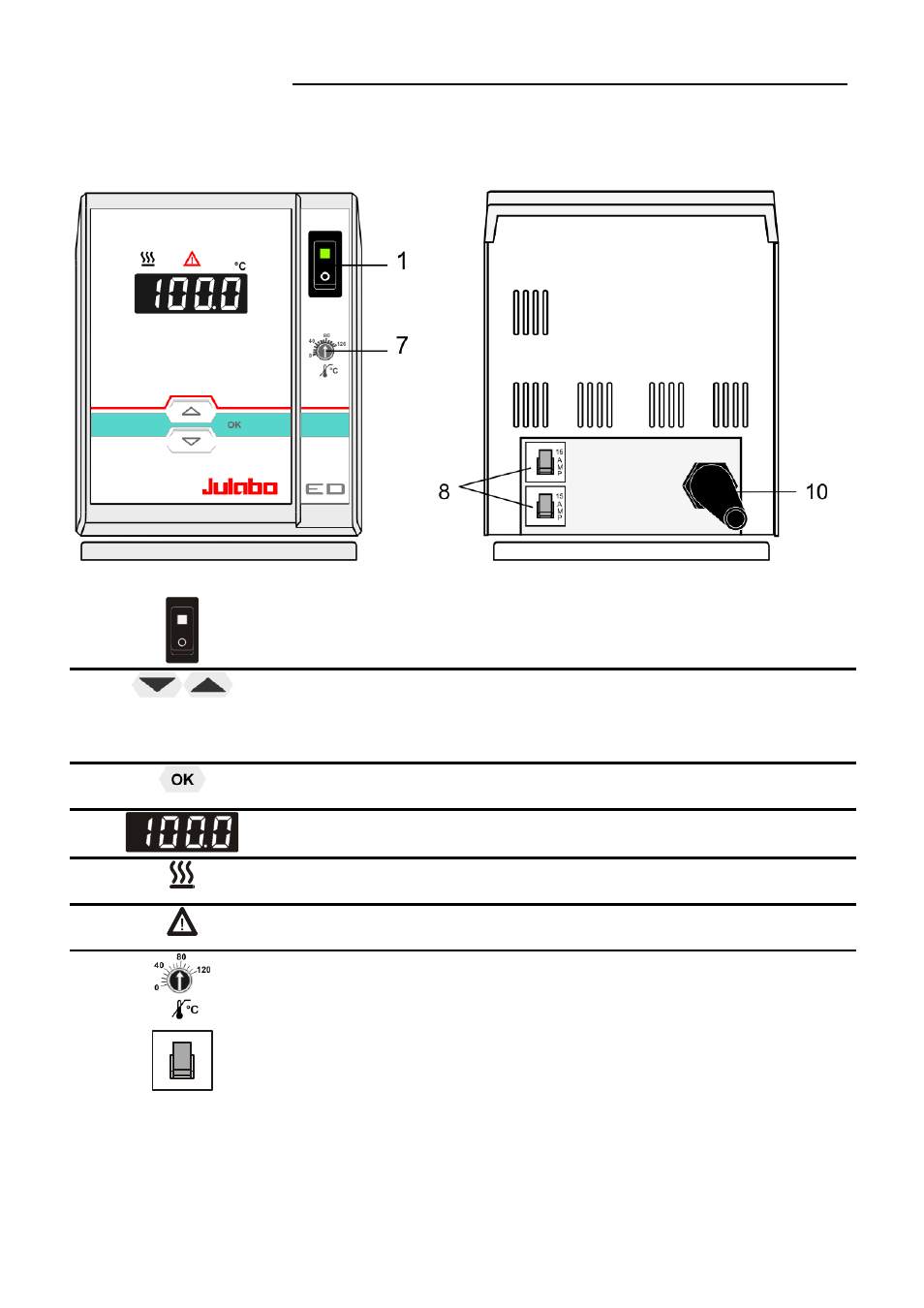

Operating controls and functional elements

Front view

Rear view

1

Mains power switch, illuminated

2

Edit keys

Setpoint increase or decrease

Press keys shortly for step-by-step changes

,

Keep the keys pressed for fast change of setpoint

3

OK key (store)

4

LED temperature display, menu indication

5

Control indicator –Heating

7

Control indicator – Alarm

7

Adjustable excess temperature protection
according to IEC 61010-2-010

8

15

A
M
P

Circulator: Mains circuit breakers (resettable) 15 A

10

Mains power cable with plug
