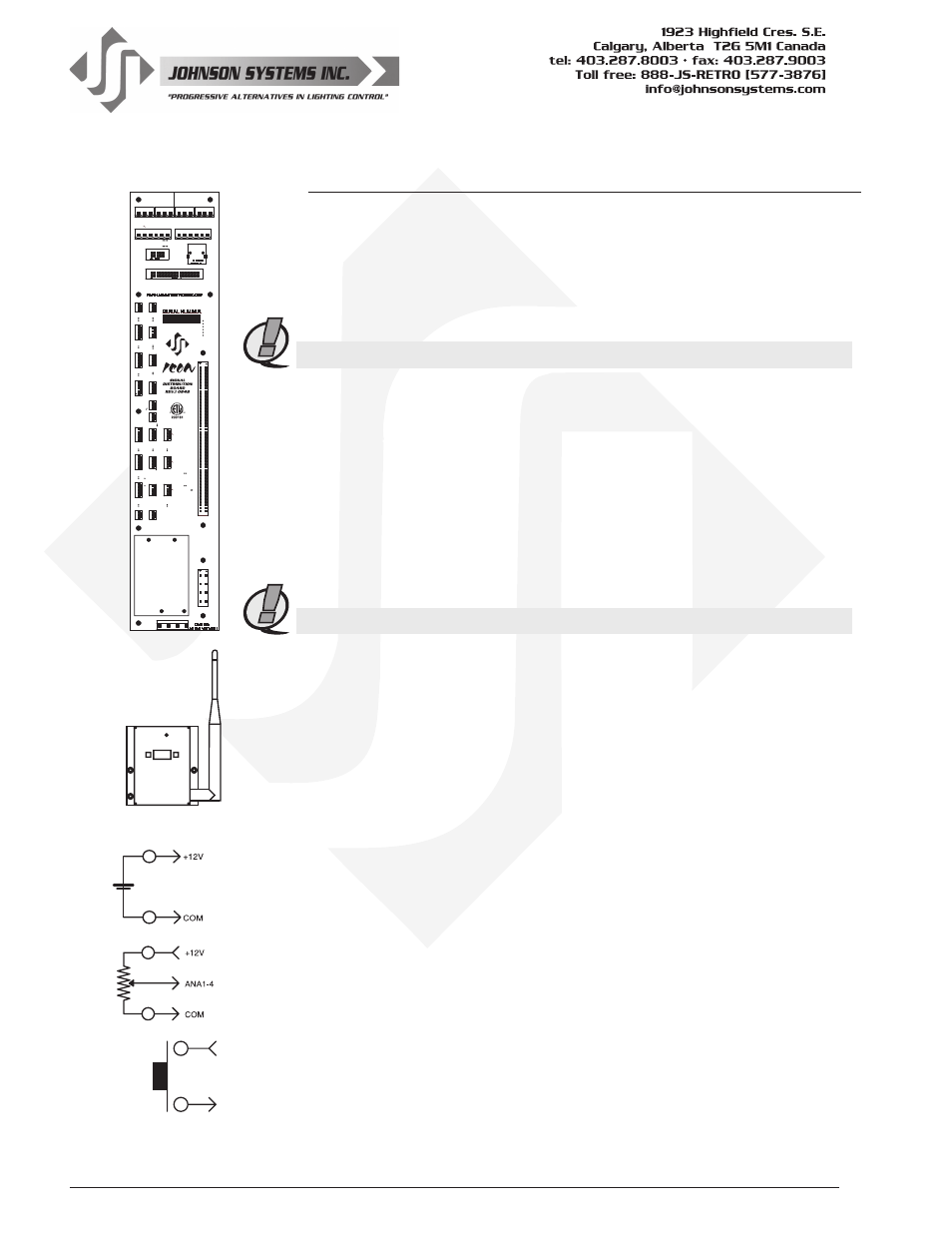

Signal Distribution Board
JS-ICON
™
Rx
MAINTAINED
NORMALLY OPEN
SWITCH CONTACT
+12V
ANA1-4
Control Input/Output
JS-ICON
™
Series dimmer racks come with a variety of control input and output
(I/O) capabilities. All I/O connections are terminated on the Signal Distribution
Board, located on the right-hand side of the dimmer rack.
Breakaway type connectors are supplied for all I/O connections.
• Use wire size #28 to #12 AWG. Strip insulation length to 0.3" (7.5mm).
• Torque terminations to 3.6 IN-LBS (0.4 NM).
NOTE: For connection use copper wire only, rated for 167°F (75°C) minimum.
Dual DMX Input and Through
• DMX A terminates to J7 and J8 connectors.
• DMX B terminates to J9 and J10 connectors.
• Complies with USITT DMX512-A (ANSI E1.11 - 2008), Standard protocol
for digital data control.
• Recommended cable is Belden 9829, 9842, Cat 5 or equivalent
(low-capacitance, twisted pair).
• Wiring must follow a daisy-chain topology.
• Maximum of 32 receiving devices on a single DMX line.
• Maximum cable length is 1,500 feet (455 meters).
• For more information, Google DMX, or visit:
NOTE: Ensure only the last (end-of-line) DMX receiving device is terminated!
Models JS-ICON
™
Rx and JS-ICON
™
Tx
Wireless DMX is optional for all JS-ICON
™
Series dimmer racks. SHoW DMX
receiver (JS-ICON
™
Rx) and transmitter (JS-ICON
™
Tx) is sourced from City
Theatrical, and has been selected for its reliability and ease of use. The JS-
ICON
™
Rx is specifically designed for easy adaptation to all JS-ICON
™
products.
The JS-ICON
™
Rx comes complete with a wiring harness and mounting
hardware. For more information visit:
+
12VDC Power Supply Output
• A regulated +12VDC power supply is available for powering external
devices.
• Terminate on +12V and COM of J12 connector.
• External devices should not exceed the maximum combined current draw
of 200mA.
0-10VDC Analog Inputs or Load Shed Contact Inputs
• Four (4) analog inputs terminate on J12 connector.
• AN1=Analog Input 1, AN2=Analog Input 2, AN3=Analog Input 3,
AN4=Analog Input 4.
• Inputs can be configured for normal or load shed mode of operation.
• Inputs can be patched to any combination of dimmer output circuits.
• Programmed in the “ANA MODE” and “ANA PTCH” menus. See page 22 for details.
