6.02 Breakout Balun

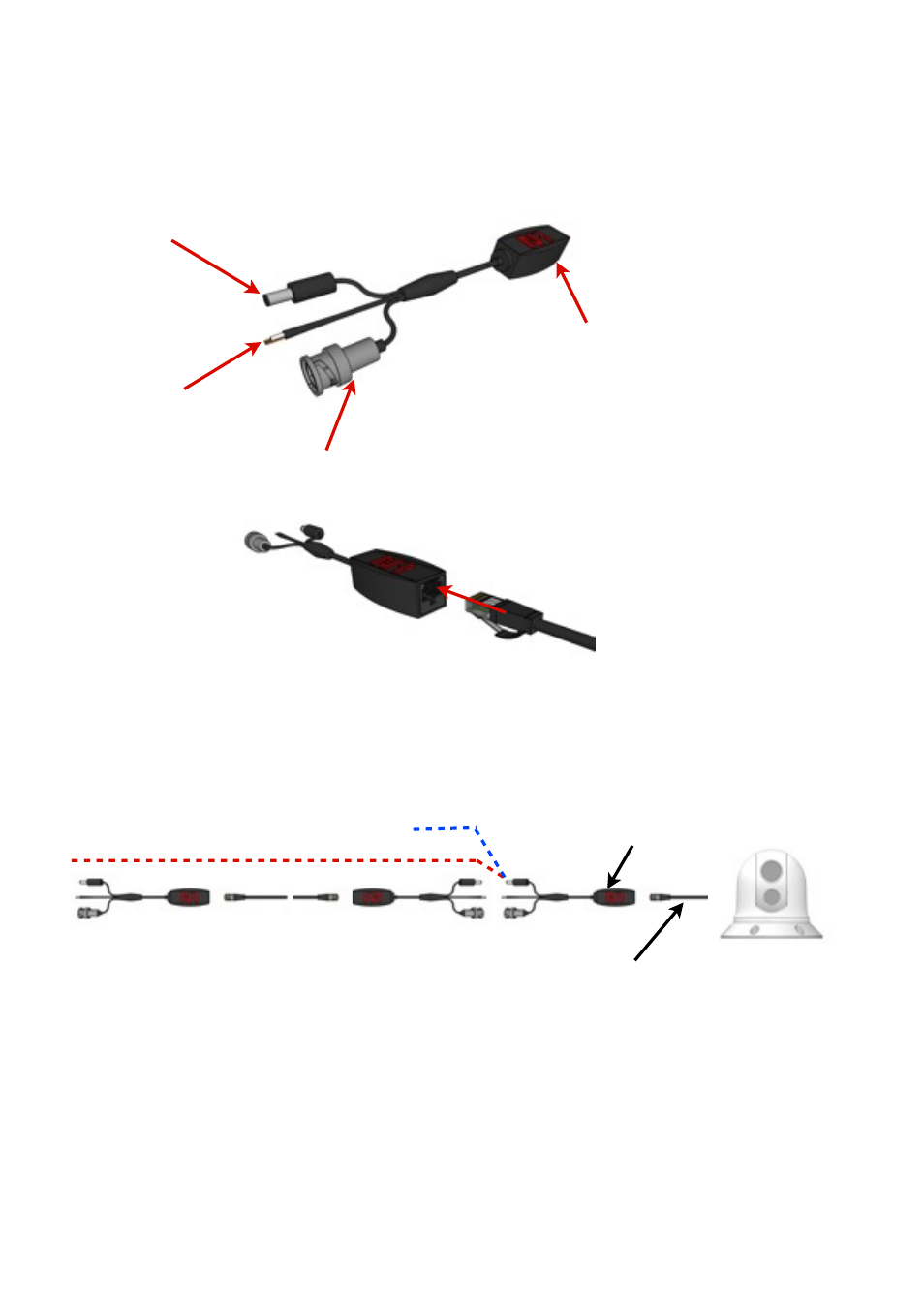

The 60ft CAT5 cable from your NightRunner terminates in the supplied Breakout Balun thatʼs pictured below.
6.03 Details on Extending Cable
As described in section 5.07 Extending Cable Length, if you need to extend the cable run, you must not run power along the CAT5
cable . Either apply the power local to the end of the 60ft cable supplied or run the power separately. See diagram below:
Option 1:
The IRIS295EXT-XX kit contains all you need to extend the cable run. The XX in the part number denotes the desired length in multiples
of 5 meters. The cable itself is CAT5 cable with an additional 2 cores for power. All the necessary connectors and adapters are provided
to enable plug and play installation.
Option 2:
Alternatively, it might be possible to connect to a power source close to the end of the 20m CAT5 supplied. In this instance, use the
extension kit for the video and data signals.
V2.05 Iss 17-07-14: 12
Power Supply
2.1mm DC Barrel Connector.
RS485 Data Wires
Connect to your IRIS595 Controller or
other control option.
Video Output
75Ω 1VP~P Composite Video
Input from Camera
CAT5 (B) RJ45 Connector
NightRunner
20m NightRunner Cable
Breakout Balun
Extension Kit
(2 x Baluns, CAT5+2 Cable, BNC~BNC
Thru-Adapter, Screw-On DC Power Jack.)
Option 1: Extension Kit
Option 2: Power from Local Source
RJ45 Connector
Connect into socket.
