FLX-88 Installation Guide
15

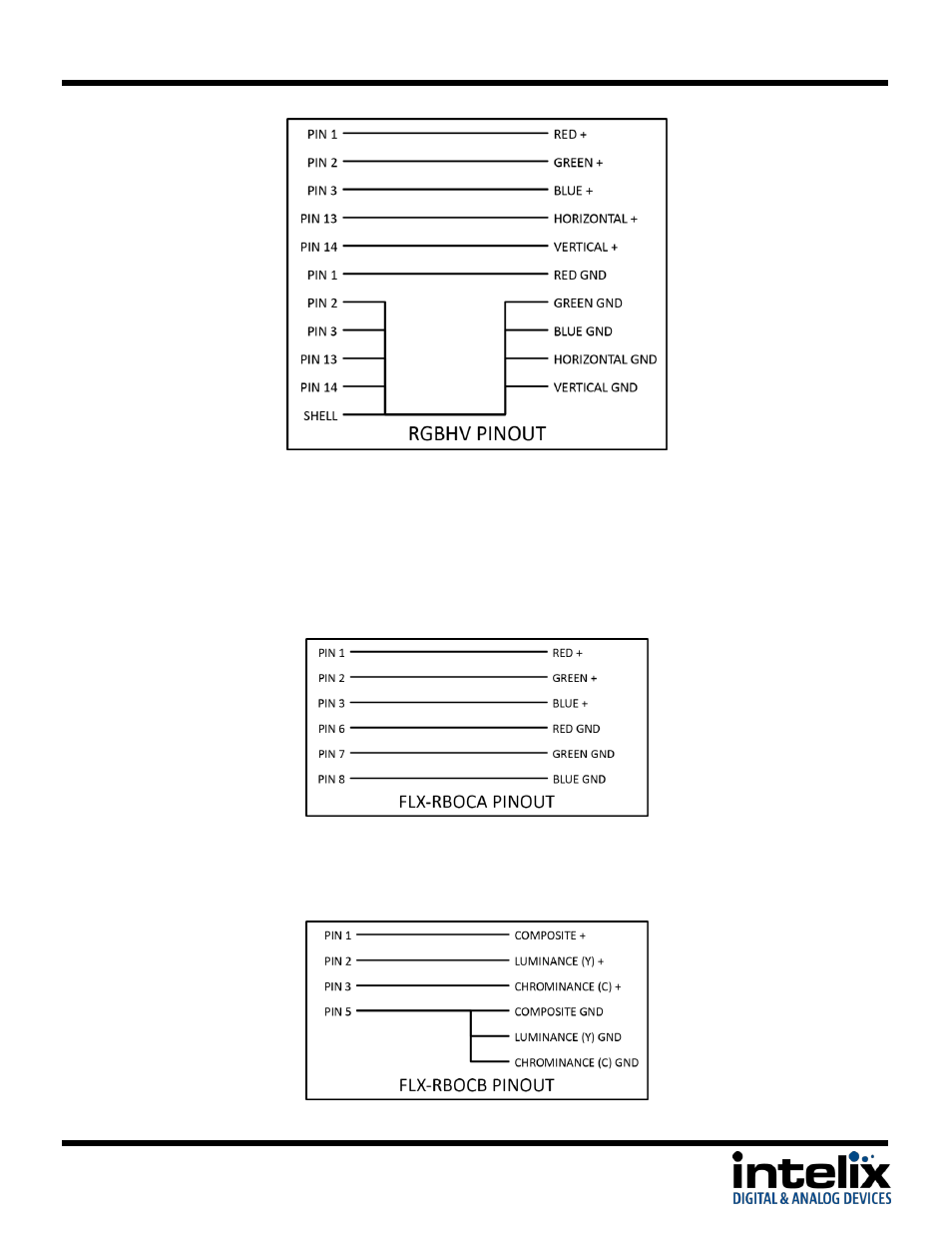

For component video, S-video, and composite video, a VGA to breakout cable is recommended. The FLX-
RI4 comes with two FLX-RBOCA (component video breakout cable) and two FLX-RBOCB (composite and
S-video breakout cable) cables. See FLX-RI4 Specific Commands on page 20 to define the operation of
the inputs.
-
Component video, RGsB, and RsGsBs connect to the appropriate red, green, and blue
connections on the FLX-RBOCA cable.
-
S-video connects to the purple connector on the FLX-RBOCB cable.
-
Composite video connects to the yellow connector on the FLX-RBOCB cable.
