Single Zone Gas Monitor
12
P/N: 3015-4256 Rev 13
2.5. Interior Schematic (Ammonia AGM)

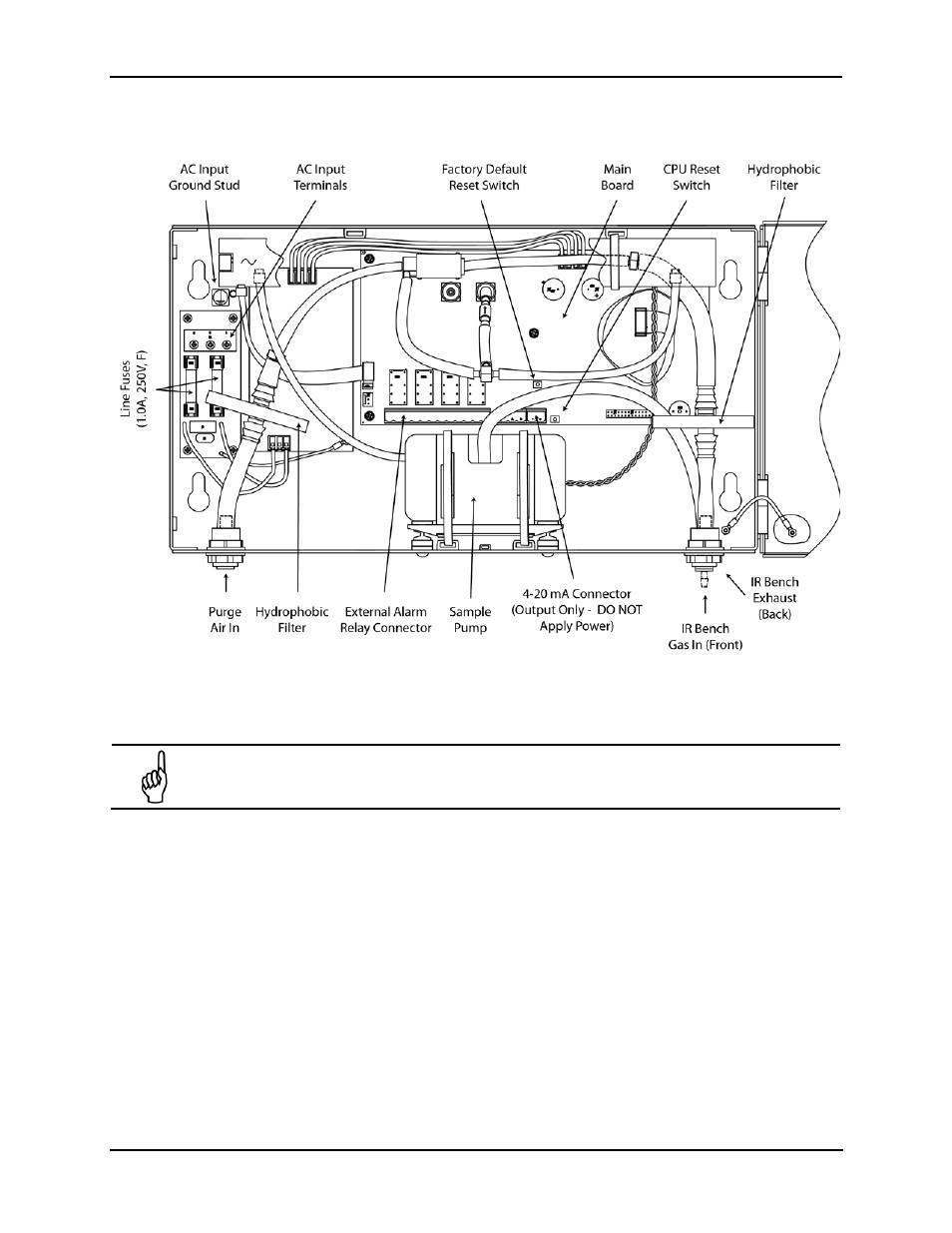

Figure 2-6. Interior Assembly of the Single Zone Ammonia Gas Monitor
NOTE: The plastic cable tie surrounding the pump is to ensure safe handling during
shipping. Please remove before operating. If the unit gets shipped to Bacharach for
service, reinstall a plastic cable tie around the pump to prevent damage during shipping.
*For IR Bench Gas In/Out, see SZ bottom view drawing on page 8.
