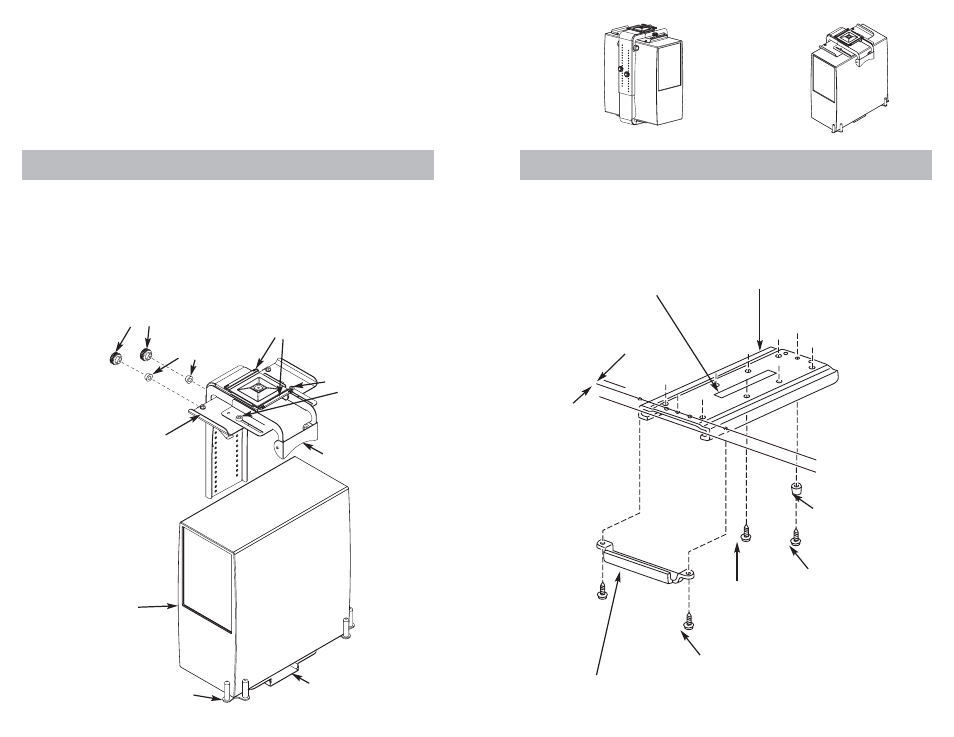

3. Install the Track
Using tape, affix Track to underside of desk. Drill holes. Using screws
provided, attach Track and Rear Rubber Stopper. Making sure plastic glides
are in place, slide CPU Holder onto Track. Attach Front Bumper to Track.
Mounting
Tape
Track
1/2” Back
from Edge
Rear Rubber
Stopper
5/8” Tapping
Screw (1)
5/8” Tapping
Screws (8)
5/8” Tapping
Screws (2)
Front
Bumper
2. Install CPU into Holder
Place CPU on Bottom Support. Loosen Side Support and fit Top Support
tightly over CPU. Fasten with Knobs or Security Nuts as necessary.
Adjust Side Support so that it fits securely against CPU and tighten Knobs
or Security Nuts. For CPU Security installations, position Security Brackets
tightly against corners of CPU (as shown) and tighten Security Nuts
underneath Bottom Support.
Glides
Top Support
Security
Nuts
Side
Support
Bottom
Support
CPU
Security
Nuts
Knobs
Optional
Security Brackets
or
Knobs
or
2 of 2
CPU555 CPU555SEC
CPU555, CPU555SEC
